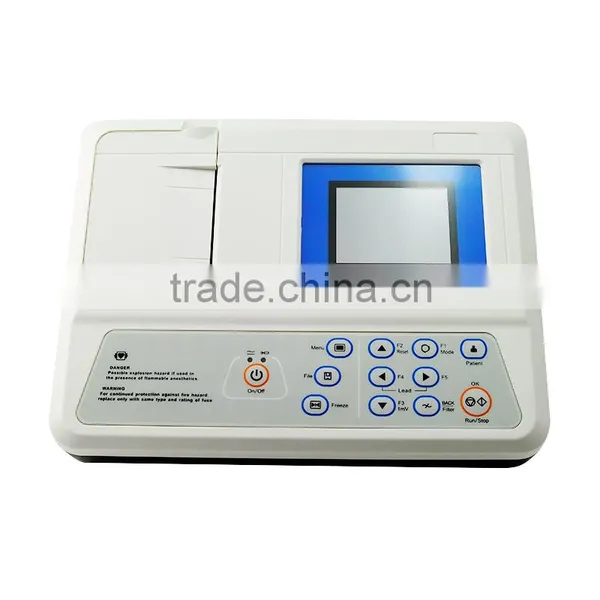

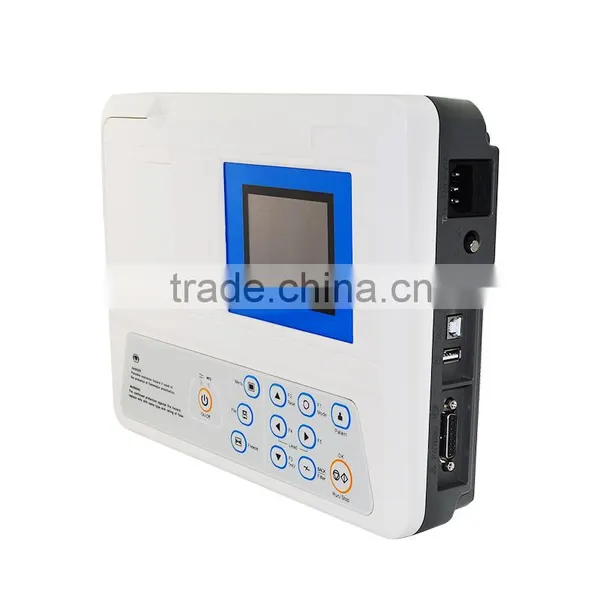

12 Lead Resting 5 Inch 3 Channel Color LCD ECG Machine Electrocardiograph EKG-903A CE ISO Approved

FOB Price

US$ 400 - 460 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other		Brand Name	Brandnew
Model Number	EKG-903A		Place of Origin	Beijing, China

ECG Machine Electrocardiograph

Features:

Specification:

Safety standard	IEC60601-1 class I, type CF
Lead	Standard 12 Leads, Lead change automatically
Resolution	12 bit / 1000Hz
Operation mode	Manual/Auto/Analysis modes
Filter	AC, EMG filter
Drift filter	Anti-drift system
Input circuit	Floating; Protection against Defibrillator effect
CMRR	>100dB (with filter)
Input circuit current	<0.1μA
Input impedance	≥50ΜΩ
Calibrating voltage	1mV±3%
Frequency response	0.05Hz~160Hz (IEC)
Time constant	>3.2seconds
Noise level	≤15Vp-p
Threshold	≤20μV
Sensitivity	Auto 2.5, 5, 10, 20, 40mm/mV

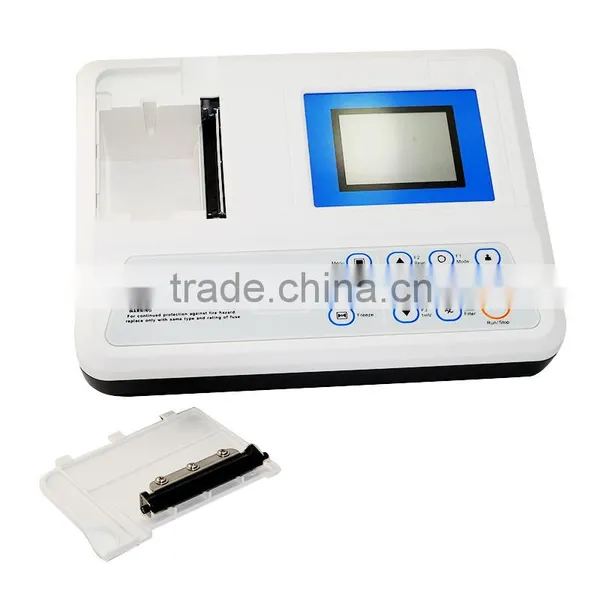

Recording system	High resolution thermal printer
Paper speed	25, 50mm/s±3%
Recording paper	112mmx20m, roll/fold paper
Power supply	AC: 220V / 110V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (2200mAh)

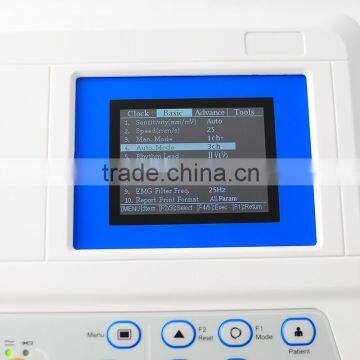

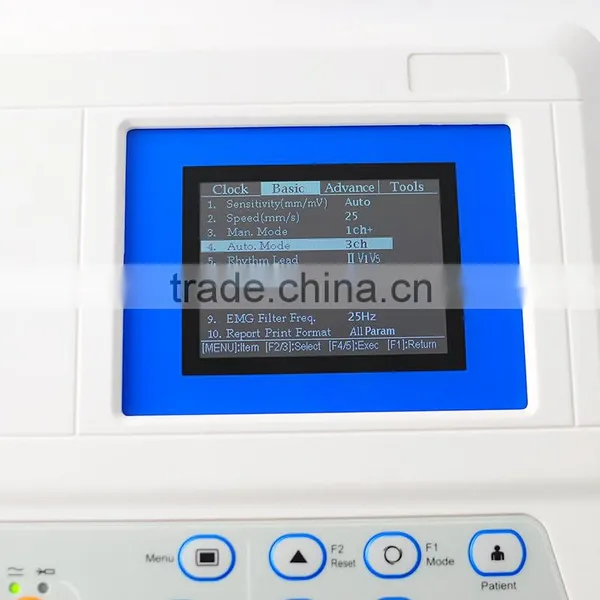

LCD display	320x240 graphic, 5 inch Color LCD
Dimensions	285×265×72mm
Weight	2.5kg

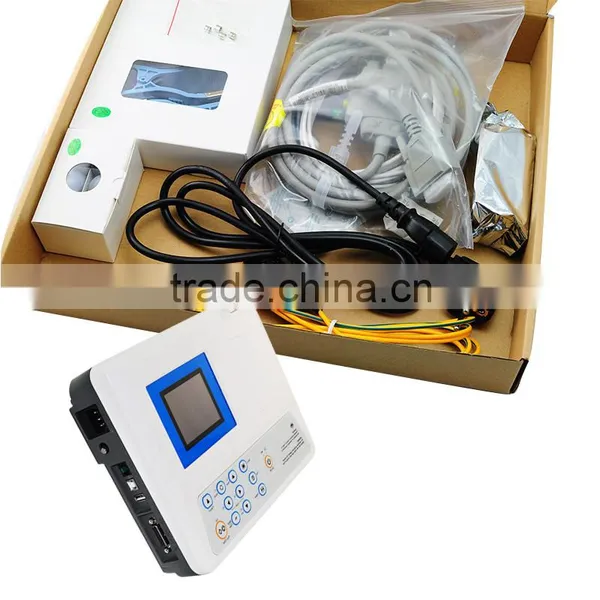

Packaging & Shipping
