Home > Products > ECG > Carejoy 100% Guaranteed Resting 12 Leads Single Channel Electrocardiograph ECG Machine EKG-901-2 With Thermal Recorder
Carejoy 100% Guaranteed Resting 12 Leads Single Channel Electrocardiograph ECG Machine EKG-901-2 With Thermal Recorder
- Beijing
- Credit Card
You May Like
-
Resting 12 Leads Handheld Single Channel Electrocardiograph ECG Machine EKG 80A Monitor
-
On Sale Resting 12 Leads Hand Held Single Channel Electrocardiograph ECG Machine EKG With Good Price
-
CE And ISO Approved Popular Handheld One Channel Electrocardiograph ECG Machine
-
CE ISO Approved Resting 12 Leads Single Channel Electrocardiograph ECG Machine EKG-901-2 With Battery
-
Resting 12 Lead One Channel Electrocardiograph ECG/EKG Machine EKG-901-2 CE ISO Approved
-
CE Approved 3.5 Inch Color Electrocardiograph / Three Channel Cheap Price of Ecg Machine
Product Details
| Type | Examination Therapy Equipments | Brand Name | Carejoy | |
| Model Number | EKG-901-2 | Place of Origin | Beijing, China |
Product Description

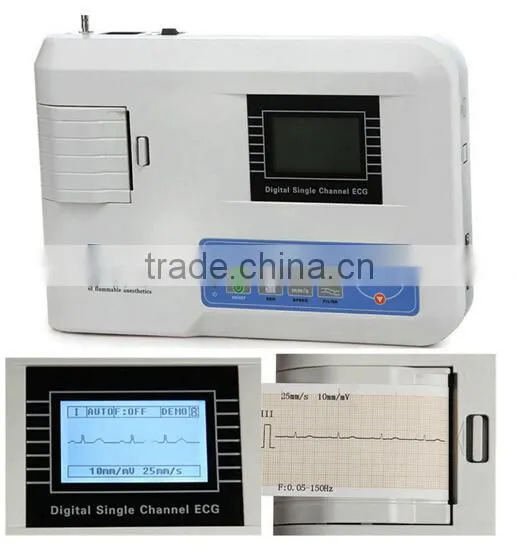

Portable Digital 1-channel Electrocardiograph ECG Machine EKG
Features:
High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform
One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
CMRR | >80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System | Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply | AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.
We aims to provide the costeffective, reliable performance products. By collaborating with famous universities
and organizations, the company has designed and produced several types medical equipments in China market.
The quality management system of our company is ISO13485 certified.
Our products are also CE certified by MedCert Germany CE 0482.
Our company has a considerable market share in China domestic market and a growing increase in international market.
We aims to build good business relationships with more international distributors and customers sincerely.
We assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices
and rapid & effective customer service.
