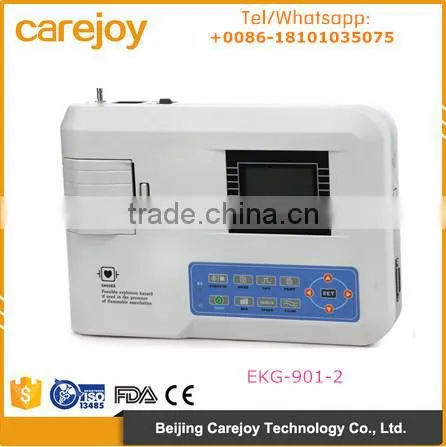

Help CenterCE ISO Approved Resting 12 Leads Single Channel Electrocardiograph ECG Machine EKG-901-2 With Battery
Related Products
-
Resting 12 Lead One Channel Electrocardiograph ECG/EKG Machine EKG-901-2 CE ISO ApprovedUS$ 240 - 295MOQ: 1 Set -
CE Approved 3.5 Inch Color Electrocardiograph / Three Channel Cheap Price of Ecg MachineNegotiableMOQ: 1 Set
-
Digital Three Channel Electrocardiograph EKG-903A3 ECG Machine Wither Printer PaperNegotiableMOQ: 1 Set
-
Best Price Digital 3 Channel Electrocardiograph EKG-903A3 ECG Machine With High QualityNegotiableMOQ: 1 Set
-
Newest Portable 12 Channel Full Keyboard 7 Inch Color Digital Electrocardiograph ECG EKG Machine With Chest Limb ElectrodesUS$ 800 - 900MOQ: 1 Set
Portable Digital 1-channel Electrocardiograph ECG Machine EKG
Features:
High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform
One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
CMRR |
>80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System |
Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply |
AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
Send Inquiry to This Supplier
