Help CenterCarejoy Portable 7 Inch Display 12 Lead Resting 12 Channel Electrocardiograph ECG Machine EKG 1212C
Related Products
-
7 Inch Backlight Display 12 Lead 12 Channel Electrocardiograph ECG Machine EKG 1212CUS$ 680 - 780MOQ: 1 Set -
3 Channel ECG Machine 3.5 Inch Monitor Digital Electrocardiograph EKG-903B Optional PC SoftwareUS$ 350 - 800MOQ: 1 Set
-
Cheap Price Digital 3 Channel ECG Machine Electrocardiograph 7 Inch Display EKG 903A3 OEM BrandUS$ 300 - 450MOQ: 1 Set
-
12 Lead Resting 5 Inch 3 Channel Color LCD ECG Machine Electrocardiograph EKG-903A CE ISO ApprovedUS$ 400 - 460MOQ: 1 Set
-
Carejoy 100% Guaranteed Resting 12 Leads Single Channel Electrocardiograph ECG Machine EKG-901-2 With Thermal RecorderUS$ 240 - 295MOQ: 1 Set
Features:
Backlit high resolution 480 x 800 7 inch color screen display.
12 channel ECG waveform simultaneously,Time,Heart-rate.ect
Operation Mode:automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart).
Printing Output:3+3 channel; 6 channel; 6+1 channel; 12 channel; 12+1 channel
216mm*20M thermal paper in rolls
200 reports in built-in memory, support external SD card.
report presentation,review and re-printing.
Recording sensitivity:1.25,2.5,5,10,20,40mm/mV±2%
14.8V 4400mA Li-poly rechargeable battery pack (DC)
Technical Specification:
Lead standard |
12 STANDARD or CABRERA leads |
Calibrating voltage |
1mV±2% |
Frequency response |
0.05~150Hz |
Patient current leakage |
<10μA |
Noise level |
<15μVp-p |
Printing speed |
5; 6.25; 10; 12.5; 25; 50mm/s±3% |
Input dynamic |
±500 mV |
Recording sensitivity |
1.25,2.5,5,10,20,40mm/mV±2% |
CMMR |
≥120dB |
Input impedance |
≥50Mohm |
Input circuit current |
≤0.1μA |
Input circuit |
Defibrillation protection |
Power Supply |
220V±10%, 50Hz±2%, 75VA |
14.8V 4400mA Li-poly rechargeable battery pack (DC) | |
Report storage |
200 reports in built-in memory, support external SD card |
report presentation,review and re-printing. | |
Filer |
Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) |
AC filter: (50Hz or 60Hz, -20dB) | |
Drift filter: (0.5Hz,-3dB) | |
Machine weight |
3.9kg |

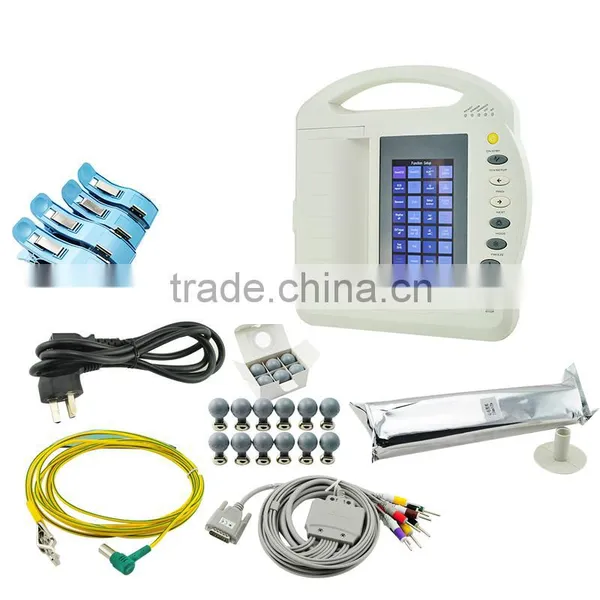

Packing List:
Electrocardiograph ×1
Banana type ECG cable×1
Chest electrodes×6
Limb electrodes×4
Power cable×1
Grounding cable
