gold supplier optical fiber cable for maximum signal transfer
Product Attenuation
|
2-96 fibers |
98-288fibers |
||
Max. Tension (N) |
Short-term |
1500 |
3000 |
|
Max. Tension (N) |
Long-term |
600 |
1000 |
|
Max. Crushing Resistance (N/100mm2) |
1000 |
|||
Temperature range(°C) |
-40°C-- +70°C |
|||
Min. Bending Radius(mm) |
Install |
20D |
||
Min. Bending Radius(mm) |
Static |
10D |
||
Optical Characteristics
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20°C) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
|

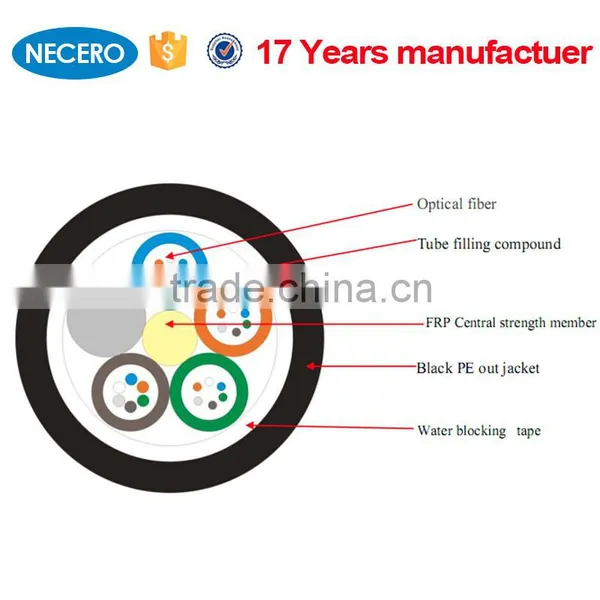

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
FAQ
1. Are you the real factory?
Yes,we are the real factory with 15 years’ history.
2. What is your fiber brand?
Fiber brands including : NECERO,YOFC,FiberHome
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
Contact Us
Add: Sungang East Road, Sungang Street, 518000,Shenzhen,Guangdong,China.
Web:

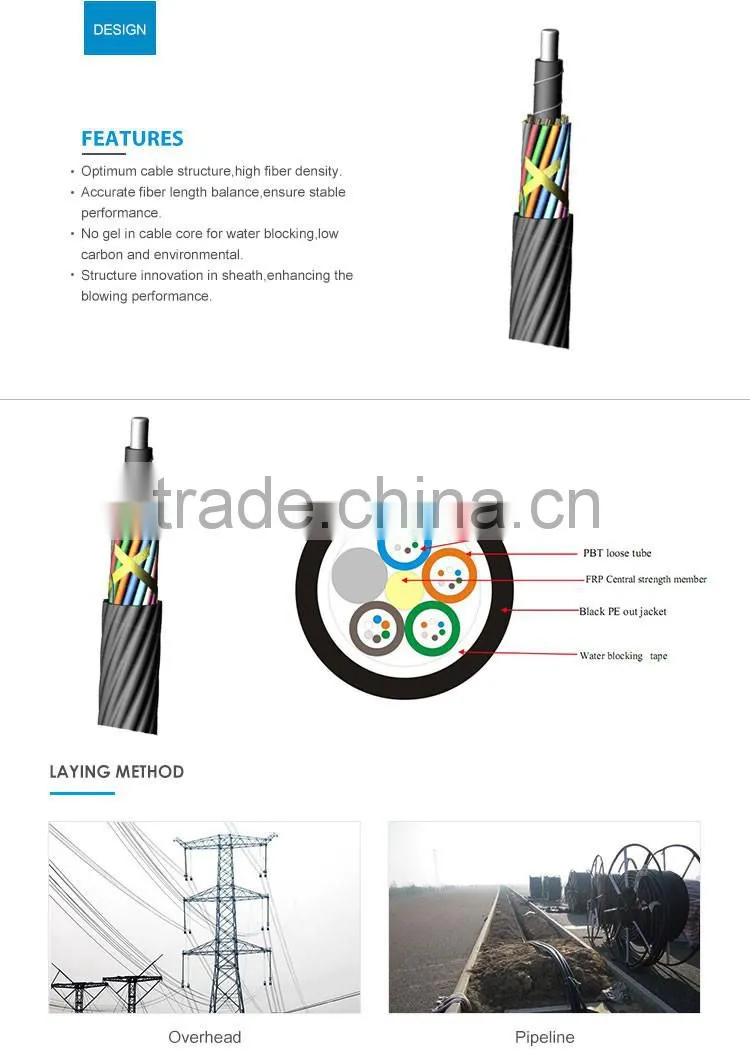

Features and Benefits
Optimum cable structure, high fiber density.
Accurate fiber length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental.
Structure Innovation in sheath, enhancing the blowing performance.
