Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Duplex Optics Fiber Cable

Duplex Optics Fiber Cable

Name: Duplex Optics Fiber Cable
Brand: NECERO
SKU: 135072089
Availability: InStock

US$ 0.1 - 5 MOQ: 10 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

NECERO

Model Number:

GJFJV

Contact Supplier Request Quote Chat Now

Shenzhen Necero Optical Fiber And Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen yantian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name NECERO

Model Number GJFJV

Type Coaxial

Specifications

duplex cable
2 fiber optic cable
LSZH fibre optical cable
ISO9001:2008 TLC factory

Our customers

1.Our Philosophy

2.Our Customer

3.Description

2 fiber, Figure 8 structure,Φ900μm orΦ600μm Tight buffer fiber, Aramid yarn, PVC Jacked

Standards

Comply with Standard YD/T 1258.3-2003,ICEA-596,GR-409,IEC794,etc;and meet the requirements of UL approval for OFNR and OFNP

Cable code

	ZCC-III	ZCC-II	ZCC-I
Cable Diameter(mm)	(6.0±0.4)×(2.8±0.2)	(4.2±0.4) ×(2.0±0.2)	(3.4±0.4) ×(1.6±0.2)
Cable Weight(kg/km)	15.6	10.5	7.3
TBF diameter	900±50μm	900±50μm	600±50μm

Mechanical Characteristics

Tensile Strength	Long term	100N	100N
	Short term	200N	200N
Crush Resistance	Long term	200N/100mm 100N/100mm
	Short term	1000N/100mm 500N/100mm
Bending Radius	Dynamic	20*H (Cable Axis)
	Static	10*H (Cable Axis)

Optica Characteris

Storage /Operating Temperature:-40°Cto+70°C

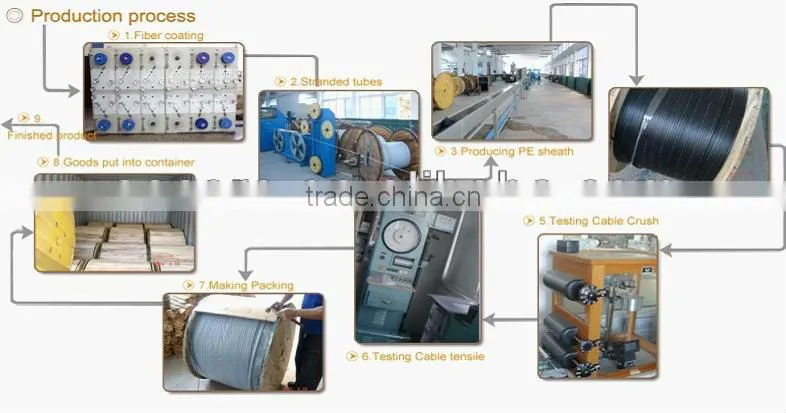

4.Processing&factory

5.Packing%Transport

All the finished optical fiber cables were packed by fumigated standard export drum to protect the cable for long distance shipping with easily container loading,Drum size would be according to customers' requirement.
