YD SERIES

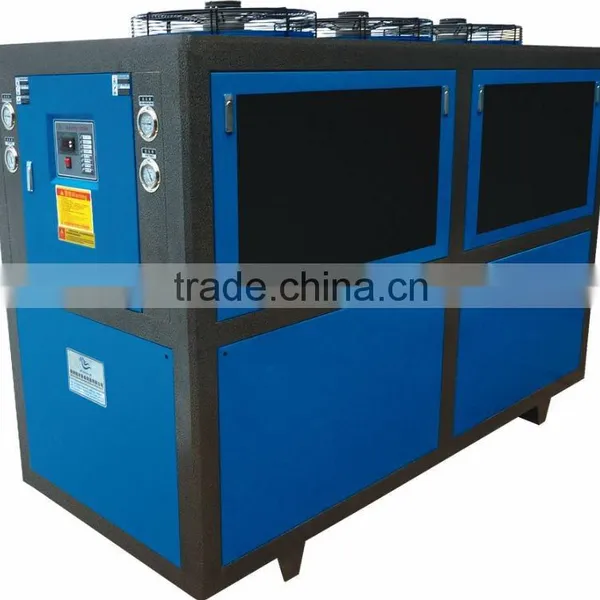

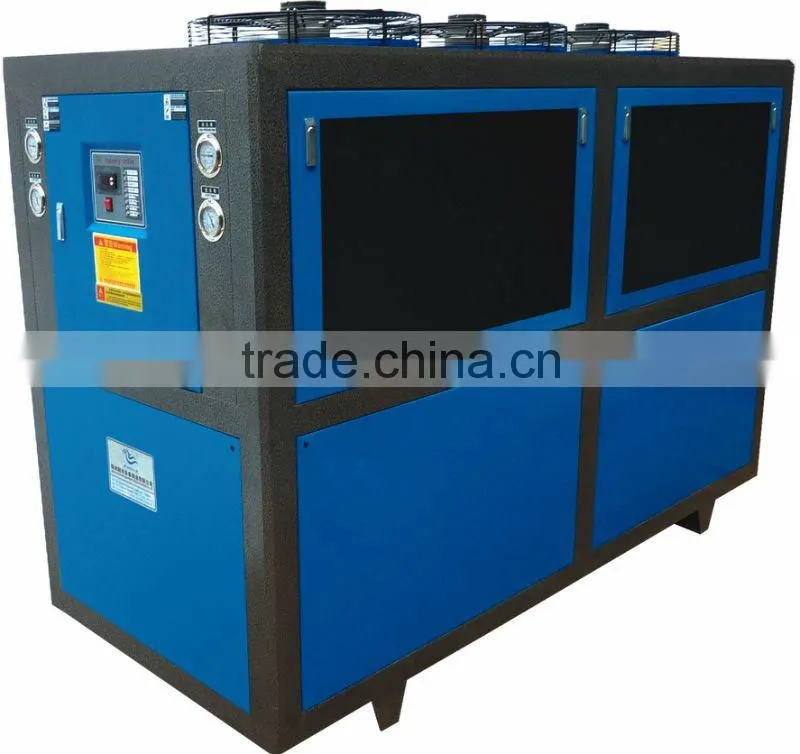

PLASTIC MOULD CHILLER
1> The device can cool the water temperature from 5 to 35°C
2> The low cooling temperature can be customized and per customer’s needs the micro computer controls the system running and the temperature can be precise to 1°C
3> The overload protection device is used for compressor and pump to prolong the service life.
4> The multi protection device ensures the system safety.
5> The water tank is made from the stainless steel and has a heat insulation layer. Freeze pipelines have the insulation layer to improve freeze efficiency. The shell and tube condenser has a high efficiency of heat exchange.
6> Low speed and noise blower fan.
7> The blower fan stops along with the compressor, thus effective electric energy saving.
Model |
Chilling capacity |
power |
Chilled water pump power |
Max. flow rate of chilled water |
Tank capacity |
External Dimensions |
Weight |
|
|
Kcal/Hr |
KW |
HP |
KW |
L/min |
L |
MM |
KG |
Air Cooled Chiller | ||||||||
AC03 |
6,800 |
2.25 |
3 |
0.37 |
90 |
45 |
900x520x800 |
165 |
AC05 |
11,180 |
3.75 |
5 |
0.37 |
90 |
50 |
1000x680x1250 |
195 |
AC08 |
17,888 |
6 |
8 |
0.75 |
200 |
120 |
1300x700x1300 |
410 |
AC10 |
22,360 |
7.5 |
10 |
0.75 |
200 |
120 |
1300x700x1300 |
450 |
AC15 |
33,540 |
11.25 |
15 |
1.5 |
360 |
200 |
1900x900x1600 |
670 |
AC20 |
44,720 |
15 |
20 |
1.5 |
360 |
250 |
2100x1000x1700 |
780 |
AC25 |
55,900 |
19 |
25 |
2.2 |
650 |
300 |
2100x1000x1700 |
860 |
Product specifications are subject to change without notice. | ||||||||
