Specifications
reverse osmosis water treatment equipment1.unattended
2.high desalting rate
3.wide application range
4.low operation cost
CE /ISO approved 2000L/H reverse osmosis water treatment equipment

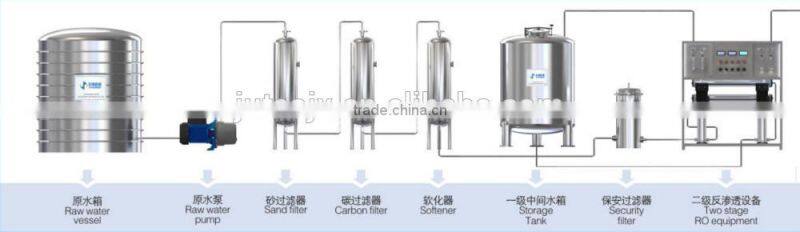

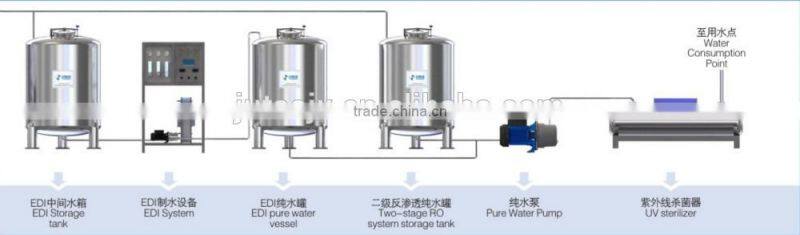

water treatment equipment flow chart
⇓
Performance and Features
◊ Automatic switch on when low water level, and switch off when high water level.
◊ Pure water tank with cone type structure,a discharge valve at the bottom, easy to clean and disinfect exhausted.
◊ China Top Brand or world famous brand electrical, switch and valve systems.
◊ Built-in soft-start system to avoid damage to the expensive membrane when starting.
◊ Reverse Osmosis desalting rate≥99%,machine desalting rate≥97%. 98% of organic matters,colloids and
bacteria can be removed.
Every part of the ro water filter device
NO. |
Commodity name |
Application |
Remark |
1 |
Raw water tank |
Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system |
|
2 |
Raw water pump |
Provide needed pressure for every pretreatment filter |
|
3 |
Sand filter |
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. |
|
4 |
Activated carbon filter |
We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. |
|
5 |
Softener |
Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling |
|
6 |
Security filter |
prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm |
|
7 |
High pressure pump |
Provide needed working pressure for RO system, ensure production capacity of pure water. |
|
8 |
RO(reverse osmosis) system |
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. |
USA Dow |
Technical parameter
| Model | Capacity(T/H) | Power(KW) | Recovery(%) | One Stage Finished Water Conductivity(μs/cm) | Two Stage Finished Water Conductivity(μs/cm) | EDI System Finished Water Conductivity(μs/cm) | Raw Water Conductivity(μs/cm) |
| JT-500 | 0.5 | 0.75 | 55-75 | ≤10 | 2-3 | ≤0.5 | ≤300 |
| JT-1000 | 1.0 | 2.2 | 55-75 | ||||
| JT-2000 | 2.0 | 4.0 | 55-75 | ||||
| JT-3000 | 3.0 | 5.5 | 55-75 | ||||
| JT-5000 | 5.0 | 7.5 | 55-75 | ||||
| JT-6000 | 6.0 | 7.5 | 55-75 | ||||
| JT-10000 | 10.0 | 11 | 55-75 | ||||
| JT-20000 | 20.0 | 15 | 55-75 |
Material sources of parts
Notes: A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.
Notes: Founded in 1997, with 5 production lines and covering an area of 12,000 square meters, our factory has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manafacturing, sales and service. Advanced production equipments are the guarantee for high quality products.
Notes: We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Factory
We have own factory and skilled workers,rich-experienced design team and good after service.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requiements.
Convenient transportation
We cooperated with efficient logistics.Which ensure the goods can be reached you timely and safely.
Pre-consultation
Please contact us before you place order,or need any technical support or guidance.
