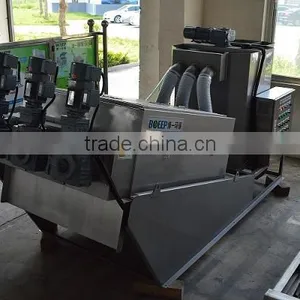

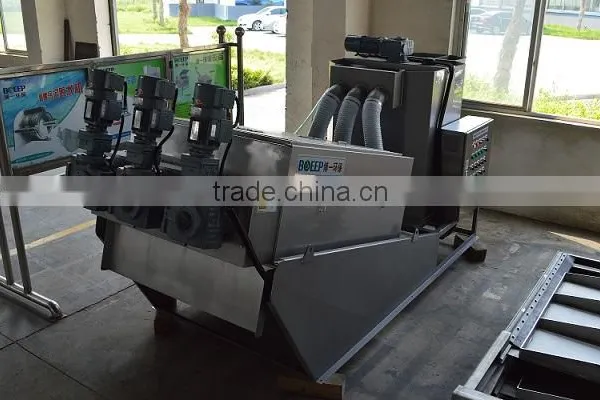

screw press separator
- 30 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BOEEP | Model Number: | YDL301 |
Product Description
Specifications
screw press separator1.Stainless Steel Materials
2.Suitable for oil sludge
3.Simple Control System
screw press separator
Specification:
1.Stainless Steel Materials
2.Suitable for oil sludge
3.Simple Control System
4.Long service life
Product Details:
Product Features:
1 .Suitable for sludge dewatering of high/low consistency.
2. There is no need to worry about jam up. Reduce the cleaning water consumption.
3.The electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.
4.The dehydrator is enclosed working, which reduces the bad smell and improves the working environment
5. Automatically working for 24 hours, reducing the labor strength of workers.
6. The slow running speed of screw shaft reduces the power consumption and noise.
7. It is made with stainless, extending the service life.
8. It is convenient for daily maintenance.
Product Parameters:
Type | Dried sludge treating capacity
| Sludge treating capacity | Weight | ||||
(kg-DS/hr) | 2500mg/L | 5000mg/L | 10000mg/L | 20000mg/L | (kg) | ||
| M3/H | Net | Operating | ||||
YDL301 | 40-70 | 16 | 10 | 7 | 3.5 | 1100 | 1850 |
YDL302 | 80-140 | 32 | 20 | 14 | 7 | 1550 | 2450 |
YDL303 | 120-210 | 48 | 30 | 21 | 10.5 | 2100 | 3250 |
YDL304 | 160-280 | 64 | 40 | 28 | 14 | 2800 | 4100 |
YDL351 | 80-120 | 32 | 16 | 12 | 6 | 1350 | 2250 |
YDL352 | 160-240 | 64 | 32 | 24 | 12 | 2350 | 3500 |
YDL353 | 240-360 | 96 | 48 | 36 | 18 | 3500 | 5000 |
YDL354 | 320-480 | 128 | 64 | 48 | 24 | 4500 | 6100 |
YDL401 | 100-160 | 40 | 26 | 16 | 8 | 3100 | 5200 |
YDL402 | 200-320 | 80 | 52 | 32 | 16 | 4300 | 6900 |
YDL403 | 300-480 | 120 | 78 | 48 | 24 | 6000 | 9100 |
YDL404 | 400-640 | 160 | 104 | 64 | 32 | 7500 | 12900 |
Product Application:
1. Sludge dewatering of industry waste water
2. Separation of liquid and solid in food, chemical and mining industries
3. Sludge dewatering in butching and animal husbandry
About us:
Company Introduction
Jiangsu BOE Environmental Protection Technology Co., Ltd. (BOEEP), lying in the traditional Chinese famous city—Yangzhou, is a professional environmental protection equipment manufacturer and engineering service enterprise.
BOEEP started to set foot in the environmental protection industry from 1988 and is mainly engaged in research on biological wastewater treatment technology and industrialization application, research and development, manufacture and sales of competitive products and technology service, general contracting of environmental protection engineering including design, installation and commissioning, and etc.
Total 6 series and over 50 kinds of environmental protection equipment developed and manufactured by BOEEP cover sludge dewatering equipment, mechanical bar screens, dissolved air flotation equipment, sludge scrape and suck equipment, dosing and mixing equipment, and conveying and pressing equipment.
As a famous leading technology environmental protection equipment manufacturer and engineering service enterprise, BOEEP is committed to create value for employees, customers, suppliers, company, shareholders, and society, realize the sustainable development.
