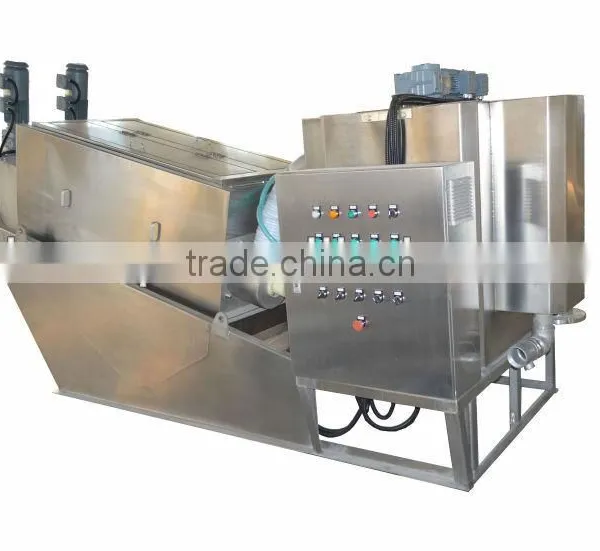

Help CenterFull Automatic Screw Press for Sewage Treatment
Related Products
Specifications
1. Using scope widely, especially for oily sludge2. Less cost, larger treating capacity
3. No secondary pollution
Technical specification
Eight Advantages
1. Using scope widely
It can be widely used to dewater sludge of municipal administration wastewater, food, drink, slaughtering and breeding, print, petrochemical engineering, paper, leather and pharmaceutical.
The distinctive dewatering principle makes it possible that the device can be used for high or low density sludge, from 2000mg/L on, which has become the foundation of the low density sludge direct dewatering.
Innovative structure design makes it possible that the device can be used for all kinds of sludge with high or low density, especially the sludge with oil, and it can be named the invincible opponent to dewater the sludge with oil.
2. The device cannot be clogged easily
Special dynamic and static rings make the device not easily clog. Then there is no need to wash abundantly for preventing filter spacing being clogged. So it has reduced the number of water for washing and burden of inside circling, and solves the clogging problems that the traditional dewatering devices bring to the company.
3. Operating continuously and automatically
Volute Sludge Dewatering can control its operation automatically including pumping out sludge, putting in fluids and discharge sludge. The device can operate through the team work of electrical cabinet, chemical feeder, mud pump and dosing pump without manual operation. The device will be clogged, filters running irregularly, or other situations that can affect the safety cannot take place during the whole procedure. Daily maintenance of the machine can be done easily and conveniently. And it can work continuously all day without manual operation. It makes the dream that sludge dewatering can operate continuously and automatically come true firstly and truly.
4. Operation costs can be saved
The integration overall design, compact design, saving operation costs greatly;
Low speed spiral pressing technology makes the power consumption reduced greatly;
The device cannot be clogged, which can reduce cleaning water greatly;
Operation automatically all day can reduce manual costs greatly;
So, Volute Sludge Dewatering is a new type of energy saving and environmental protection device that can truly consistent with national policy.
5. No secondary pollution
The rotation speed of screw shaft is about 2 to 3 revolutions per minute, and the rotation has no vibration and little noise. The volute has the self-cleaning function, cannot be clogged, just need a little water to clean, and has no secondary pollution. The sludge is done in such a slow state and the bad smell is not diffused, which can create a very comfortable operation surrounding.
6. Flexible and durable frame
This machine’s design is quite flexible because it uses machinery to extrusion dewatering directly and do not need large drum frame. Almost all the frame is made of stainless steel and only the screw shaft and moveable annular plates should be replaced, which can contribute to a long service life and durable in use.
7. Saving engineering investment
Volute Sludge Dewatering has the function of thickening sludge. It can deal with the aerobic sludge in the aeration tank directly. So it does not need thickening storage unit, which can reduce the floor space of sewage treatment facilities and construction costs.
8. Improving phosphorus removal function
Sludge will be dewatered in the aerobic situation, so in the sludge thickening tank or storage tank, traditional phosphorus sludge outlet of anoxic or anaerobic situation cannot happen. Then the phosphorus removal function of the sludge treatment system will be improved.
Process flow diagram
