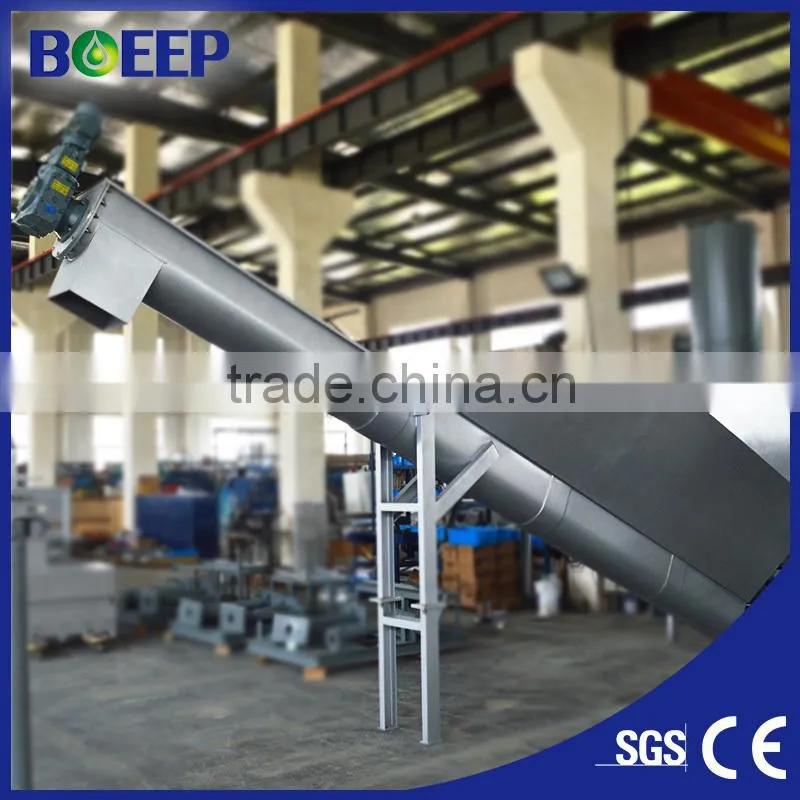

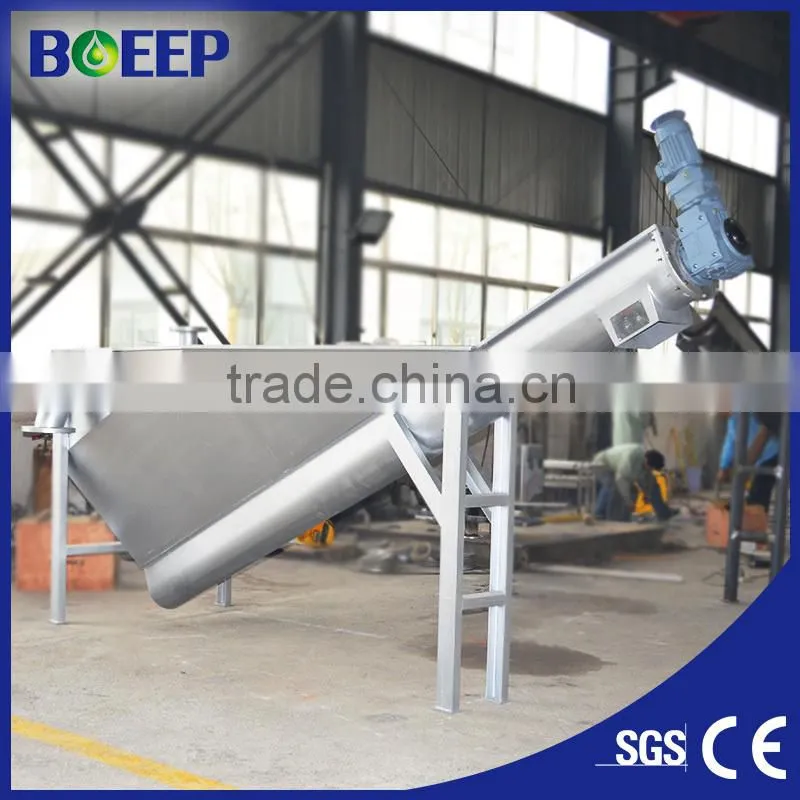

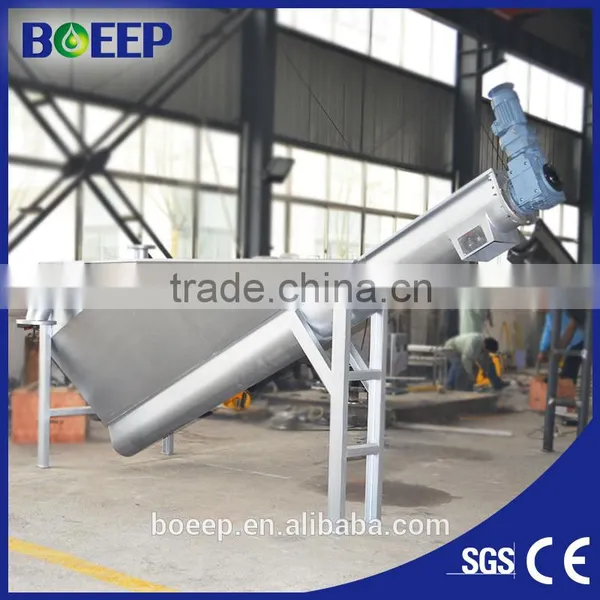

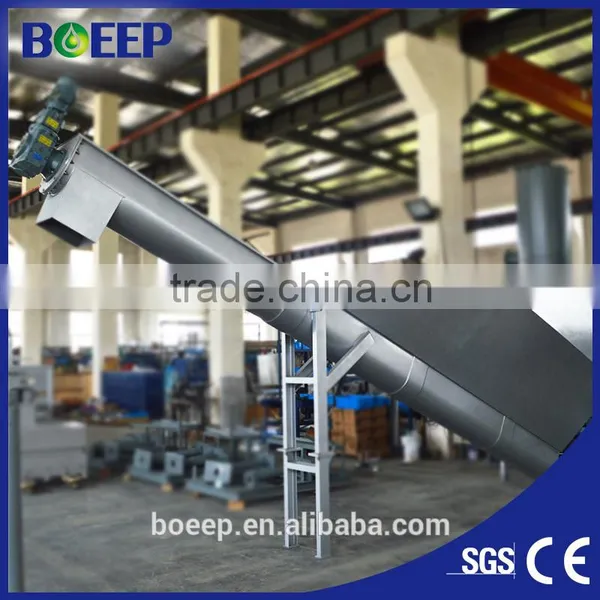

Best sell separator for sand water
Specifications:
1. material: stainless or carbon steel
2. capacity: 15-35L/S
3. speed: 4.8r/min
4. power: 0.37-0.75kw
Product Features:
- Separating efficiency can reach to 90-98%, can separate the sand that diameter greater than 0.2mm.
- Use shaftless spiral, without underwater bearing, convenience to maintenance.
- Structure tightly and light weight.
- New type transmission device, the key unit-reducer is advanced shaft device.
- Stay tape is fast loading type, convenience to exchange.
- Spiral shaft device can be changeable, convenience to exchange the safe gap.
Product Application:
Mainly used for sand and water separating from mud mixture which discharged from grit chamber for easy transportation.
Working principle & structure: sand water mixture feed in water box from the top of separator, the heavy pieces in the mixture such as sand will sedimentation on the bottom of U-shaped slot, under the remove of spiral, sand will lifting along inclined U-shaped bottom, after left liquid surface continue remove a certain distance. After the sand full discharging, through row sand pipe discharge to sand box and the separated water will fill into the factory water pool.
Product Details:
Product Parameter:
|
Parameter Model |
SF-260 |
SF-320 |
SF-360 |
SF-420 |
Diameter of Screw (mm) |
220 |
280 |
320 |
380 |
Capacity (L/S) |
5-12 |
12-20 |
20-27 |
27-35 |
Motor Power (KW) |
0.37 |
0.75 |
||
RPM (r/min) |
5 |
4.8 |
||
|
Size Model |
SF260 |
SF320 |
SF360 |
SF420 |
Size Model |
SF260 |
SF320 |
SF360 |
SF420 |
L |
2800 |
2800 |
3800 |
3800 |
B1 |
310 |
370 |
410 |
470 |
L0 |
3840 |
4380 |
5760 |
6150 |
B2 |
1250 |
1310 |
1470 |
1770 |
L1 |
3000 |
3000 |
4000 |
4000 |
C |
220 |
270 |
320 |
390 |
L2 |
1000 |
1500 |
2000 |
2500 |
U |
260 |
320 |
360 |
420 |
H |
1600 |
1700 |
2150 |
2150 |
Φ |
220 |
280 |
320 |
380 |
H0 |
1550 |
1750 |
2400 |
2550 |
DN1 |
100 |
150 |
200 |
250 |
B |
1200 |
1260 |
1420 |
1720 |
DN2 |
100 |
150 |
200 |
250 |
