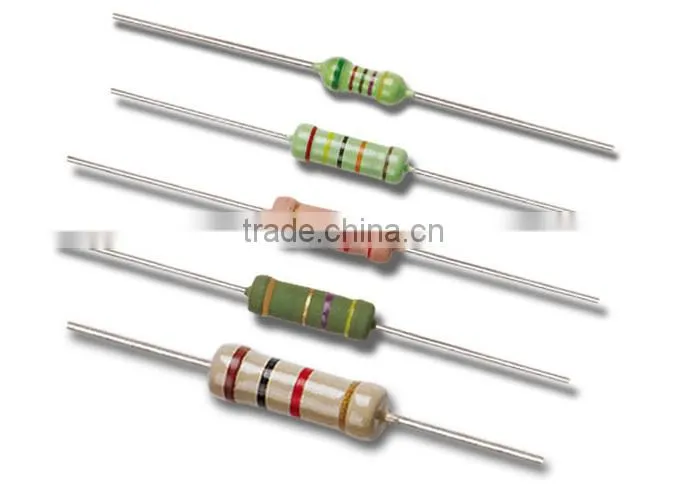

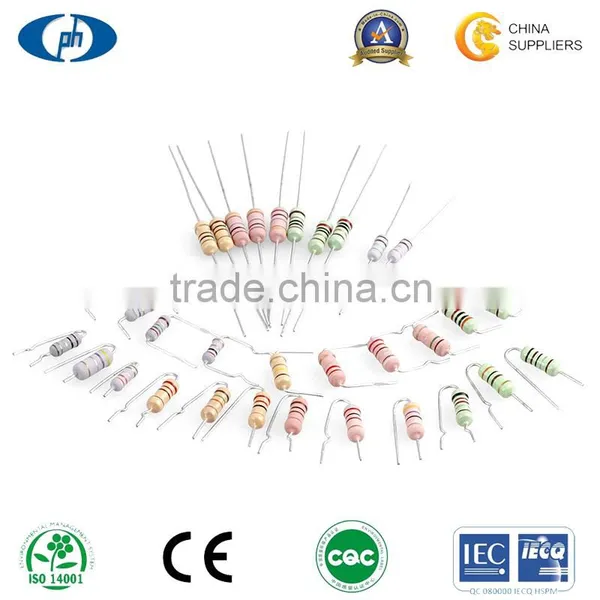

CCR CFR 5 colour code 100 ohm carbon film Resistor
- 200000000 Piece / Pieces per Month
- Shenzhen HongKong
- Electrical safety Fuse Resistor
- CCR CFR 5 colour coding 100R 10K ohm carbon film Resistor
- Value of 0R 1K to 22M ohm 1/6w to 5w Precision Metal Film Resistor
- 5 band Color coding 1/4W 1W Metal Film Fuse Resistor
- PMF 1/8W to 5WS High Precision Metal Fixed Thin Film Resistors
- 1000W 500 ohm Ripple Adjustable High Power Ceramic Tube Braking Resistors with 5 Resistance
Product Details
Place of Origin: | Guangdong, China | Brand Name: | PakHeng--for Carbon Film Fixed Resistor | Model Number: | CFR carbon film resistor |
Type: | Fixed Resistor | Technology: | Carbon Film | Package Type: | Surface Mount |
Resistance: | General 10R-4M7 | Resistance Tolerance: | 2% 5% 10% | Rated Power: | 1/8W 1/6W 1/4W 1/2W 1W 2W 3W |
Temperature Coefficient: | 1000ppm | Operating Temperature: | high |
Packaging Details
Poly bag inner packing, Cartons outside. for Carbon Film Fixed Resistor
Product Description
CCR CFR 5 colour code 100 ohm carbon film Resistor
for House Hold Appliances
1. Stable performance, extensive resistance, small size,high operating temperature and high ultimate voltage.
2. Highly adaptive pulse load, good high frequency performance.
3.Operating ambient temperature: -55℃~ +125℃.
4.The resistor’s normal size coats yellow and the mini size coats brown.
Resistance tolerance:±2%,±5%,±10%
A, High heat exchanged Ceramic core.
B, High stability Electric conduction film.
C, Iron Cap.
D, Epoxy resin coating.
E, Color Ring.
Dimensions and Voltage Performance:
Part No. |
Power |
Resistance range | Dimensions(mm) | ing voltage | Max.overload voltage | Max.Pulse voltage | Max.insulation voltage | ||
L±1 | D±0.5 | d±0.05 | |||||||
CCR016 CFR016 | 1/8W 1/6W | 0R~22M | 3.5 | 1.7 | 0.41 | 200V | 400V | 500V | 300V |
CCR14S CFR14S | 1/4WS | 0R~22M | 3.5 | 1.7 | 0.41 | 200V | 400V | 500V | 300V |
CCR014 CFR014 | 1/4W | 0R~22M | 6.0 | 2.3 | 0.45 | 250V | 500V | 750V | 500V |
0.52 | |||||||||
CCR12S CFR12S | 1/2WS | 0R~22M | 6.0 | 2.3 | 0.45 | 250V | 500V | 750V | 500V |
0.52 | |||||||||
CFR012 | 1/2W | 0R1~22M | 9.0 | 3.2 | 0.58 | 350V | 700V | 1000V | 700V |
CFR01S | 1WS | 0R1~22M | 9.0 | 3.2 | 0.58 | 350V | 700V | 1000V | 700V |
CFR01B | 1W | 0R1~22M | 11.0 | 4.5 | 0.75 | 500V | 1000V | 1000V | 1000V |
CFR02S | 2WS | 0R1~22M | 11.0 | 4.5 | 0.75 | 500V | 1000V | 1000V | 1000V |
CFR02B | 2W | 0R1~22M | 15.0 | 5.0 | 0.75 | 500V | 1000V | 1000V | 1000V |
CFR03S | 3WS | 0R1~22M | 15.0 | 5.0 | 0.75 | 500V | 1000V | 1000V | 1000V |
CFR03B | 3W | 0R1~22M | 24.0 | 8.0 | 0.75 | 700V | 1200V | 1200V | 1000V |
CFR05S | 5WS | 0R1~22M | 24.0 | 8.0 | 0.75 | 700V | 1200V | 1200V | 1000V |
Note:a,“S”means mini size; b,If the calculated rated voltage is higher than the max. working voltage, it will be got the lower value.
|
Test Item | Test Condition | Performance |
Temperature coefficient | Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate . | ±1000ppm/℃ |
Short time overload | 2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds. | ΔR≤±(1%R0+0.05Ω) |
Pulse overload | At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ). | ΔR≤±(2%R0+0.05Ω) |
Resistance to soldering heat |
Immerge into 350±10℃ tin stove for 2~3 seconds. | ΔR≤±(1%R0+0.05Ω) |
Solderability |
Immerge into 260±5℃ tin stove for 2~3 seconds. | The area of soldering is over 95% |
Temperature cycling | At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles. | ΔR≤±(1%R0+0.05Ω) |
Load life in humidity | Overload rated voltage or ing voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity. | ΔR≤±(5%R0+0.05Ω) |
Load life in heat | Overload rated voltage or ing voltage (get the lower ) for 1000 hours (1.5 hours on and half-hour off) at the 70±2℃. | ΔR≤±(5%R0+0.05Ω) |
CFR | 01B | J | 0 | T520 | 100K0 | |
Product Name |
Power |
Tol. |
Special Code |
Forming |
Ohm | |
Carbon Film Fixed Resistors
CFR: Copper Lead Wire CCR: CP Lead Wire | 018=1/8W 016=1/6W 14S=1/4WS 014=1/4W 12S=1/2WS 012=1/2W 01S=1WS 01B=1W | 02S=2WS 02B=2W 03S=3WS 03B=3W 05S=5WS | G=±2% J=±5% K=±10% |
| T260=T26 T520=T52 T710=T71 M001=M F001=F B001=B | 0R100=0.1Ω 0R220=0.22Ω 10R00=10Ω 10K00=10KΩ 1M000=1MΩ |
Performance Test:
Test Item Test Condition Performance
Temperature coefficient ±1000ppm/
Short time overload R≤±(1%R0+0.05R)
Pulse overload R≤±(2% R0+0.05R)
Resistance to soldering heat R≤±(1% R0+0.05R)
Solerability The soldering area is over 95%
Temperature cycling R≤±(1% R0+0.05R)
Load life in humidity R≤±(5% R0+0.05R)
Load life in heat R≤±(5% R0+0.05R)
Film Resistors
Description | Power | Tolerance | Range |
(CR/CCR)Carbon Film Resistors | 1/8W, 1/6W, 1/4WS, 1/4W, 1/2WS, 1/2W, 1WS, 1W 2WS, 2W, 3WS, 3W, 5WS | ±5% ±2% ±10% | 0R-22M |
(LCR/HCR)Nonflammable carbon film Resistors | ±5% ±2% ±10% | 0R1-22M | |
(MO/CMO)Metal oxide film Resistors | ±5% ±2% | 0R1-820K | |
MF/CMF Metal Film Resistors | ±5% ±1% | 0R1-22M | |
LMF/HMF Nonflammable Metal Film Resistors | ±5% ±1% | 0R-22M | |
(PMF)High precision metal film Resistors | 1/8W, 1/6W, 1/4WS, 1/4W, 1/2WS, 1/2W, 1WS, 1W 2WS, 2W | ±0.5% ±0.1% | 10R-2M2 |
