PMF 1/8W to 5WS High Precision Metal Fixed Thin Film Resistors



PMF 1/8W to 5WS High Precision Metal Fixed Thin Film Resistors

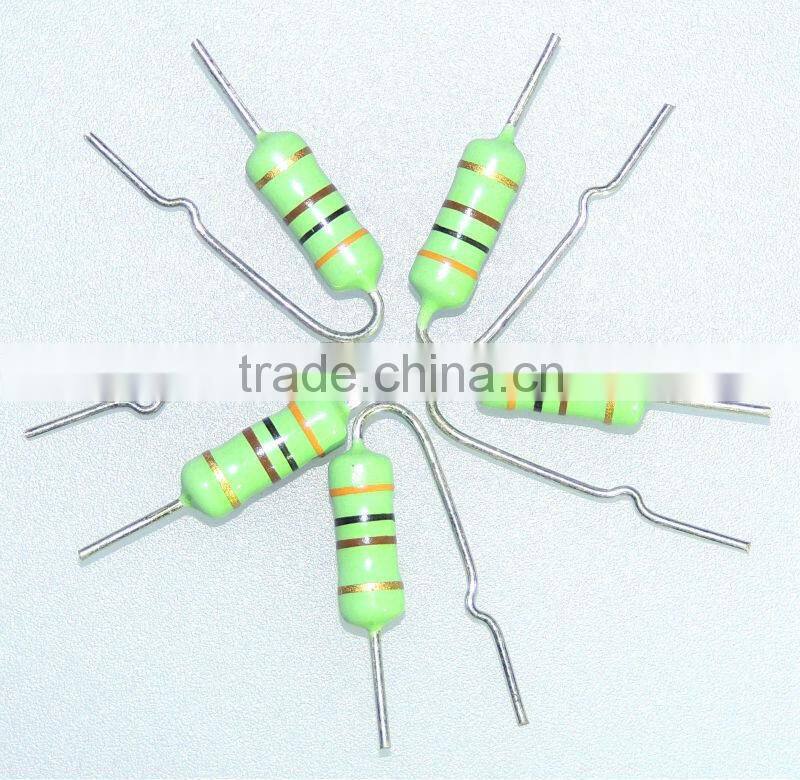

High Precision Metal Film Resistors(PMF)
1, Low temperature coefficient, high precision, and good high frequency performance.
2, Operating ambient temperature: -55C to +155C.
3, Film the metal in Vacuum with the good waterproof. The surface coating is green resign with the good waterproof.
4, Resistance tolerance: ± 0.1%, ± 0.5%.

Power: 1/8W, 1/6W, 1/4WS, 1/4W, 1/2WS, 1/2W, 1WS, 1W, 2WS, 2W ,3WS,3W,5WS
Tolerance: ± 0.1%, ± 0.5%.
Range: 10R-470K



Dimensions and Voltage Performance:







Part No.

Power

Resistance range

Dimensions(mm)

ing voltage

Max.overload voltage

Max.Pulse voltage

Max.insulation voltage

L±1

D±0.5

d±0.05

PMF016

1/8W

0R~22M

3.5

1.7

0.41

150V

300V

500V

300V

PMF016

1/6W

0R~22M

3.5

1.7

0.41

150V

300V

500V

300V

PMF14S

1/4WS

0R~22M

3.5

1.7

0.41

150V

300V

500V

300V

PMF014

1/4W

0R~22M

6.0

2.3

052

250V

500V

750V

500V

PMF12S

1/2WS

0R1~22M

6.0

2.3

0.52

250V

500V

750V

500V

PMF012

1/2W

0R1~22M

9.0

3.2

0.52

350V

700V

1000V

700V

PMF01S

1WS

0R1~22M

9.0

3.2

0.58

350V

700V

1000V

700V

PMF01B

1W

0R1~22M

11.0

4.5

0.75

500V

1000V

1000V

1000V

PMF02S

2WS

0R1~22M

11.0

4.5

0.75

500V

1000V

1000V

1000V

PMF02B

2W

0R1~22M

15.0

5.0

0.75

500V

1000V

1000V

1000V

PMF03S

3WS

0R1~22M

15.0

5.0

0.75

500V

1000V

1000V

1000V

PMF03B

3W

0R1~22M

24.0

8.0

0.75

700V

1200V

1200V

1000V

PMF05S

5WS

0R1~22M

24.0

8.0

0.75

700V

1200V

1200V

1000V







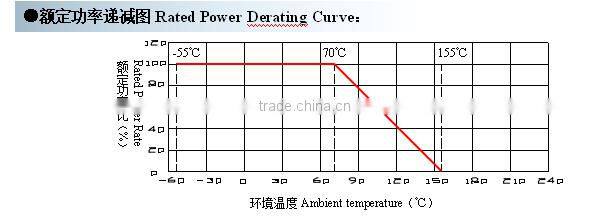

 PMF 1/8W to 5WS High Precision Metal Fixed Thin Film Resistors





Performance Test:



Test Item

Test Condition

Performance

Temperature coefficient

Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate .

±15 ppm/℃~50ppm/℃

Short time overload

2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds.

ΔR≤±(0.5%R0+0.05Ω)

Pulse overload

At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ).

ΔR≤±(1%R0+0.05Ω)

Resistance to soldering heat

Immerge into 350±10℃ tin stove for 2~3 seconds.

ΔR≤±(0.5%R0+0.05Ω)

Solderability

Immerge into 245±3℃ tin stove for 2~3 seconds.

The area of soldering is over 95%

Temperature cycling

At  -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles.

ΔR≤±(0.5%R0+0.05Ω)

Load life in humidity

Overload rated voltage or ing voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity.

ΔR≤±(2%R0+0.05Ω)

Load life in heat

Overload rated voltage or ing voltage (get the lower ) for 1000 hours (1.5 hours on and half-hour off) at the 70±2℃.

ΔR≤±(2%R0+0.05Ω)

PMF

01B

F

0

T520

10K00

Product Name

Power

Tol.

Special Code

Forming

Ohm

High Precision Metal Film Fixed Resistors

016=1/8W     14S=1/4WS

12S=1/2WS    01S=1WS

02S=2WS     03S=3WS

05S=5WS     016=1/6W

014=1/4W     012=1/2W

01B=1W      02B=2W

03B=3W



B=±0.1%

D=±0.5%





T260=T26

T520=T52

T710=T71

M001=M

F001=F

B001=B



0R100=0.1Ω

0R220=0.22Ω

10R00=10Ω

10K00=10KΩ

1M000=1MΩ
