5 Color Band Flameproof Carbon Composition Fixed Thin Film Resistors

FOB Price

Negotiable / Piece

5000 Pieces(Min. Order)

Port shenzhen hk
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PakHeng--carbon film resistor
Model Number	(LCR/HCR/LCC/HCC)Nonflammable carbon film resistor	Type	Other, Nonflammable Carbon Film Resistors
Technology	Carbon Film	Package Type	Surface Mount
Resistance	0R-1M	Resistance Tolerance	2% 5% 10%
Rated Power	1/8W-5WS	Temperature Coefficient	1000ppm
Operating Temperature	high

Packaging Details

Carton Packing for Nonflammable carbon film resistor

Product Description

5 Colors band Flameproof Carbon composition Fixed Thin Film Resistors

Nonflammable Carbon Film Resistors(LCR/HCR/LCC/HCC)

Features:

1,Stable performance, extensive resistance, small size, high operating temperature and high ultimate voltage.

2, Highly adaptive pulse load, good high frequency performance

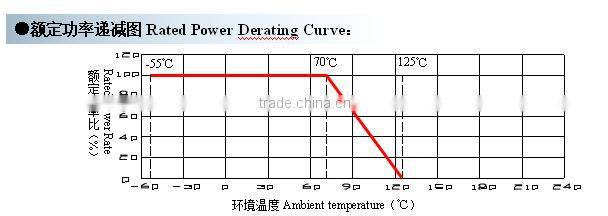

3, Operating ambient temperature:-55 to +125.

4, The surface is nonflammable, the normal size coating is brick red and the small size coating is green.

5, Resistance tolerance:±2%,±5%,±10%.

Performance Test:

Test Item Test Condition Performance

Temperature coefficient ±1000ppm/

Solerability The soldering area is over 95%

Temperature cycling R≤±(1% R₀+0.05R)

Load life in humidity R≤±(5% R₀+0.05R)

Load life in heat R≤±(5% R₀+0.05R)

Nonflammability No visible flamme

Dimensions and Voltage Performance:

Part No.	Power	Resistance range	Dimensions(mm)			ing voltage	Max.overload voltage	Max.Pulse voltage	Max.insulation voltage
Part No.	Power	Resistance range	L±1	D±0.5	d±0.05	ing voltage	Max.overload voltage	Max.Pulse voltage	Max.insulation voltage
HCC016 HCR016	1/6W	0R~22M	3.5	1.7	0.41	200V	400V	500V	220V
LCC14S LCR14S	1/4WS	0R~22M	3.5	1.7	0.41	200V	400V	500V	220V
HCC014 HCR014	1/4W	0R~22M	6.0	2.3	0.45	250V	500V	750V	300V
HCC014 HCR014	1/4W	0R~22M	6.0	2.3	0.52	250V	500V	750V	300V
LCC12S LCR12S	1/2WS	0R1~22M	6.0	2.3	0.45	250V	500V	750V	300V
LCC12S LCR12S	1/2WS	0R1~22M	6.0	2.3	0.52	250V	500V	750V	300V
HCR012	1/2W	0R1~22M	9.0	3.2	0.58	350V	700V	1000V	500V
LCR01S	1WS	0R1~22M	9.0	3.2	0.58	350V	700V	1000V	500V
HCR01B	1W	0R1~22M	11.0	4.5	0.75	500V	1000V	1000V	710V
LCR02S	2WS	0R1~22M	11.0	4.5	0.75	500V	1000V	1000V	710V
HCR02B	2W	0R1~22M	15.0	5.0	0.75	500V	1000V	1000V	710V
LCR03S	3WS	0R1~22M	15.0	5.0	0.75	500V	1000V	1000V	710V
HCR03B	3W	0R1~22M	24.0	8.0	0.75	700V	1200V	1200V	1000V
LCR05S	5WS	0R1~22M	24.0	8.0	0.75	700V	1200V	1200V	1000V

Performance Test:

Test Item	Test Condition	Performance
Temperature coefficient	Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate .	±1000ppm/℃
Short time overload	2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds.	ΔR≤±(1%R0+0.05Ω)
Pulse overload	At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ).	ΔR≤±(2%R0+0.05Ω)
Resistance to soldering heat	Immerge into 350±10℃ tin stove for 2~3 seconds.	ΔR≤±(1%R0+0.05Ω)
Solderability	Immerge into 245±3℃ tin stove for 2~3 seconds.	The area of soldering is over 95%
Temperature cycling	At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles.	ΔR≤±(1%R0+0.05Ω)
Load life in humidity	Overload rated voltage or ing voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity.	ΔR≤±(5%R0+0.05Ω)
Load life in heat	Overload rated voltage or ing voltage (get the lower ) for 1000 hours (1.5 hours on and half-hour off) at the 70±2℃.	ΔR≤±(5%R0+0.05Ω)
Nonflammability	Respectively load AC voltage by 5,10,16 times rared power for 5 minutes.	No visible flame

Part No.Regulation:

LCR

01B

T520

100K0

Product Name

Power

Tol.

Special Code

Forming

Ohm

Nonflammable Carbon Film Resistors

016=1/8W 14S=1/4WS

12S=1/2WS 01S=1WS

02S=2WS 03S=3WS

05S=5WS 016=1/6W

014=1/4W 012=1/2W

01B=1W 02B=2W

03B=3W

G=±2%

J=±5%

K=±10%

T260=T26

T520=T52

T710=T71

M001=M

F001=F

B001=B

0R100=0.1Ω

0R220=0.22Ω

10R00=10Ω

10K00=10KΩ

1M000=1MΩ

LCR=Green,Copper wire

HCR=Brick Red,Copper wire

LCC=Green, CP wire

HCC=Brick Red, CP wire
