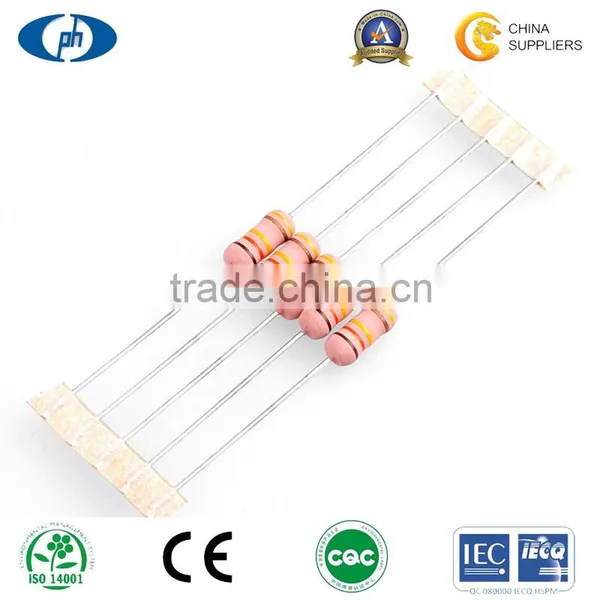

MOR CMO Electronic parts 220R 500 Ohm Metal Oxide Film Fixed Resistors
Applied to electrical appliances product
Metal Oxide Film Resistors(MOR/CMO)
1,Good performance in moisture resistance, anti-oxidization, good thermal stability, nonflammability, overload stability.
2, Operating ambient temperature:-55 to +155.
3,The surface is nonflammable, the noraml size coating is brick red and the small size coating is green.
4,Resistance tolerance:±2%,±5%.
Performance Test:
Test Item Test Condition Performance
Temperature coefficient ±350ppm/-Short time overload R≤±(0.5%R0+0.05R)
Pulse overload R≤±(1% R0+0.05R)
Resistance to soldering heat R≤±(2% R0+0.05R)
Solerability The soldering area is over 95%
Temperature cycling R≤±(1% R0+0.05R)
Load life in humidity R≤±(5% R0+0.05R)
Load life in heat R≤±(5% R0+0.05R)
Nonflammability No visible flame
Film Resistors
Description |
Power |
Tolerance |
Range |
(CR/CCR)Carbon Film Resistors |
1/8W, 1/6W, 1/4WS, 1/4W, 1/2WS, 1/2W, 1WS, 1W 2WS, 2W, 3WS, 3W, 5WS |
±5% ±2% ±10% |
0R-22M |
(LCR/HCR)Nonflammable carbon film Resistors |
±5% ±2% ±10% |
0R1-22M |
|
(MO/CMO)Metal oxide film Resistors |
±5% ±2% |
0R1-820K |
|
|
MF/CMF Metal Film Resistors |
±5% ±1% |
0R1-22M |
|
|
LMF/HMF Nonflammable Metal Film Resistors |
±5% ±1% |
0R-22M |
|
(PMF)High precision metal film Resistors |
1/8W, 1/6W, 1/4WS, 1/4W, 1/2WS, 1/2W, 1WS, 1W 2WS, 2W |
±0.5% ±0.1% |
10R-2M2 |
Dimensions and Voltage Performance:
Part No. |
Power |
Resistance range |
Dimensions |
Max. orking voltage |
Max.overload voltage |
Max.Pulse voltage |
Max.insulation voltage |
||
L±1 |
D±0.5 |
d±0.05 |
|||||||
|
CMO016 MOR016 |
1/8W 1/6W |
0R~1M |
3.2 |
1.7 |
0.41 |
150V |
300V |
300V |
200V |
|
CMO14S MOR14S |
1/4Ws |
0R~1M |
3.2 |
1.7 |
0.41 |
150V |
300V |
300V |
200V |
|
CMO014 MOR014 |
1/4W |
0R~1M |
6.0 |
2.3 |
0.45 |
200V |
400V |
500V |
250V |
0.52 | |||||||||
|
CMO12S MOR12S |
1/2WS |
0R~1M |
6.0 |
2.3 |
0.45 |
200V |
400V |
500V |
250V |
0.52 | |||||||||
MOR012 |
1/2W |
0R1~1M |
9.0 |
3.2 |
0.52 |
250V |
400V |
500V |
250V |
MOR01S |
1WS |
0R1~1M |
9.0 |
3.2 |
0.58 |
350V |
600V |
750V |
350V |
MOR01B |
1W |
0R1~1M |
11.0 |
4.5 |
0.75 |
350V |
600V |
750V |
350V |
MOR02S |
2WS |
0R1~1M |
11.0 |
4.5 |
0.75 |
350V |
600V |
750V |
350V |
MOR02B |
2W |
0R1~1M |
15.0 |
5.0 |
0.75 |
350V |
600V |
750V |
350V |
MOR03S |
3WS |
0R1~1M |
15.0 |
5.0 |
0.75 |
350V |
600V |
750V |
350V |
MOR03B |
3W |
0R1~1M |
24.0 |
8.0 |
0.75 |
500V |
800V |
1000V |
500V |
MOR05S |
5WS |
0R1~1M |
24.0 |
8.0 |
0.75 |
500V |
800V |
1000V |
500V |
Performance Test:
Test Item |
Test Condition |
Performance |
Temperature coefficient |
Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate . |
±350ppm/℃ |
Short time overload |
2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds. |
ΔR≤±(1%R0+0.05Ω) |
Pulse overload |
At 4 x rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ). |
ΔR≤±(2%R0+0.05Ω) |
Resistance to soldering heat |
Immerge into 350±10℃ tin stove for 2~3 seconds. |
ΔR≤±(1%R0+0.05Ω) |
Solderability |
Immerge into 245±3℃ tin stove for 2~3 seconds. |
The area of soldering is over 95% |
Temperature cycling |
At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles. |
ΔR≤±(1%R0+0.05Ω) |
Load life in humidity |
Overload rated voltage or ing voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity. |
ΔR≤±(5%R0+0.05Ω) |
Load life in heat |
Overload rated voltage or ing voltage (get the lower ) for 1000 hours (1.5 hours on and half-hour off) at the 70±2℃. |
ΔR≤±(5%R0+0.05Ω) |
Nonflammability |
Respectively load AC voltage by 5,10,16 times rared power for 5 minutes. |
No visible flame |
Part No.Regulation:
MOR |
01B |
F |
0 |
T520 |
10K00 |
|
Product Name |
Power |
Tol. |
Special Code |
Forming |
Ohm |
Metal Oxide Film Fixed Resistors |
016=1/8W 14S=1/4WS 12S=1/2WS 01S=1WS 02S=2WS 03S=3WS 05S=5WS 016=1/6W 014=1/4W 012=1/2W 01B=1W 02B=2W 03B=3W
|
G=±2% J=±5%
|
|
T260=T26 T520=T52 T710=T71 M001=M F001=F B001=B
|
0R100=0.1Ω 0R220=0.22Ω 10R00=10Ω 10K00=10KΩ 1M000=1MΩ
|
