Low Noise 5W 360 Ohm Ceramic Shell Cement Resistor
Cement Resistors(RX/BRX/HRX)
1,Good heat-durability,low temperature coefficient,low noise,high load power,high insulating capacity
2,Operating ambient temperature:-55C to +275C
3,Resistance tolerance:±1%,±2%, ±5%,±10%
Forming Type & Power:
SQP:1W-11W,15W,17W,20W,25W
SBH:5W-11W,15W,17W,20W,25W
SQM:1W-11W,15W,20W
SQS:5W,7W,10W,15W,20W,25W

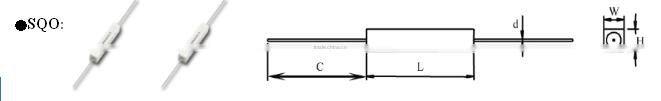

SQO:4W,5W,6W,7W,8W
SQZ:3W-11W,15W,17W,20W,25W
SQH:3W-11W,15W,17W,20W,25W,30W,40W,50W,100W
SHG:10W,11W,15W,20W,25W,30W,40W
Z4-16,Z5-16:4W,10W
ZC-11:5W
M450:80W
Tolerance:±1%,±2%, ±5%, ±10%
Range:0R01-100K
Part No. |
Power |
Dimensions(mm) |
Resistance range |
|||||||
L±1.5 |
W±1 |
H±1 |
C±3 |
d±0.05 |
RXR |
BRX |
HRX |
NRX |
||
RXR01B(HRX/NRX) |
1W |
14 |
6.5 |
5.5 |
23.0 |
0.62 |
0.1R~100R |
|
100R~100K |
0R2~2R7 |
RXR02B(HRX/NRX) |
2W |
18.0 |
7.0 |
7.5 |
21.0 |
0.75 |
0.1R~820R |
|
220R~100K |
0R1~10R |
RXR03B(BRX/HRX/NRX) |
3W |
22.0 |
8.0 |
8.0 |
35.0 |
0.75 |
0.1R~3K3 |
1R~120R |
100R~100K |
0R1~27R |
RXR04B(BRX/HRX/NRX) |
4W |
22.0 |
8.0 |
8.0 |
35.0 |
0.75 |
0.1R~3K3 |
1R~120R |
100R~100K |
0R1~27R |
RXR05B(BRX/HRX/NRX) |
5W |
22.0 |
10.0 |
9.0 |
35.0 |
0.75 |
0.1R~3K3 |
1R~120R |
100R~100K |
0R1~27R |
RXR06B(BRX/HRX/NRX) |
6W |
35.0 |
10.0 |
9.0 |
35.0 |
0.75 |
0.1R~7K5 |
1R~390R |
820R~100K |
0R2~39R |
RXR07B(BRX/HRX/NRX) |
7W |
35.0 |
10.0 |
9.0 |
35.0 |
0.75 |
0.1R~7K5 |
1R~390R |
820R~100K |
0R2~39R |
RXR08B(BRX/HRX/NRX) |
8W |
35.0 |
10.0 |
9.0 |
35.0 |
0.75 |
0.1R~7K5 |
1R~390R |
820R~100K |
0R2~39R |
RXR09B(BRX/HRX/NRX) |
9W |
48.0 |
10.0 |
9.0 |
33.0 |
0.75 |
0.1R~12K |
1R~470R |
1K~100K |
0R2~47R |
RXR10B(BRX/HRX/NRX) |
10W |
48.0 |
10.0 |
9.0 |
33.0 |
0.75 |
0.1R~12K |
1R~470R |
1K~100K |
0R2~47R |
RXR11B(BRX/HRX/NRX) |
11W |
48.0 |
10.0 |
9.0 |
33.0 |
0.75 |
0.1R~12K |
1R~470R |
1K~100K |
0R2~47R |
RXR15B(BRX/ NRX) |
15W |
48.0 |
12.5 |
11.5 |
33.0 |
0.75 |
0.2R~18K |
1R~560R |
|
0R2~56R |
RXR17B(BRX/ NRX) |
17W |
60.0 |
14.0 |
13.5 |
33.0 |
0.75 |
0.2R~30K |
1R~620R |
|
0R2~68R |
RXR20B/25B(BRX/ NRX) |
20W-25W |
60.0 |
14.0 |
13.5 |
33.0 |
0.75 |
0.2R~30K |
1R~620R |
|
0R2~68R |
RXR30B/40B(HRX) |
30W-40W |
89.0 |
19.0 |
19.0 |
23.0 |
0.75 |
0.2R~30K |
|
1K~100K |
|
Description |
Forming Type |
Size |
Tolerance |
Range |
|
RX/BRX/HRX Cement Resistors
NRX Non-inductive Cement Resistors
|
SQP |
1W-11W,15,17W,20W,25W |
±5% ±1% |
RX/BRX/HRX 0R01-100K
NRX:0R1-47R |
SBH |
5W-11W,15,17W,20W,25W |
|||
SQM |
1W-11W,15,17W,20W |
|||
SQS |
5W,7W,10W,15W,20W,25W |
|||
SQO |
4W,5W,6W,7W,8W |
|||
SQZ |
3W-11W,15,17W,20W,25W |
|||
SQH |
3W-11W,15,17W,20W,25W 30W,40W,50W,100W |
|||
SHG |
10W,11W,15W,20W,25W,30W,40W |
|||
Z4-16, Z5-16 |
4W,10W |
|||
ZC-11 |
5W |
|||
M450 |
80W |
|||
E |
2W,3W,5W,7W,10W, 2W+2W,3W+3W,5W+5W,7W+7W |
|||
|
MPR Metal Plate Non-inductive Cement Resistors |
EC |
5W |
±5% ±10% |
0R01-4R7 |
Heated Cement Resistors |
B |
16W |
±5% ±10% |
0R1-220R |
|
Temperature Fuse Cement Resistors
|
M |
5W,7W,10W |
±5% ±10% |
0R1-47K |
|
Part No. |
Power |
Dimensions(mm) |
Resistance range |
|||||
|
|
L±1.5 |
W±1 |
H±1 |
C±3 |
d±0.05 |
BRX |
HRX |
BRX04B(HRX) |
4W |
20.0 |
6.5 |
6.5 |
35.0 |
0.75 |
0R1~120R |
|
BRX05B(HRX) |
5W |
25.0 |
6.5 |
6.5 |
35.0 |
0.75 |
0R1~330R |
100R~100K |
BRX06B(HRX) |
6W |
38.0 |
7.0 |
7.0 |
35.0 |
0.75 |
0R1~390R |
820R~100K |
BRX07B/08B(HRX) |
7W-8W |
38.0 |
8.5 |
8.5 |
35.0 |
0.75 |
0R1~390R |
820R~100K |
BRX09B(HRX) |
9W |
38.0 |
8.5 |
8.5 |
35.0 |
0.75 |
0R1~390R |
820R~100K |
