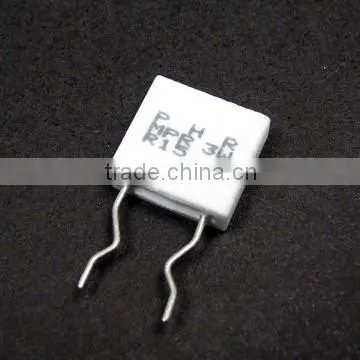

MPR 2W 3W 5W 7W Metal Plate Noninductive Cement Resistor
Metal Plate Noninductive Cement Resistors(MPR)
1.Operating ambient temperature: -55C to +275C
2.Low inductance. Resistance tolerance: ± 5%, ± 10%
3.Low inductance
4.Range: 0R01-4R7
Forming Type & Power:
E: 2W, 3W, 5W, 7W, 10W, 2W+2W, 3W+3W, 5W+5W, 7W+7W
EC: 5W
E Frank Forming Type Dimensions:
Part No. |
Power |
Resistance range |
Dimensions (mm) |
Max. working Voltage |
Max.overload Voltage |
Max.insulation Voltage |
|||||
|
|
|
A±1.5 |
B±1.5 |
C±1.5 |
H±1.5 |
P±1.5 |
d±0.05 |
|
|
|
MPR02B |
2W |
0R01~2R2 |
8.5 |
14.0 |
5.0 |
4~18 |
9.0 |
0.75 |
100V |
100V |
800V |
MPR03B |
3W |
0R01~2R2 |
13.0 |
14.0 |
5.0 |
4~18 |
9.0 |
0.75 |
100V |
100V |
800V |
MPR05B |
5W |
0R01~2R7 |
18.0 |
14.0 |
5.0 |
4~18 |
9.5 |
0.75 |
150V |
150V |
1000V |
MPR07B |
7W |
0R01~2R7 |
18.0 |
14.0 |
5.0 |
4~18 |
9.5 |
0.75 |
150V |
150V |
1000V |
MPR10B |
10W |
0R01~4R7 |
17.0 |
26.0 |
5.0 |
4~18 |
20.0 |
0.75 |
300V |
300V |
1000V |
MPR2B2 |
2W+2W |
0R01~4R7 |
10.0 |
26.0 |
5.0 |
4~18 |
10.0 |
0.75 |
200V |
200V |
1000V |
MPR3B3 |
3W+3W |
0R01~4R7 |
13.0 |
26.0 |
5.0 |
4~18 |
10.0 |
0.75 |
250V |
250V |
1000V |
MPR5B5 |
5W+5W |
0R01~4R7 |
17.0 |
26.0 |
5.0 |
4~18 |
10.0 |
0.75 |
300V |
300V |
1000V |
MPR7B7 |
7W+7W |
0R01~4R7 |
20.0 |
26.0 |
5.0 |
4~18 |
10.0 |
0.75 |
350V |
350V |
1000V |
MPR5B5 |
5W+5W (EA type) |
0R01~4R7 |
14.0 |
26.0 |
8.0 |
4~18 |
10.0 |
0.75 |
350V |
350V |
1000V |
E Bend Forming Type Dimensions:
Part No. |
Power |
Resistance range |
Dimensions (mm) |
Max. working Voltage |
Max.overload Voltage |
Max.insulation Voltage |
|||||
|
|
|
A±1.5 |
B±1.5 |
C±1.5 |
H±1.5 |
P±1.5 |
d±0.05 |
|
|
|
02B |
2W |
0R01~2R2 |
8.5 |
14.0 |
5.0 |
13.0 |
9.0 |
0.75 |
100V |
100V |
800V |
03B |
3W |
0R01~2R2 |
13.0 |
14.0 |
5.0 |
13.0 |
9.0 |
0.75 |
100V |
100V |
800V |
05B |
5W |
0R01~2R7 |
18.0 |
14.0 |
5.0 |
13.0 |
9.5 |
0.75 |
150V |
150V |
1000V |
07B |
7W |
0R01~2R7 |
18.0 |
14.0 |
5.0 |
13.0 |
9.5 |
0.75 |
150V |
150V |
1000V |
10B |
10W |
0R01~4R7 |
17.0 |
26.0 |
5.0 |
13.0 |
20.0 |
0.75 |
300V |
300V |
1000V |
2B2 |
2W+2W |
0R01~4R7 |
10.0 |
26.0 |
5.0 |
13.0 |
10.0 |
0.75 |
200V |
200V |
1000V |
3B3 |
3W+3W |
0R01~4R7 |
13.0 |
26.0 |
5.0 |
13.0 |
10.0 |
0.75 |
250V |
250V |
1000V |
5B5 |
5W+5W |
0R01~4R7 |
17.0 |
26.0 |
5.0 |
13.0 |
10.0 |
0.75 |
300V |
300V |
1000V |
7B7 |
7W+7W |
0R01~4R7 |
20.0 |
26.0 |
5.0 |
13.0 |
10.0 |
0.75 |
350V |
350V |
1000V |
5B5 |
5W+5W (EA type) |
0R01~4R7 |
14.0 |
26.0 |
8.0 |
13.0 |
10.0 |
0.75 |
350V |
350V |
1000V |
EC Frank Forming Type Dimensions:
Part No. |
Power |
Resistance range |
Dimensions (mm) |
Max. working Voltage |
Max.overload Voltage |
Max.insulation Voltage |
|||||
|
|
|
A±1.5 |
B±1.5 |
C±1.5 |
H±1.5 |
P±1.5 |
d±0.05 |
|
|
|
05B |
5W |
0R01~2R7 |
18.0 |
16.0 |
8.5 |
4~18 |
10 |
0.75 |
150V |
150V |
1000V |
EC Bend Forming Type Dimensions:
Part No. |
Power |
Resistance range |
Dimensions (mm) |
Max. working Voltage |
Max.overload Voltage |
Max.insulation Voltage |
|||||
|
|
|
A±1.5 |
B±1.5 |
C±1.5 |
H±1.5 |
P±1.5 |
d±0.05 |
|
|
|
05B |
5W |
0R01~2R7 |
18.0 |
16.0 |
8.5 |
13.0 |
10 |
0.75 |
150V |
150V |
1000V |
Performance Test:
Test Item |
Test Condition |
Performance |
Temperature coefficient |
Test the resistance value at normal temperature added 100℃,calculate per ℃ resistance value rate. |
±350ppm/℃ |
Short time overload |
2~4W:According 5 times rated voltage ,5~10W: According 10 times rated power to account the voltage or max .overload voltage (get the lower)for 5 seconds. |
ΔR≤±(2%R0+0.05Ω) |
Resistance to soldering heat |
Immerge into the 350±10℃ tin stove for 2~3 seconds. |
ΔR≤±(1%R0+0.05Ω) |
Solderability |
Immerge into the 245±3℃ tin stove for 2~3 seconds. |
The soldering area is over 95% |
Temperature cycling |
At -55℃ for 30 min,then at +25℃ for 10~15 min,then at +275℃ for 30 min,then at +25℃ for 10~15min, total 5 cycles. |
ΔR≤±(1%R0+0.05Ω) |
Load life in humidity |
Overload rated voltage or Max. working voltage(get the lower)for 1000 hours (1.5 hours on and half-hours off) at the 40±2℃ and 90~95% relative humidity. |
ΔR≤±(5%R0+0.05Ω) |
Load life in heat |
Overload rated voltage or Max. working voltage(get the lower)m for 1000 hours (1.5 hours on and half-hours off) at the 70±2℃. |
ΔR≤±(5%R0+0.05Ω) |
Nonflammability |
Respectively load AC voltage by5,10,16 times rated power for 5 min. |
No visible flame |
Part No. Regulation:
MPR |
05B |
J |
0 |
E001 |
1R100 |
|
Product Name |
Power |
Tol. |
SpecialCode |
Forming |
Ohm |
|
|
Metal plate Non-inductive cement resistors |
02B=2W 05B=5W 2B2=2W+2W |
03B=3W 07B=7W 3B3=3W+3W |
J=±5% K=±10% |
|
E001=E7 E002=E13-4 E003=EC |
0R100=0.1Ω 1R000=1Ω 4R700=4.7Ω |
