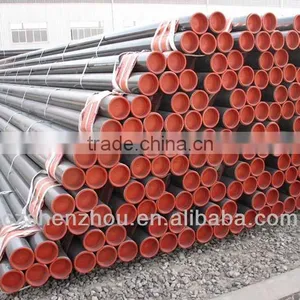

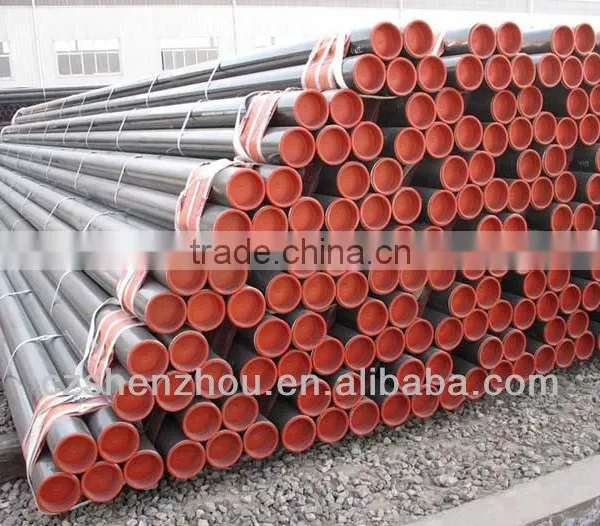

Help CenterSmall Size Carbon Steel Seamless Steel Pipe With Caps on the Each End
Related Products
-
Seamless Steel Pipe With Caps Each EndUS$ 500 - 1,000MOQ: 1 Ton -
Seamless Steel Pipe Used in Electrical PowerUS$ 500 - 1,000MOQ: 1 Ton
-
4" Carbon Steel Seamless PipesUS$ 400 - 1,000MOQ: 1 Ton
-
Small Size Seamless Steel Pipe for Electical PowerUS$ 500 - 1,000MOQ: 5 Tons
-
Sell A106 PE Seamless PipeUS$ 600 - 800MOQ: 30 Tons
Specifications
small size carbon steel Seamless Steel Pipe with caps on the each endwe produce SSAW, LSAW, seamless and ERW pipe, pipe fittings1. Standard: API 5L PSL1, ASTM A106, ASTM A53, GB/T8163, GB/T8162 GB/T5310 GB/T3087
2.Material: API 5L GRB,x42-x60, A106 GRB, A53 GRB, steel 20#,Q345,16Mn,ST37.ST52.
3. Length: 5.8M, 6M, 11.8M, 12M or according to the customers requirements.
4. Outside diameter: 13.7mm-610mm Wall thickness: 2 mm-28.58mm
5. Outside antirust: black paint, 3PE, Varnish
6. End is protected by Plastic cap
7. Specification:
DN |
DN (mm) |
SCH40(6m) |
SCH80(6m) |
SCH160(6m) |
|||
|
WT (mm) |
WEIGHT/PCS (kg) |
WT (mm) |
WEIGHT/PCS (kg) |
WT (mm) |
WEIGHT/PCS (kg) |
||
1/4” |
13.7 |
2.24 |
3.79 |
3.02 |
4.80 |
|
|
3/8” |
17.1 |
2.31 |
5.04 |
3.20 |
6.60 |
|
|
1/2” |
21.3 |
2.77 |
7.62 |
3.73 |
9.72 |
4.78 |
11.7 |
3/4” |
26.7 |
2.87 |
10.14 |
3.91 |
13.2 |
5.56 |
17.4 |
1” |
33.4 |
3.38 |
15.00 |
4.55 |
19.44 |
6.35 |
25.44 |
1-1/4” |
42.2 |
3.56 |
20.34 |
4.85 |
26.82 |
6.35 |
33.66 |
1-1/2” |
48.3 |
3.68 |
24.30 |
5.08 |
32.46 |
7.14 |
43.5 |
2” |
60.3 |
3.91 |
32.64 |
5.54 |
44.88 |
8.74 |
66.66 |
2-1/2” |
73.0 |
5.16 |
51.78 |
7.01 |
68.46 |
9.53 |
89.52 |
3” |
88.9 |
5.49 |
67.74 |
7.62 |
91.62 |
11.13 |
128.1 |
3-1/2” |
101.6 |
5.74 |
81.42 |
8.08 |
111.78 |
|
|
4” |
114.3 |
6.02 |
96.42 |
8.56 |
133.92 |
13.49 |
201.24 |
5” |
141.3 |
6.55 |
130.62 |
9.53 |
185.82 |
15.88 |
294.66 |
6” |
168.3 |
7.11 |
169.56 |
10.97 |
255.36 |
18.26 |
405.36 |
8” |
219.1 |
8.18 |
255.3 |
12.70 |
387.84 |
23.01 |
667.62 |
10” |
273.0 |
9.27 |
361.86 |
15.09 |
576.06 |
28.58 |
1033.98 |
12” |
323.8 |
10.31 |
478.38 |
17.48 |
792.48 |
|
|
