Help CenterHot Swappable hf Radio Transceiver and Receiver up to 10km Vga Fiber Transmitter
Related Products
-
10KM VGA Signal Transmitter Resolution up to 1920*1080P@60Hz Support RS232US$ 1 - 258MOQ: 1 Set -
Newest 10KM VGA Over Fiber Converter External Audio With Bi-directional RS232 Signal Transmission Support 1080P@60Hz ResolutionUS$ 1 - 280MOQ: 1 Set
-
VGA Extender Over Fiber Support External Stereo Audio Unidirectional TransmissionUS$ 1 - 275MOQ: 1 Set
-
1080P Extender VGA Signal Input Support RS232US$ 1 - 370MOQ: 1 Set
-
Rs232 to Vga Adapter Video Studio Transmission EquipmentNegotiableMOQ: 1 Set
Features
- All-digital, uncompressed, high-definition optical transmission
- Compliance with the VGA standard protocol
- Support Independent analog audio
- Automatic identification and configure various display modes
- The highest resolution to 1080P @ 60Hz, and compatible with downward resolution
- Single / multi-mode fiber transmission
- Built-in ESD protection circuitry, can effectively prevent electrostatic damage
PW-THF121/VGA Fiber optic transceiver | |
| Operating Temperature Range | -5 to +35°C |
| Operating humidity range | 5 to 90 % RH (no condensation) |
| Input and output video signal | VGA |
| Support Video Format | 1920x1200@60Hz / 1920x1080@60Hz |
| Transmission distance | 5KM-40KM The default is 5KM |
| Input and output audio interface | 3.5MM Audio |
| Support input and output audio formats | 44.1K,48K,96K,176K,192K |
| Serial port baud rate | 115200 and following adaptively |
| Input Power | DC5V |
| Power Consumption | VGA Transmitter 4W VGA Receiver 4W |
| Dimensions | Long * Wide * High (mm)155X115X30 |
| Package Size | 300*252*100mm |
| Weight | 1.8kg |

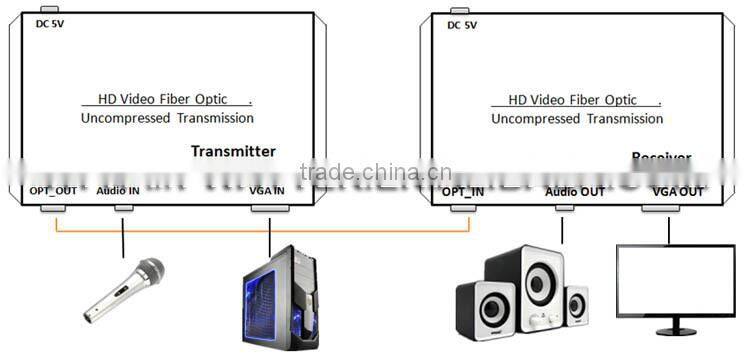

Application Diagram
