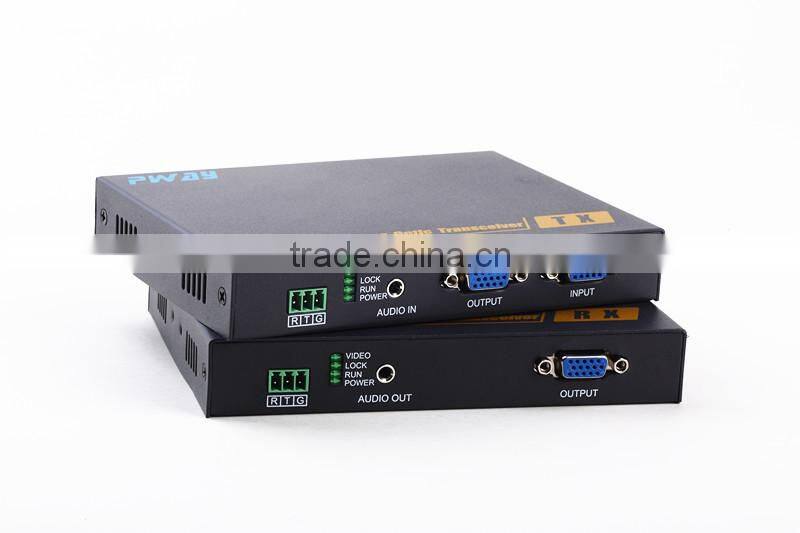

Fiber Optic Transmitter Receiver Transmit VGA Signal With 1080p With RS232

1.Description

ThePW-THF108FiberopticextenderprovidesextensionofVGAsignalslongdistancesoveronefiberoptic

cable,itsupportshighresolutionupto1080P,transmitterlocaloutput,RS232signalandexternalaudiotransmissionfunction.Theextendercanuseforawiderangeofapplicationsrequiringlongdistancetransmission

ofhighresolutionwithhighqualitybyitsgoodstabilityandpowerfulsecurity.

2.Specifications

3.Features

• Transmits VGA video signals up to 10km over one fiber optic cable;
• Support video resolution up to 1920*1080P@60Hz;
• Support external stereo audio unidirectional transmission;
• Support transmitter one channel signal output;
• Support RS232 signal unidirectional transmission, baud rate self-adaptive;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play.

4.Panel Descriptions:

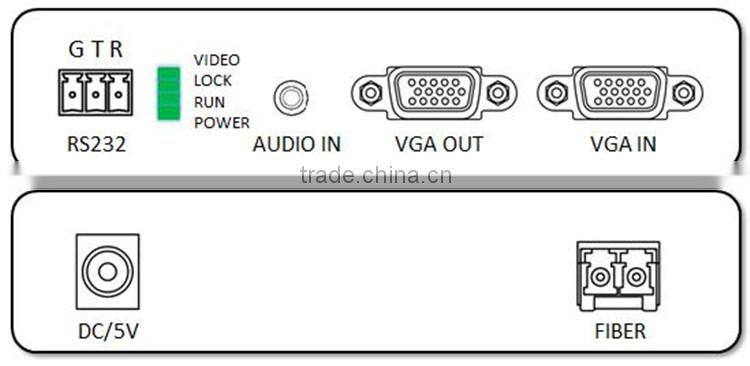

Transmitter:

Receiver:

5.Installation:

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,

2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,

3.Connect the HDMI output port of receiver to the display device with HDMI cable,

4.Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

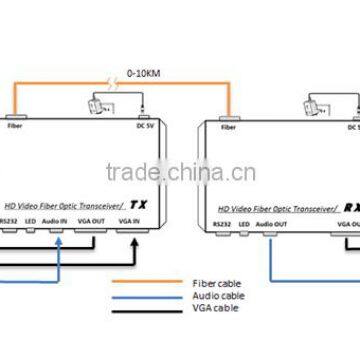

6.ApplicationDiagram

Warranty:

Thank you very much for using our products.

1. The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
2. Free maintain won’t be given under the following circumstance:

• The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;
• The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;
• The product malfunction caused by not in accordance with the user manual operation;
• The malfunction and damaged caused by the other barriers(man-made factors or external device);

Any problems in the after-sales service, please contact us directly.

Packing :Gift Box
