1080P transceiver transmits VGA video signals up to 5km vga transmitter receiver
Descpription

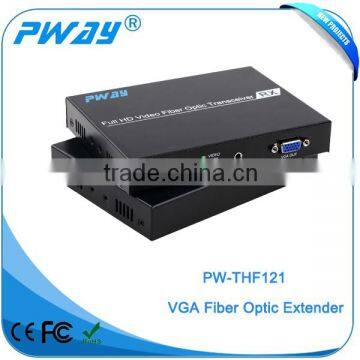

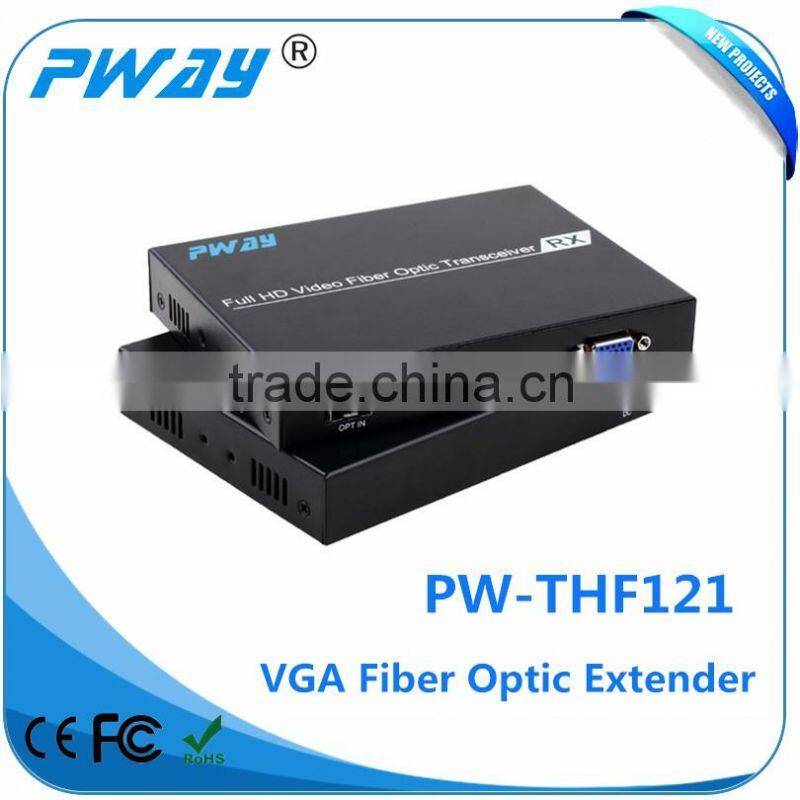

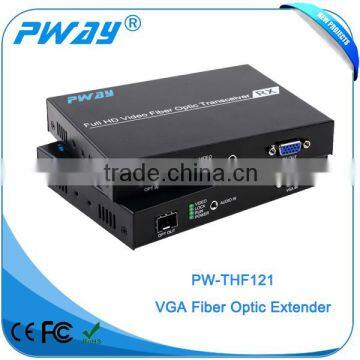

The PW-THF121 Fiber optic extender provides extension of VGA signal long distances over one fiber optic cable, it supports high resolution up to 1080P and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
- Transmits VGA video signals up to 5km over one fiber optic cable;
- Support video resolution up to 1920*1080P@60Hz;
- Support external stereo audio unidirectional transmission;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | VGA |
Maximum pixel clock | 380MHz | |
Resolution | 1920*1080/60Hz,1280*1024/60Hz, 1280*768/60Hz,1280*720/60Hz, 1024*768/60Hz, 800*600/60Hz, | |
Impedance | 75Ω | |
Audio | Interface | 3.5mm earphone seat |
Format | 44.1K,48K,96K,176K,192K | |
Signal type | Stereo | |
Optical fiber | Interface | LC connector |
Fiber type | Single-mode single fiber | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 3Gbps | |
Transmission distance | standard 5km, max:40km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 4W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 155*115*30mm | |
The warranty | 1 year free warranty, life-long maintenance | |

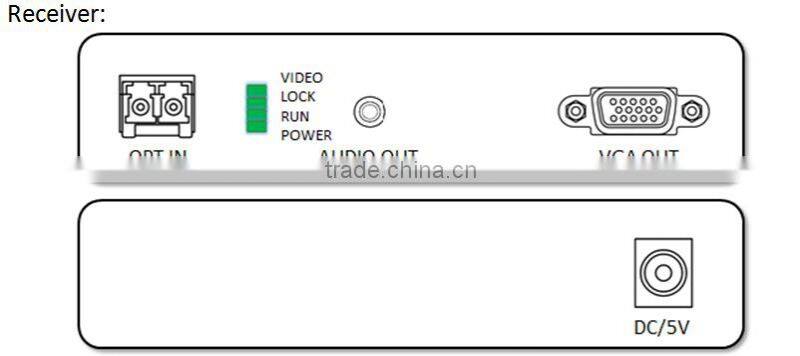

Port name | Description |
VGA IN/OUT | VGA signal input/output |
AUDIO IN/OUT | Stereo audio signal input/output |
DC/5V | Power adapter socket |
OPT IN/OUT | SFP module---LC connector |
LED indicator | Description |
VIDEO | Video signal connection indicator |
LOCK | Video signal lock indicator |
RUN | System status indicator |
POWER | System power indicator |
Installation
- Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
- Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source,
- Connect the VGA output port of receiver to the display device with VGA cable,
- Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
Diagram
| Introduction Shenzhen Pinwei Technology Co., Ltd. is a company engaged in wireless video production accessories manufacturers, the company is located in Shenzhen Baoan Longhua Sea Star Technology park. |
Strong sales team We have laptop parts export experience more than 10 year.Excellent team and perfect after service make our business is an enjoyment. | |
| Production equipment Maintenance of factory production lines and equipment regular maintenance, make more smooth, the equipment will be worn down to the minimum. |
Production line Professional production lines and improve the process, prompted us to constantly improve the quality of products and delivery efficiency, I will continue to strive to improve in. | |
| Factory warehouse In cooperation with a number of companies, to ensure the timeliness of goods,The strict professional warehouse system to make our warehouse colleaguesarrangement efficiency and safety of goods transport. |
Our Services
After-sales service |
If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
Customer service |
Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
About shipping |
DHL , UPS , TNT , Fedex : Process time + shipping time take 2-6 days to most of countries if without custom clearance problem , but might meet custom duty . Shiping by DHL, EMS, FEDEX, UPS , TNT , AIR CARGO, SEA CARGO, CONTAINER etc according to specific order with standard packaging.
|
Thank you very much for using our products.
The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
Free maintain won’t be given under the following circumstance:
- The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;
- The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;
- The product malfunction caused by not in accordance with the user manual operation;
- The malfunction and damaged caused by the other barriers(man-made factors or external device);
Any problems in the after-sales service, please contact us directly.
