200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P

Name: 200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P
Brand: Pway
SKU: 135021839
Availability: InStock

Shenzhen City Pin Wei Technology Limited

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P thumbnail-1

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P thumbnail-2

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P thumbnail-3

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P thumbnail-4

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P thumbnail-5

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P thumbnail-6

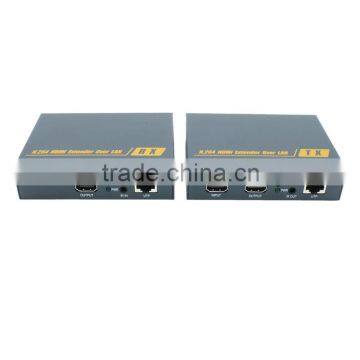

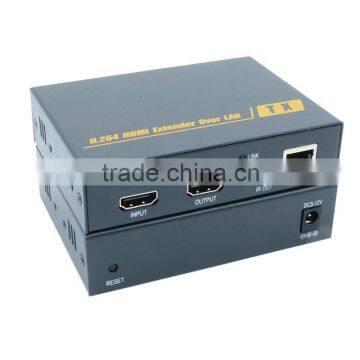

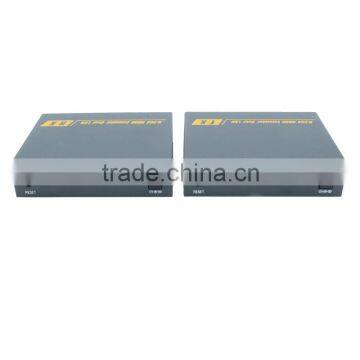

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P photo-1

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P photo-2

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P photo-3

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P photo-4

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P photo-5

200M HDMI Loop Extender Over TCP/IP With IR With Local Loop Hdmi Output With 1080P photo-6

US$ 1 - 86 MOQ: 1 Pair

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Pway

Model Number:

DT209

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Pway

Model Number DT209

200M HDMI loop Extender over TCP/IP with IR with Local loop hdmi output with 1080P

Product Description

Product Introductions:

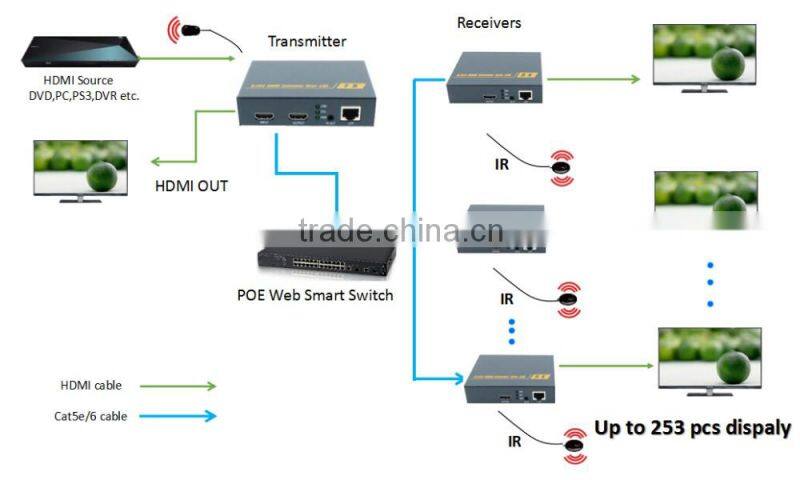

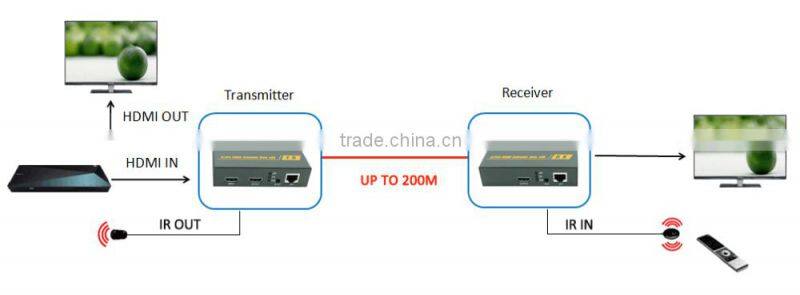

PW-DT209 extender provides extension of HDMI signals up to 200m over a single cat5e/ 6 cable, it supports high resolution up to 1080P, and support POE function. At the same time, it is very convenient with infrared extensions to make remote control. The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.

Specification of product :

HDMI 1.3 version, HDCP 1.2 version.
Support video resolution up to 1080P@60Hz;
Transmits HDMI video and audio signals up to 200m over a single CAT5E/6 cable;
Support POE power function, power adapter connect TX or RX;
Support IR signal transmission;
Transmitter support 1 channel local loop hdmi output
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Up to 1080P@60Hz
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	38kHz
Ethernet	Interface	RJ45
Ethernet	Transmission distance	UTP CAT6 up to 200m
Other	Power supply	DC 5- 12V
	Power dissipation	MAX 8W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	947125mm
	The warranty	1 year free warranty

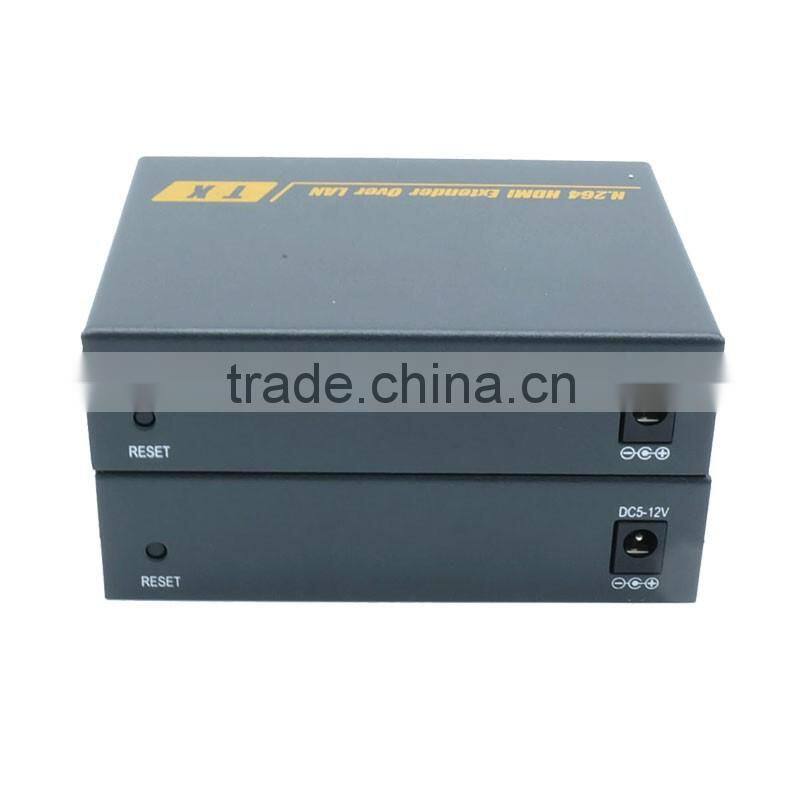

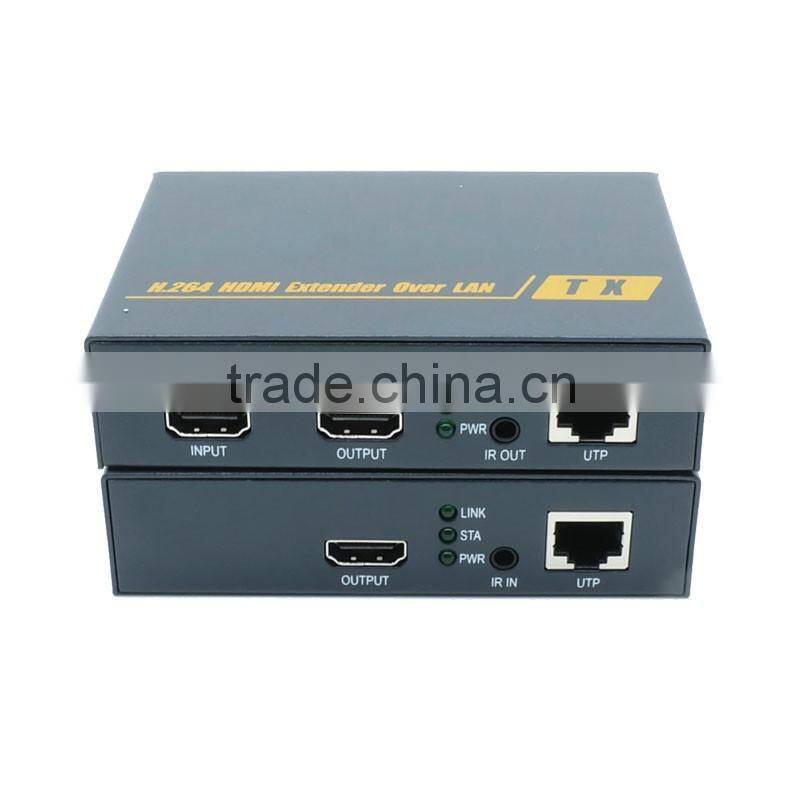

Product Pictures display:

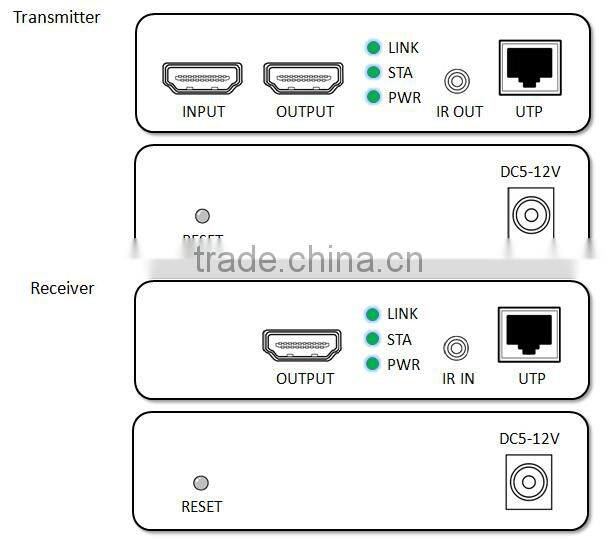

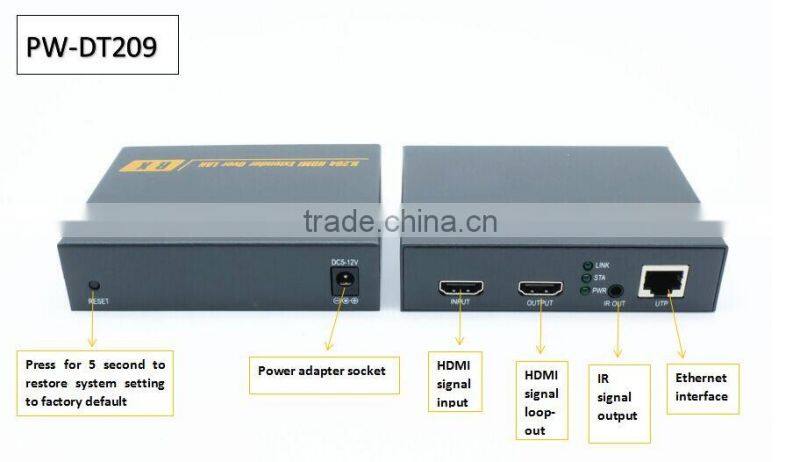

Panel

Packaging & Shipping

If quantity is not very big (namely: sample trial order ), most of the items ordered will be sent within the next 2 or 3 working days after payment is confirmed.
Items will be 100% checked by our professional inspector before shipping
We will choose DHL ,UPS ,FeDex or other express way as agreed!

Our Services

After-sales service

If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time.

Customer service

Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication.

Warranty :

The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
Free maintain won’t be given under the following circumstance:

The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;
The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;
The product malfunction caused by not in accordance with the user manual operation;
The malfunction and damaged caused by the other barriers(man-made factors or external device);
Any problems in the after-sales service, please contact us directly.

Other products:

If this product can not meet your demand.Pls click on the image as below to browse more.Hope you can find the one as you want.

FAQ

Where is your factory ? Can I have a visit ?

Add: 5/FL, Block 3, Heng Chang Rong XingHui Technology Park, West Hua Ning Road, Da Lang Community,Longhua District, Shenzhen in CHINA.

Can I buy samples from your company?

We can provide samples .Contact me to talk about the details please.

How about the payment terms?

We accept T/T, western union......

What is the after-sales service?

One year warranty and professional engineers to solve your matter .If customer find quality problems within 15 days after received merchandise, please inform us, we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products itself. Then we will make solution with relevant department and feedback to customer on time.

Are you manufacturer or trading company?

We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,converter series products.

If you are not clear about how to use the products?

Each of your products with a manual, you can read it or you may consult us.

How long could I get reply of my inquiry?

You will get a reply within 24 hours.

How does your factory do regarding quality control?

Quality is a priority . Pwaytek people always attached great importance to quality controlling from start to finish.
