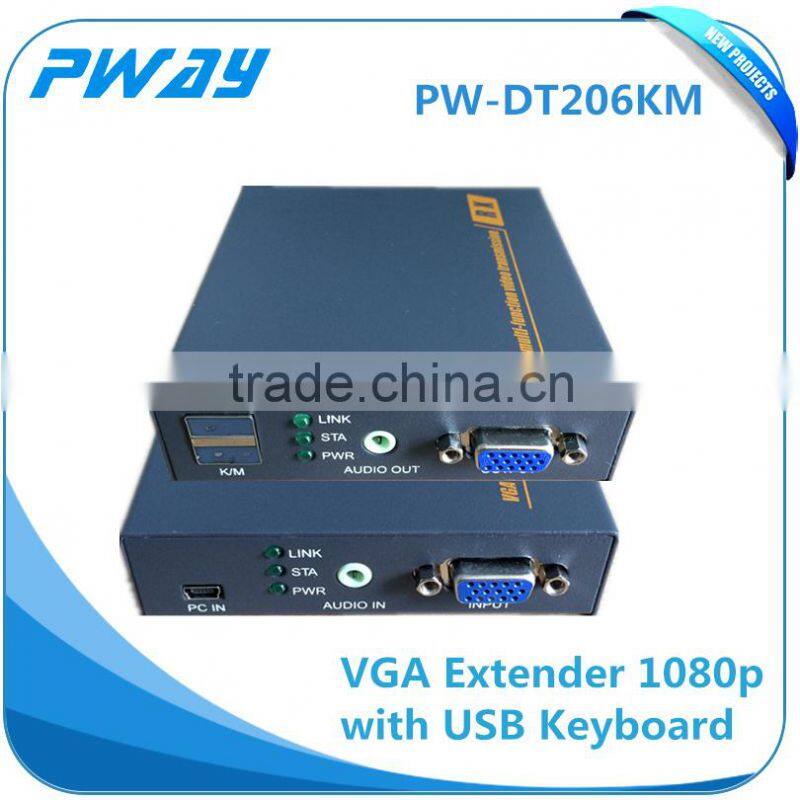

1080p VGA Signal Extender via Cat5e/6 200m Support Keyboard and Usb Video Ethernet Transmitter and Receiver

FOB Price

US$ 1 - 150 / Pair

1 Pair(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Pway		Model Number	PW-DT206KM
Place of Origin	Guangdong, China

Product Description

VGA extender via utp cable support keyboard and usb rj45 video ethernet transmitter and receiver

Product Description

Features

Transmit VGA video and audio over long distances through the cable, up to 200 meters;
The highest resolution HD video signals up to 1080P @ 60Hz;
Compliance with VGA standard protocol;
Support for external one-way analog stereo audio signal transmission;
Support USB keyboard and mouse transmission;
It can automatically identify and configure a variety of display modes;
Built-in automatic equalization system, the picture is smooth, clear and stable;
Built-in ESD Protection Circuit, comprehensive protection system security;
Easy to install, plug and play, no need to set;

Parameter		Description
Video	Signal Type	VGA
	BW	380MHz
	Resolution	1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps
	Impedance	75Ω
Audio	Port	3.5mm Stereo audio socket
Audio	Type	Stereo
K/M	PIN	USB
Ethernet port	Cable Type	IEEE 568B
Ethernet port	Max transmission distance	Cat5e :150m,cat6 :200m
Other	Power	Adapter:DC 5V/2A
	Power dissipation	MAX 4W
	Temperature	Operating:-5℃ ~ +70℃
	Humidity	Operating:5% ~ 90%
	Size	1029625mm
	Warranty	1 year

Instructions for use

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

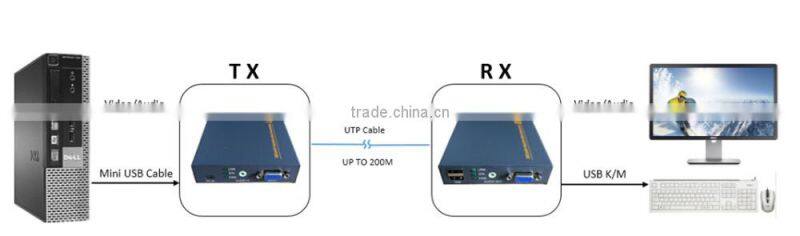

Application Diagram

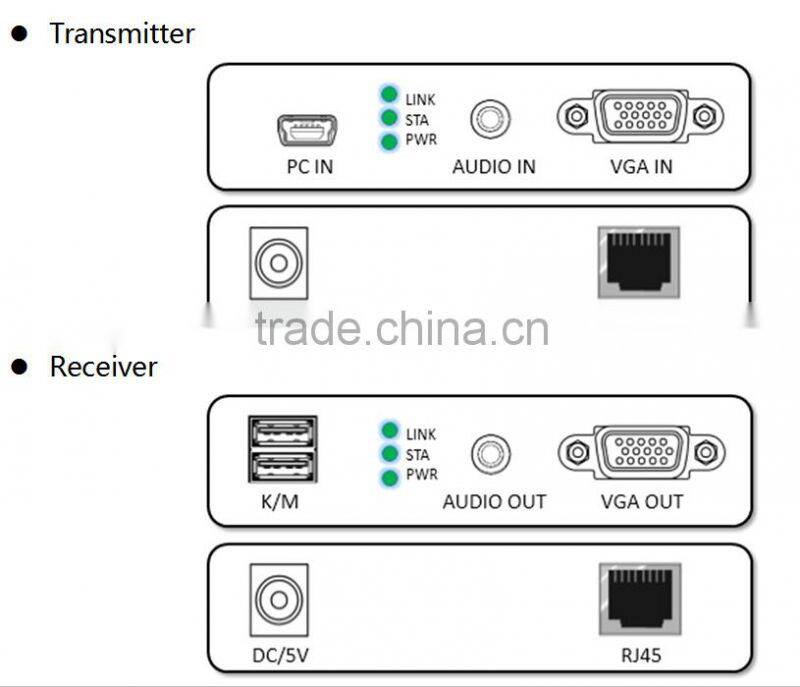

Connector Details:
