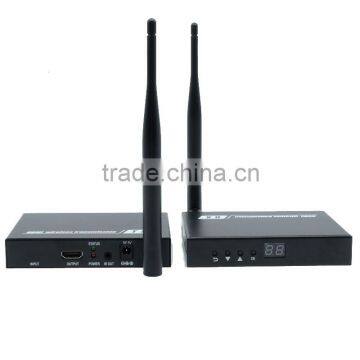

Full HD 1080P Wireless HDMI video audio transmitter receiver 2.4GHz/5GHz HDMI extender with loop out & IR up to 50m/164ft
Description

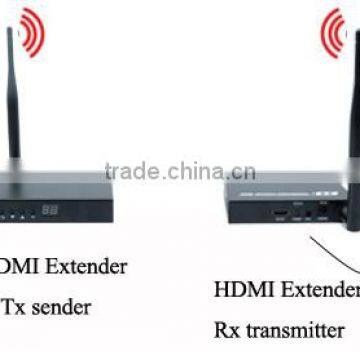

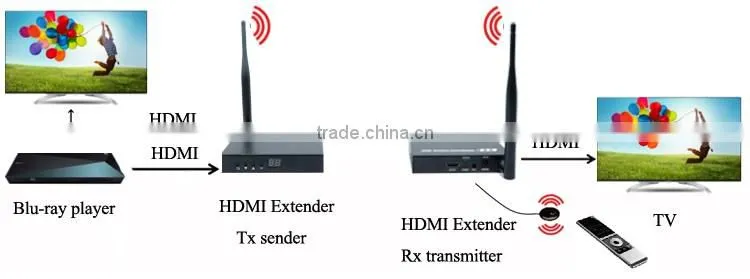

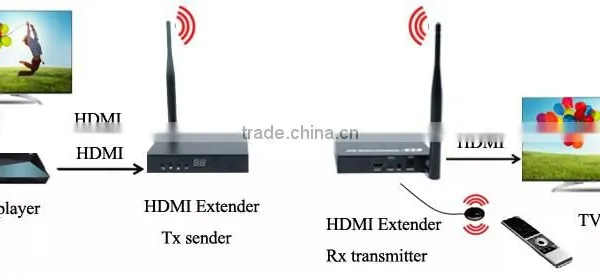

This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 2.4GHz/5GHz band, with very low latency.
It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.
This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.
Features
- Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
- Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz.
- Support IR remote control function to control source device content from long distance.
- Transmitter have one local loop out.
- Low latency <200ms.
- Effective Range: 50m ( Line of sight ).
- No cable between sender (TX) and receiver (RX).
- Easy and clean installation.
- Plug & Play – full hardware design, no software is required.
- Transmission distance will be different due to the environment.
- Wall, brick or glass will shorten the signal cover range or cause big signal loss
Specifications
Parameter
Description
Video
Standard Protocol
HDMI 1.3; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
Connector
HDMI-A
Impedance
100Ω
Compress Formats
H.264
IR
Interface
3.5mm earphone seat
Signal direction
unidirectional
IR frequency
38kHz
WIFI
Frequency
2.4GHz/5GHz
Transmission distance
50m
Wireless Standard
802.11AC
Other
Power supply
The power adapter: DC 5V/2A
Power dissipation
MAX 6W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
The warranty
1 year free warranty

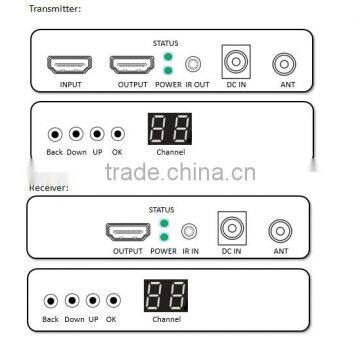

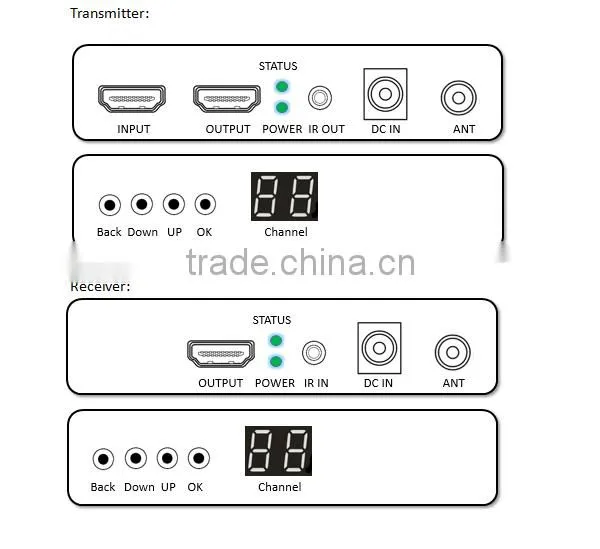

Port name
Description
HDMI IN/OUT
HDMI signal input/output
IR IN/OUT
IR signal input/output
DC IN
Power adapter socket
Channel
Display Channel
Back Down UP OK Key
Adjust 2.4G/5GHz channel.
LED indicator
Description
STATUS
Video signal connection indicator
POWER
System power indicator
| Introduction Shenzhen Pinwei Technology Co., Ltd. is a company engaged in wireless video production accessories manufacturers, the company is located in Shenzhen Baoan Longhua Sea Star Technology park. |
Strong sales team We have laptop parts export experience more than 10 year.Excellent team and perfect after service make our business is an enjoyment. | |
| Production equipment Maintenance of factory production lines and equipment regular maintenance, make more smooth, the equipment will be worn down to the minimum. |

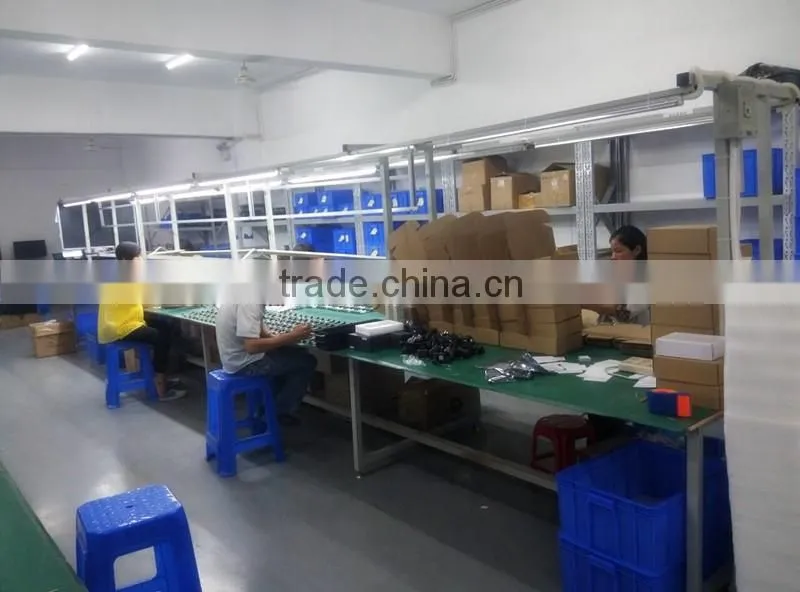

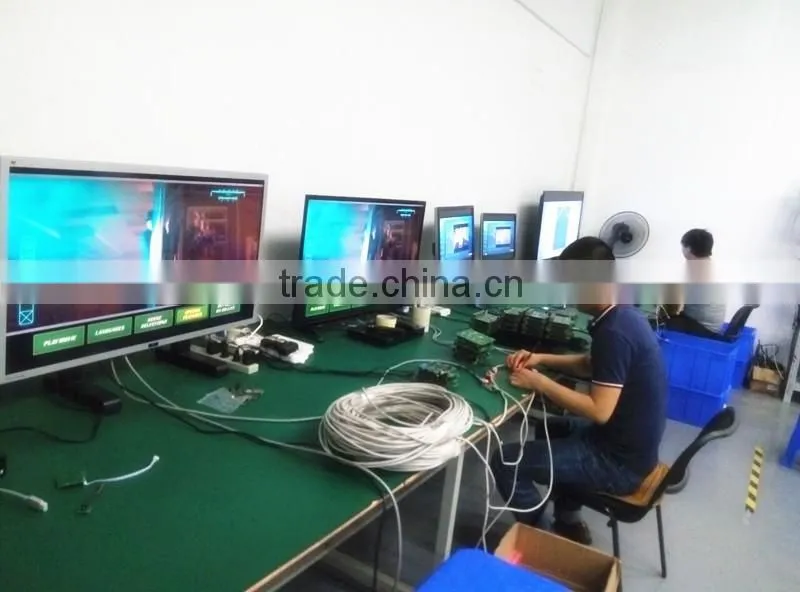

Production line Professional production lines and improve the process, prompted us to constantly improve the quality of products and delivery efficiency, I will continue to strive to improve in. | |

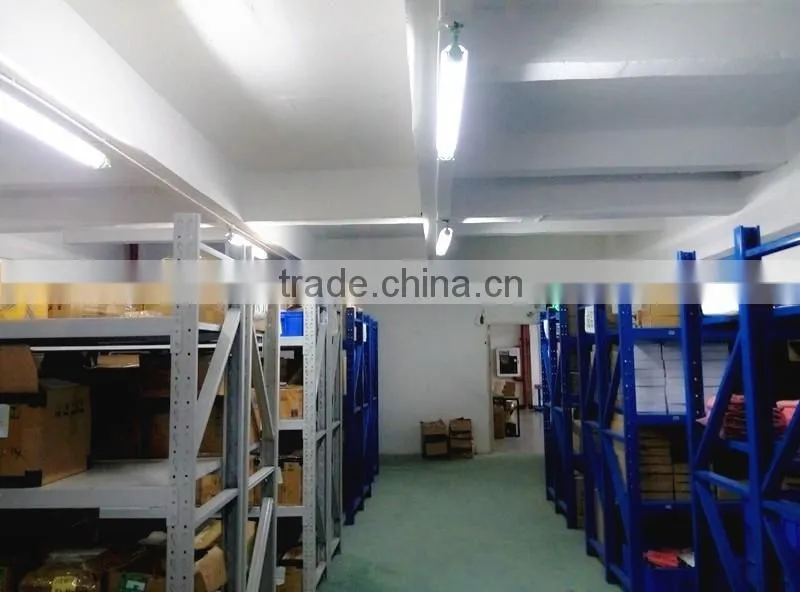

| Factory warehouse In cooperation with a number of companies, to ensure the timeliness of goods,The strict professional warehouse system to make our warehouse colleaguesarrangement efficiency and safety of goods transport. |
Our Services
After-sales service |
If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
Customer service |
Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
WHY DO YOU WANT TO CHOOSE OUR PRODUCT?
1.We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,
converter series products.
2.Quality is our culture. Pwaytek people always attached great importance to quality controlling from start
to finish.
3.We think our product will give an edge over your conpetitors.
4.If we are honor to become your supplier in China, you will enjoy the best after-sales service.
5.We can provide good service for many large company,such as Goldman Sachs.
Where is your factory ? Can I have a visit?
Add:5/Floor,Mantong Building,Dafu Road ,Aobei Community ,Guanlan Street,Longhua District,Shenzhen,Guangdong Province, China
, SHEN ZHEN SHI PIN WEI TECHNOLOGY LIMITED
Can I buy samples from your company?
We can provide samples .Contact me to talk about the details please.
Email:sales11 .
Skype: aapw662
whatsapp:+86 13927772549
How about the payment terms?
We accept paypal ,T/T, Western Union......
