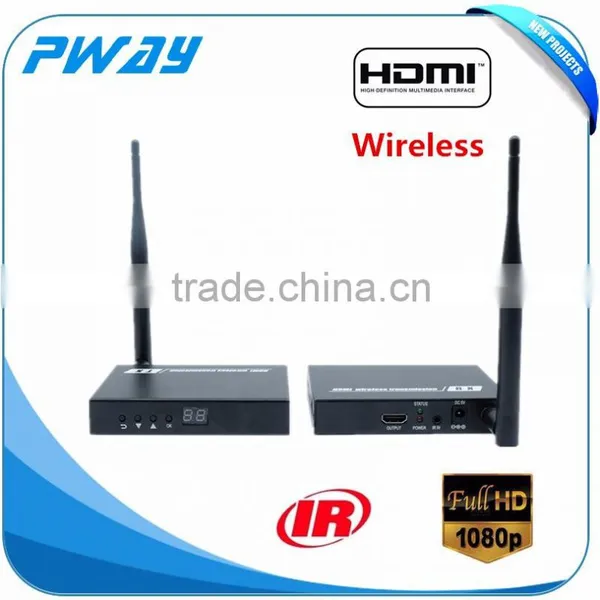

2.4GHz/5GHz Wireless HDMI video audio transmitter receiver 1080P wireless HDMI extender with loop out up to 50m/164ft
Description
This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 2.4GHz/5GHz band, with very low latency.
It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.
This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.
Features
- Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
- Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz.
- Support IR remote control function to control source device content from long distance.
- Transmitter have one local loop out.
- Low latency <200ms.
- Effective Range: 50m ( Line of sight ).
- No cable between sender (TX) and receiver (RX).
- Easy and clean installation.
- Plug & Play – full hardware design, no software is required.
- Transmission distance will be different due to the environment.
-
Wall, brick or glass will shorten the signal cover range or cause big signal loss
Specifications
Parameter
Description
Video
Standard Protocol
HDMI 1.3; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
Connector
HDMI-A
Impedance
100Ω
Compress Formats
H.264
IR
Interface
3.5mm earphone seat
Signal direction
unidirectional
IR frequency
38kHz
WIFI
Frequency
2.4GHz/5GHz
Transmission distance
50m
Wireless Standard
802.11AC
Other
Power supply
The power adapter: DC 5V/2A
Power dissipation
MAX 6W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
The warranty
1 year free warranty
Port name
Description
HDMI IN/OUT
HDMI signal input/output
IR IN/OUT
IR signal input/output
DC IN
Power adapter socket
Channel
Display Channel
Back Down UP OK Key
Adjust 2.4G/5GHz channel.
LED indicator
Description
STATUS
Video signal connection indicator
POWER
System power indicator
