Home > Products > New Products > New Product High-voltage Brushless DC 24V Heat Pump 5 m Amphibious Lift Circulation Pump

New Product High-voltage Brushless DC 24V Heat Pump 5 m Amphibious Lift Circulation Pump

FOB Price

US$ 5 - 18 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CZ
Model Number	Mould	Theory	Other, Centrifugal Pump, Single-stage Pump
Structure	Single-stage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Nonstandard
Fuel	Other, DC power, Battery, Solar panel	Pressure	Low Pressure
Application	Other, Submersible, Liquid transfer or circulating

Max Flow Rate	600L/H
2	Max Static Lift	6 M
3	Rated Voltage	12V / 24V
4	Impeller Type	Closed impeller
5	Motor Type	brushless DC motor
6	Liquid Temperature	0-100°C
7	Pump Theory	Centrifugal pump
8	Ambient Temperature	-10-50°C
9	Media	Pure Water
10	Waterproof Class	IP42 or Submersible (optional)
11	Use Place	Indoor Outdoor
12	Working Voltage Range	6~14V or 12~26V
13	Power Consumption	1~31W
14	Noise Class form 1M	40dB /Max
15	Ideal Life Time	20000 Hours
16	Working Mode	Continuous
17	OD of Inlet	2.3 mm
18	OD of Outlet	15 mm
19	Dimension	customized
20	Power Supply	DC power supply, battery, solar powered
21	Protection Functions	overload protection
22	Remarks	Can’t dry-running, not Self-priming

1. Hot water circulating system;

2. Electric water heater , shower.

3. Automotive /truck/bus/RV air conditioner

4. Water or oil cooling circulating system computer mattress cooling circulation

5. Circulating systems for homes, RV's and boats

6. Fuel cell systems

7. Oxygen generating systems

8. Juice machines

9. Aquariums and ponds

10. Vending machines

can customized and help you design

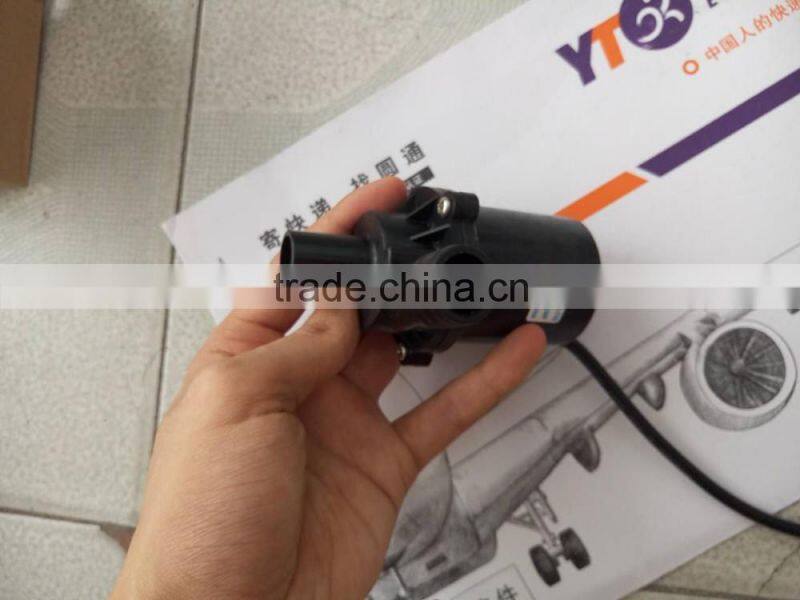

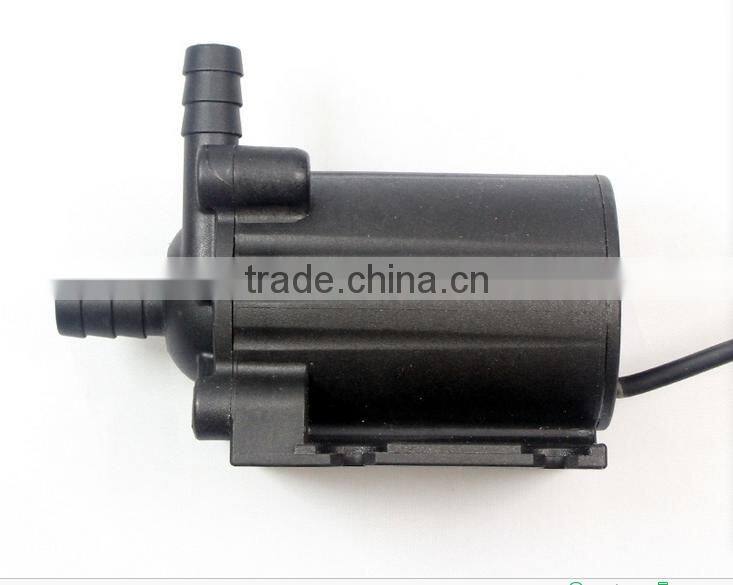

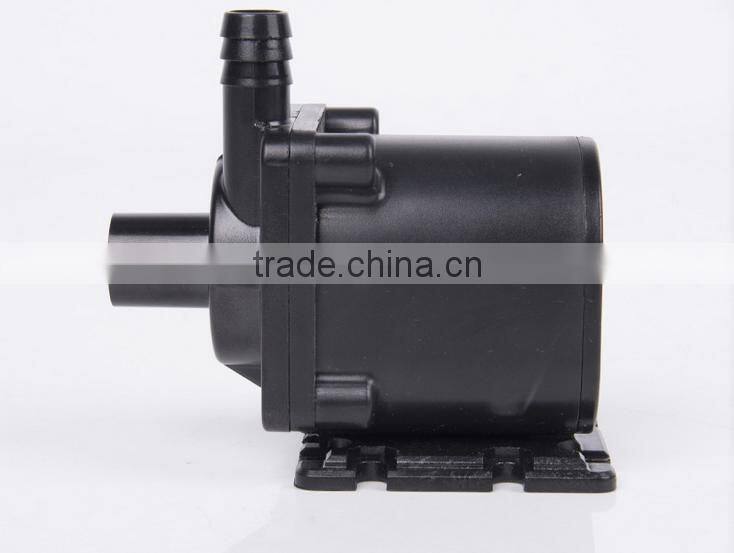

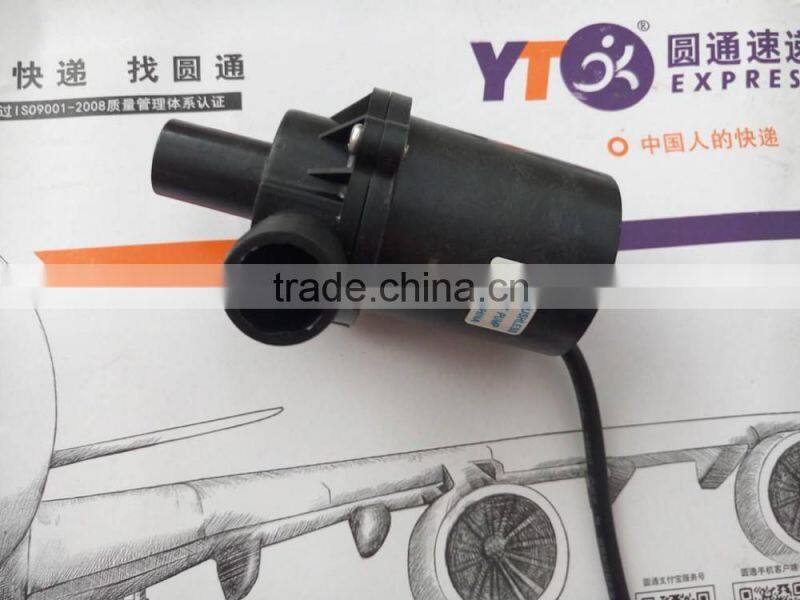

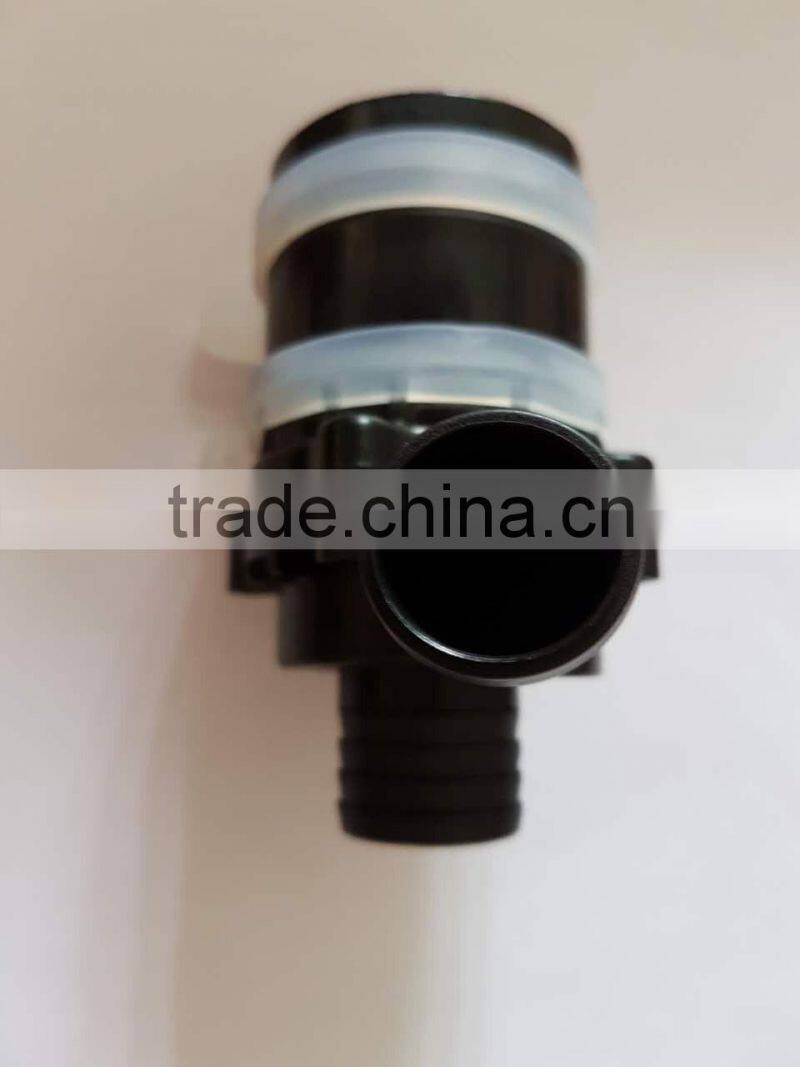

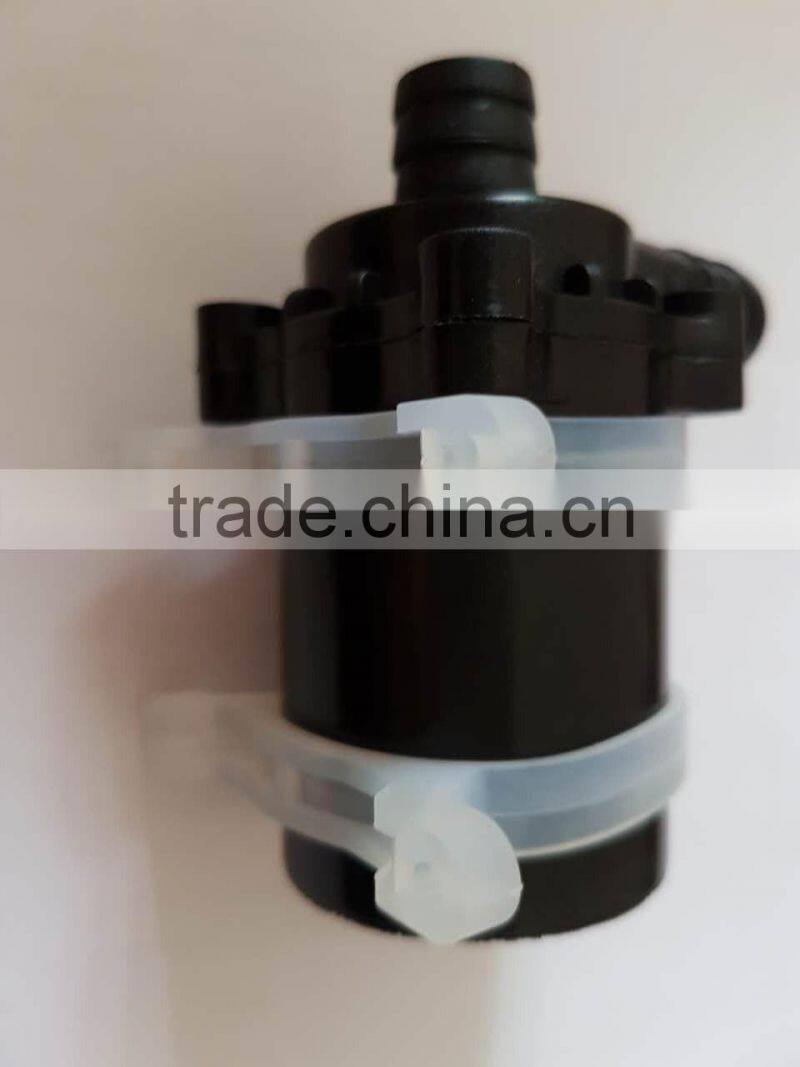

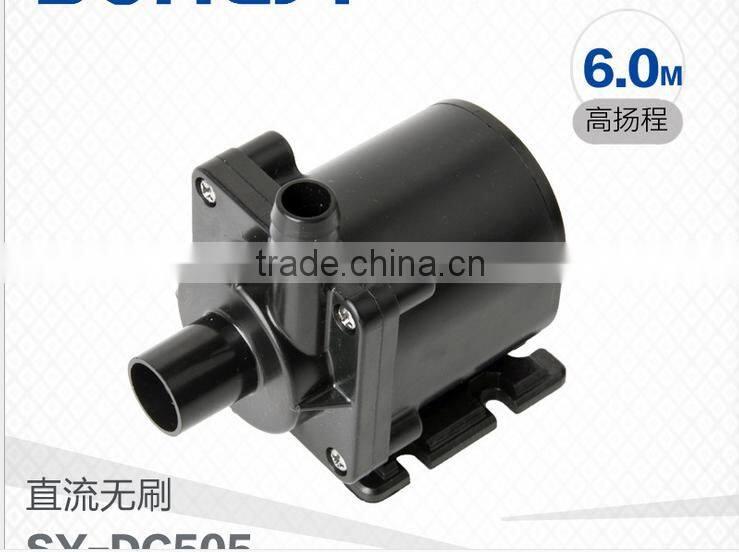

Pump picture

Packing Picture

CE certification:
