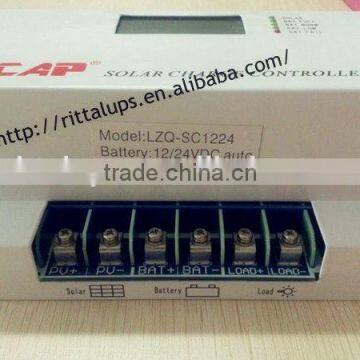

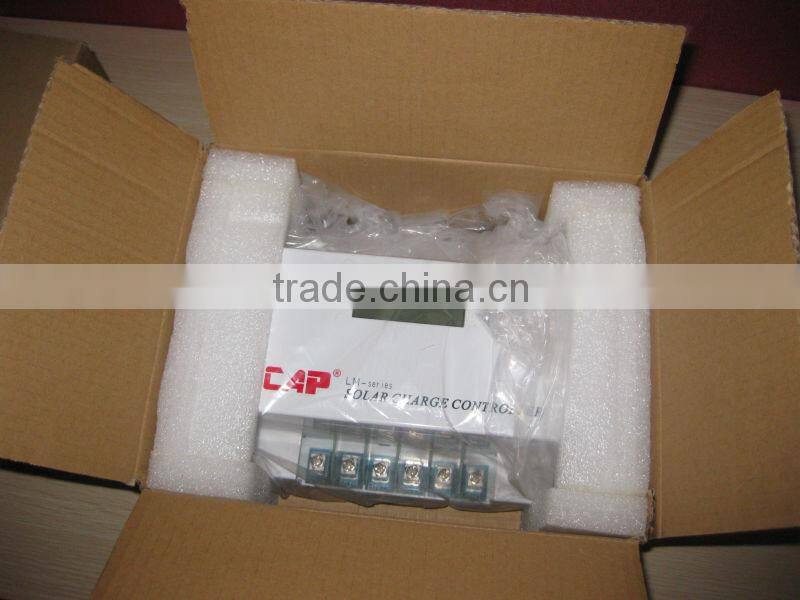

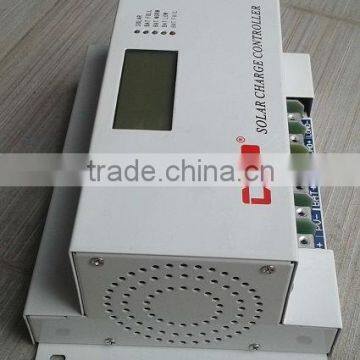

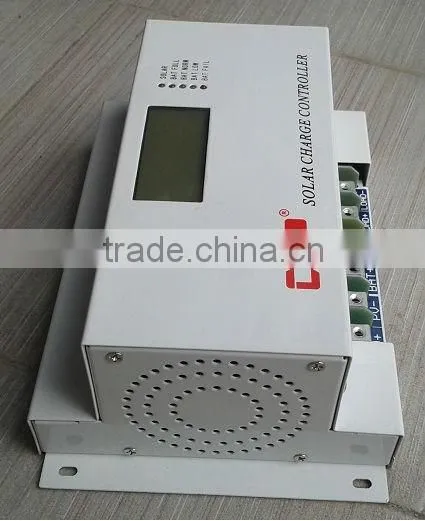

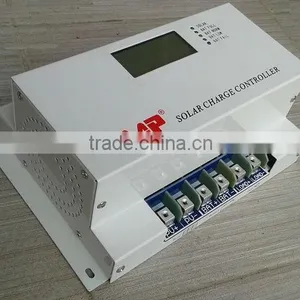

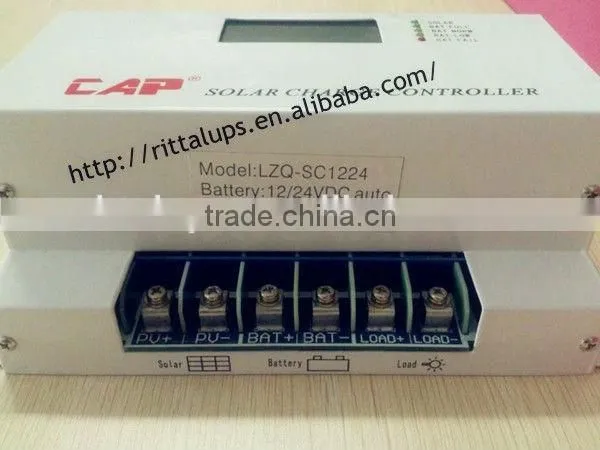

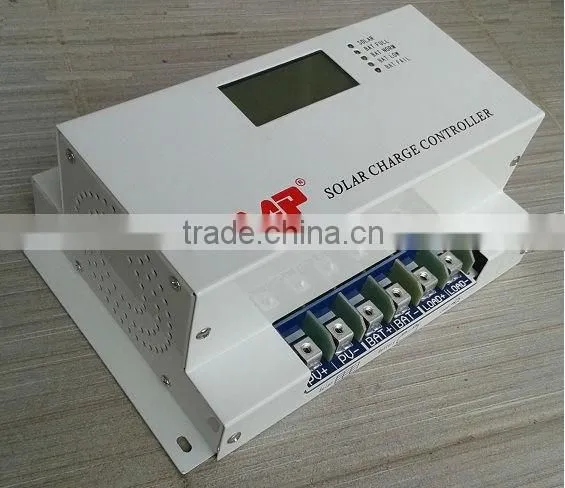

95% efficiency for 12V/24V/48V/96V LCD+MPPT solar controller
Introduction
The lates charging technologies, combined with a Fangpusun AtonIC state of charge determination which has been significantly improved once again, result in optimal battery maintenance and control of the module output of up to 900 Wp which can be connected to it.
A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user.
Product features:
- Hybrid controller
- State of charge determination with Fangpusun AtonIC (SOC)
- Automatic detection of voltage
- PWM control
- Multistage charging technology
- Load disconnection depending on SOC
- Automatic load reconnecti
- Temperature compensation
- Common positive grounding or negative grounding on one terminal
- Integrated self test
- Night light function
- Integrated self test
- Monthly maintenance charge
Electronic protection functions:
- Electronic protection functions
- Over charge protection
- Deep discharge protection
- Reverse polarity protection of load, module and battery
- Automatic electronic fuse
- Short circuit protection at module input
- Overvoltage protection at module input
- Open circuit protection without battery
- Reverse current protection at night
- Over temperature and overload protection
- Battery overvoltage shutdown
Displays:
- Graphical LCD display
- For operating parameters, fault messages, self test
- Operation
- Simple menu-driven operation
- Programming by buttons
- Manual load switch
Options:
- Prepayment interface
- External temperature sensor
- Alarm contact
Mounting and connecting:
The controller is intended for indoor use tect it from direct sunlight and place it in a dry environment.never install it in humid rooms(like bathrooms).the controller measures the ambient temperature to determine the charging ntroller and battery must be installed in the same room.
The controller warms up during operation,and should therefore be installed on a non flammable surface only.
remark:connect the controller by following the steps described below to avoid installation faults
Technical Data:
Model series |
LM series A
LM01A/LM02A/LM03A/LM04A
|
LM series B
LM01B/LM02B/LM03B/LM04B
|
Nominal voltage |
12/24 V, automatic recognition |
48/96 V, automatic recognition |
Boost voltage |
14.5/ 29.0 V (25'C),2 hours |
58/116V (25'C),2 hours |
|
Equalization
voltage
|
14.8/29.6 V (25'C),2 hours |
59.2/118.4V (25'C),2 hours |
Float voltage |
13.7/ 27.4 V (25'C) |
54.8109.6/ 27.4 V (25'C) |
|
Low Voltage
Disconnect
Function
|
11.4- 11.9/22.8-23.8 V controlled
by state of charge 11.0/ 22.0 V
controlled by voltage
|
45.64- 47.6/91.2-95.2V controlled
by state of charge 11.0/ 22.0 V
controlled by voltage
|
|
Load reconnect
voltage
|
12.8/25.6V |
51.2/102.4V |
|
Temperature
compensation
|
-4 mV/cell*K |
|
|
Max. solar panel
current
|
40A/50A/60A according to model number @ 50'C |
|
|
Max. load
current
|
40A/50A/60A according to model number @ 50'C |
|
Dimension |
230 x 150 x 85 mm |
|
Weight |
1.2kg |
1.3kg |
Max wire size |
20 mm2 |
|
Self consumption |
16mA |
30mA |
|
Ambient
temperature range
|
-40 to+ 50°C |
|
Case protection |
IP 22 |
|
