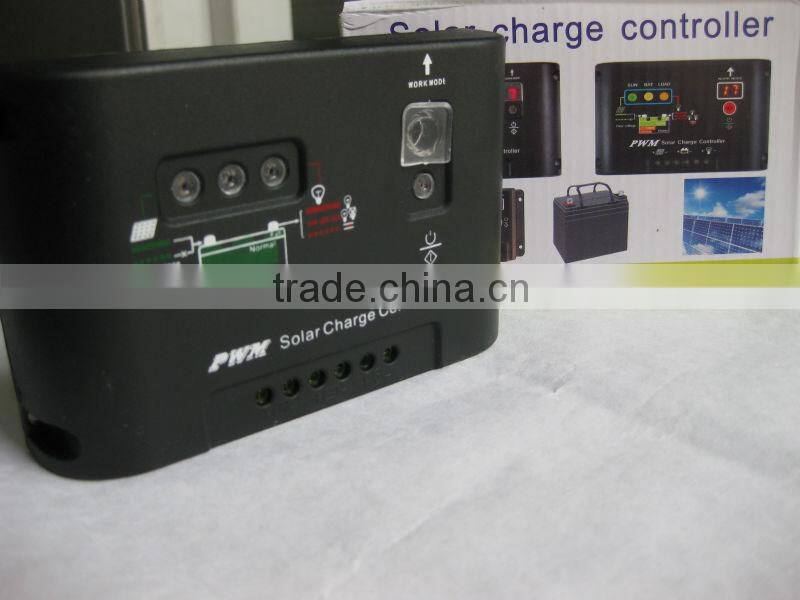

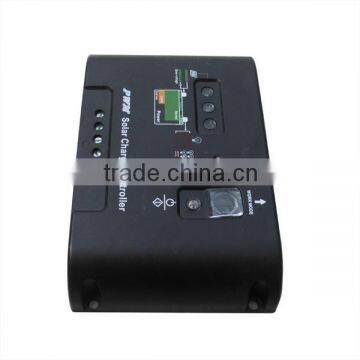

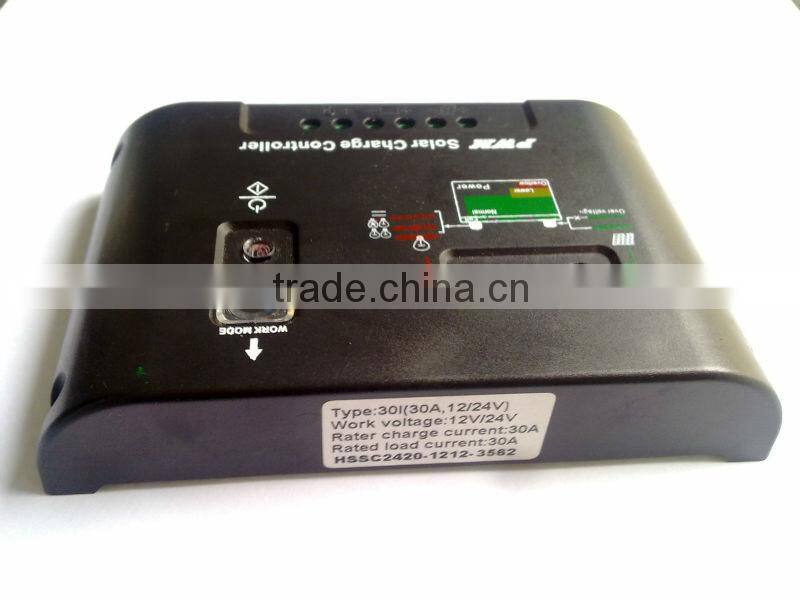

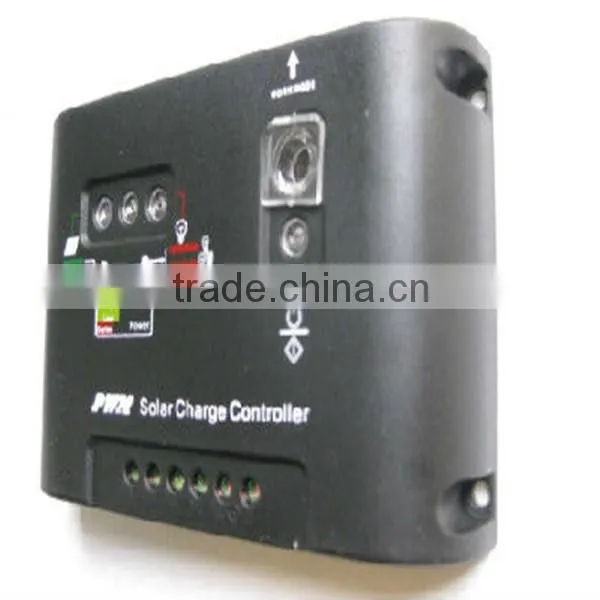

5A/10A/15A/20A/25/30A LED street light solar controller with PMW
Main features:
1. Intelligent control is realized by using microprocessor and dedicated control calculation.
2. Four load working modes: Pure lighting control, lighting control & timing control, hand operation and debug mode.
3. Scientific management of battery: as it is overcharged, the battery will get booster tension charge.
4. Comparing with the charging loops using diodes, the one that adopts double MOS series circuit control makes the voltage loss dropped by 50%. With the PWM fuzzy control in charging, the charge efficiency is improved a lot.
5. LED screen shows the working state of solar battery, storage battery and load.
All the protections are harmless to any parts and fuse. TVS thunder proof protection is also available. Non wire jumpers design improves the reliability and durability of the products.
6. Various protections include: over-charge, over-discharge and over-load, as well as unique electron short circuit protection and connection-reverse protection
7. Technical grade chips and precision components are adopted for all the controls.
8. Digital LED display and one button setup make the device easy to handle.
9. Discharge rate revision controls: Different discharge rate matches with different cut-off voltage, which is in compliance characters of storage battery.
Technical data:
Model | 01 | 02 | 03 |
Fixed charging current | 10A | 20A | 30A |
Rated load electric current | 10A | 20A | 30A |
System Voltage | 12V,24V,36V,48V | ||
Over-load protection | 1.3 multiple Nominal current,60 seconds or 1.6 Multiple Nominal current,5 seconds,Over-load protection movement | ||
Short circuit protection | 50A | 100A | 150A |
Transient current | 25A | 50A | 75A |
No-load loss | <5mA | ||
Charge return route pressure drop | ≤0.26V | ||
Electric discharge return route pressure drop | ≤0.15V | ||
Overpressure protection | 17V/12V;34/24V | ||
Operating temperature | Technical grade:-35C to +55C | ||
Promotion charging voltage | 14.6V;×2/24V;(Maintenance time:10min) | ||
Straight charging voltage | 14.4V;×2/24V;(Maintenance time:10min) | ||
Floating | 13.6V;×2/24V; | ||
Charge returns voltage | 13.2V;×2/24V; | ||
Temperature compensation | -5mV/C/2V | ||
Undervoltage voltage | 12.0V;×2/24V; | ||
Has put the voltage | 11.2V;×2/24V; | ||
Has put the returns voltage | 12.6V;×2/24V; | ||
Control mode | The way of PWM Pulse-duration modulation | ||
Size | 140×90.5×28.5mm | ||
Weight | 0.2kg | ||
