Pure sive wave system 3kw 4kw 5kw 6kw Solar Power system home

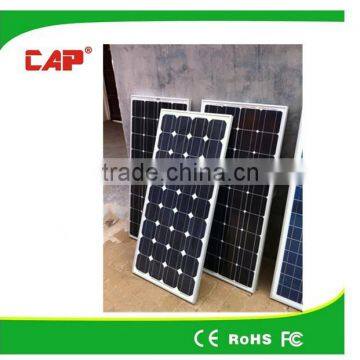

1. Solar panel

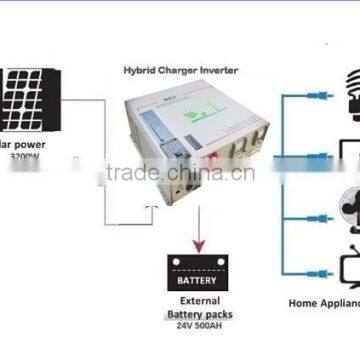

2. (1) Solar inverter hybrid with controller
2. (2) Solar charger controller + Power inverter
+
3 Solar battery:
Or portable solar system 1kw-3kw:
We Advantage:
1) Over 15 year experience in clean energy line, business covering solar street light, solar garden light, off grid solar system and on grid solar power system, etc;
2) Exporting for worldwide, with satisfied clients more than 50 countries;
3) Competitive price, excellent service, integrated certificate system;
1. CE, ISO,RHOS approved.
2. High conversion efficiency, high-transmission rate.
3. Energy saving, environmental-friendly.
4. Advanced technology, strict quality control system.
5. Easy installation, safe operation, free maintenance.
6. Low MOQ, fast delivery time, long service life
2kw off grid solar system
Ref No. |
OFF-GRID-2KW |
|
System Basic Information |
Solar Panel Rated Output Power |
1.6-2KW |
Suitable for Max Daily Power Consumption |
20KWH |
|
Rated Output AC Capacity |
2KW |
|
Solar pane | ||
Type |
Crystalline Silicon PV Module, A-class |
6-10pcs |
Max Power |
200w or 250W or 300w, example 250w |
|
Vmp |
30.5V |
|
Size |
1655*992*45mm |
|
Weight |
22.5kg/pc |
|
25 years power output guarantee (Note: 2pcs panels connect in series) | ||
MPPT Solar Controller | ||
Voltage |
12v/24v/48v |
1pc |
Current |
60A |
|
Warranty |
2 years |
|
mppt high-efficiency charging controller, LED + LCD display, intelligent control; Temperature compensation, various protections. | ||
Circuit Breaker |
Used for protection of controller, installed between PV array combiner and controller |
1pc |
2KW Inverter | ||
Input Voltage |
DC 24V |
1set |
Output Voltage |
AC220V/110V 1-phase |
|
Frequency |
50/60Hz |
|
Efficiency |
85% Or 95% |
|
Note: This inverter provides grid power switch and battery charging functions. | ||
Battery | ||
Capacities |
12V/200AH or 100AH or 150AH |
2-8pcs |
Service life |
5 to 6 years |
|
Warranty |
1 years |
|
Solar panel rack |
Flat-roof type mounting rack, steel material, anti-rust treatment |
1 set |
Cable |
100m |
|
Connectors |
2-terminal connectors, used for panels connection in parallel |
|
6kw off grid solar system
Ref No. |
OFF-GRID-6KW |
|
System Basic Information |
Solar Panel Rated Output Power |
6KW |
Suitable for Max Daily Power Consumption |
28KWH |
|
Rated Output AC Capacity |
8KW |
|
Solar pane | ||
Type |
Crystalline Silicon PV Module, A-class |
6-24pcs |
Max Power |
200w or 250W or 300w, example 250w |
|
Vmp |
30.5V |
|
Size |
1655*992*45mm |
|
Weight |
22.5kg/pc |
|
25 years power output guarantee (Note: 2pcs panels connect in series) | ||
MPPT Solar Controller | ||
Voltage |
12v/24v/48v |
1 ~2 pc |
Current |
80A |
|
Warranty |
2 years |
|
mppt high-efficiency charging controller, LED + LCD display, intelligent control; Temperature compensation, various protections. | ||
Circuit Breaker |
Used for protection of controller, installed between PV array combiner and controller |
1pc |
6KW Inverter | ||
Input Voltage |
DC 24V or 38V |
1set |
Output Voltage |
AC220V/110V 1-phase |
|
Frequency |
50/60Hz |
|
Efficiency |
85% Or 95% |
|
Note: This inverter provides grid power switch and battery charging functions. | ||
Battery | ||
Capacities |
12V/200AH or 100AH or 150AH |
6-16pcs |
Service life |
5 to 6 years |
|
Warranty |
1 years |
|
Solar panel rack |
Flat-roof type mounting rack, steel material, anti-rust treatment |
1 set |
Cable |
200m |
|
Connectors |
2-terminal connectors, used for panels connection in parallel |
|
|
Product features:
1. Price: EXW, FOB, CIF Any Port of China, nearest city Guangzhou city.
2. Payment: typically 30% by T/T, balance by T/T before shipment. Negotiable for big order.
3. Package: Export standard package suitable for tough handling and sea transport.
4. Delivery: Goods to be ready within 3-5 days depending on order quantity.
5. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
6. Certification: CE,ROHS,ISO9001
The lastest solar power system, portable for home & outdoor. It's with LCD Screen, USB, DC lighting output.
Q:when i order,when u can send them to me?
A:after confirm the payment,we can send u the sample in 5 days. in big quantity order,it take 8-15 work days that we can send the goods to u.
Q:will u lie to me?get the money and do not send the goods?
A:We are the factory,company,we do the business more than 10 years,and if over the delivery time have no any reason from us for delay,then u can complaint us on alibaba,and we will get the punishment from alibaba,then u can get your money back,and we will loss more than u had paid for do not worry about we do not send the goods.
Q: How many warranty years?
A: 3 years
