4000w singh phase 50hz 220v PV system solar & wind generator solar energy system
1. Solar panel

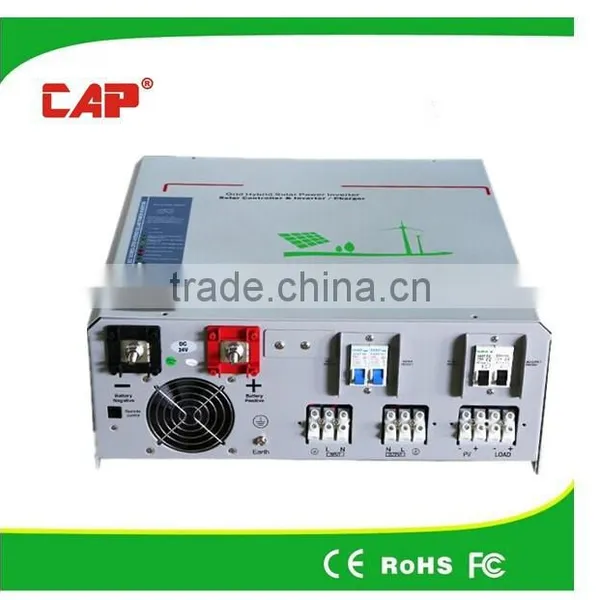

2. (1) Solar inverter hybrid with controller
2. (2) Solar charger controller + Power inverter
+
3 Solar battery:
Or portable solar system 1kw-3kw:
We Advantage:
1) Over 15 year experience in clean energy line, business covering solar street light, solar garden light, off grid solar system and on grid solar power system, etc;
2) Exporting for worldwide, with satisfied clients more than 50 countries;
3) Competitive price, excellent service, integrated certificate system;
1. CE, ISO,RHOS approved.
2. High conversion efficiency, high-transmission rate.
3. Energy saving, environmental-friendly.
4. Advanced technology, strict quality control system.
5. Easy installation, safe operation, free maintenance.
6. Low MOQ, fast delivery time, long service life
Ref No. |
OFF-GRID-4KW |
|
System Basic Information |
Solar Panel Rated Output Power |
2-4KW |
Suitable for Max Daily Power Consumption |
20KWH |
|
Rated Output AC Capacity |
4-5KW |
|
Solar pane | ||
Type |
Crystalline Silicon PV Module, A-class |
8-14pcs |
Max Power |
200w or 250W or 300w, example 250w |
|
Vmp |
30.5V |
|
Size |
1655*992*45mm |
|
Weight |
22.5kg/pc |
|
25 years power output guarantee (Note: 2pcs panels connect in series) | ||
MPPT Solar Controller | ||
Voltage |
12v/24v/48v |
1pc |
Current |
80A |
|
Warranty |
2 years |
|
mppt high-efficiency charging controller, LED + LCD display, intelligent control; Temperature compensation, various protections. | ||
Circuit Breaker |
Used for protection of controller, installed between PV array combiner and controller |
1pc |

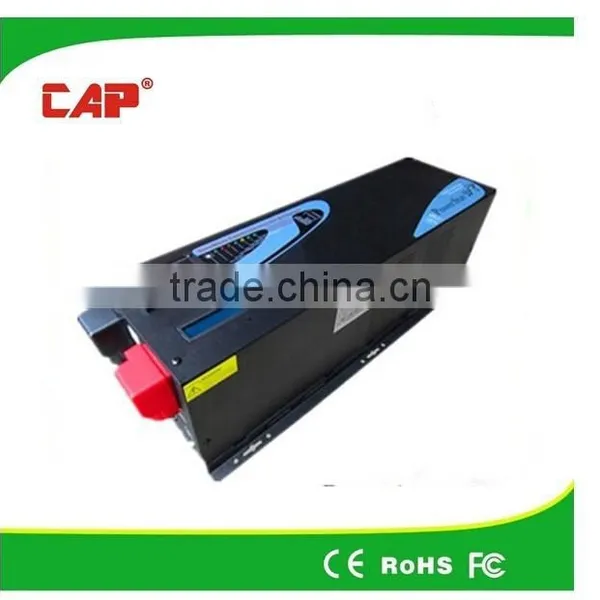

4KW Inverter | ||
Input Voltage |
DC 24V or 48V |
1set |
Output Voltage |
AC220V/110V 1-phase |
|
Frequency |
50/60Hz |
|
Efficiency |
85% Or 95% |
|
Note: This inverter provides grid power switch and battery charging functions. | ||
Battery | ||
Capacities |
12V/200AH or 100AH or 150AH |
4-12pcs |
Service life |
5 to 6 years |
|
Warranty |
1 years |
|
Solar panel rack |
Flat-roof type mounting rack, steel material, anti-rust treatment |
1 set |
Cable |
100m |
|
Connectors |
2-terminal connectors, used for panels connection in parallel |
|
Portable solar system:
MODEL |
115V Models |
230V Models |
|
|
|||||
OUTPUT |
|
|
|||||||
Power Levels crated at nominal inputs |
500VA/300W;1000VA/600W;2000VA/1200W; 2550VA/2000W;4000VA/3000W |
500VA/300W;1000VA/600W;2000VA/1200W; 2550VA/2000W;4000VA/3000W |
|
|
|||||
Output Voltage |
120V |
230V |
|
|
|||||
Phase |
Single phase |
|
|
||||||
Voltage Waveform |
Pure Sine Wave |
|
|
||||||
Power Factor |
0.6 |
|
|
||||||
Output Frequency(Synchronized to Mains) |
Auto Select for 50/60Hz |
|
|
||||||
Regulation (Nominal) |
10%-18% |
|
|
||||||
Regulation(Battery mode) |
±0.1HZ |
|
|
||||||
Transfer time |
8ms Typical |
|
|
||||||
INPUT |
|
|
|||||||
Nominal Voltage |
110V/120V Selectable |
220V/230V/240V Selectable |
|
|
|||||
Phase |
Single |
|
|
||||||
Voltage range |
90 - 145VAC or 170-280VAC ( Narrow Range ) |
|
|
||||||
50-145VAC / 90-280VAC (Wide Range) |
|
|
|||||||
BATTERY |
|
|
|||||||
Charger Current |
500VA/300W/12VDC:10 Amp + / - 1Amp;1000VA/600W/12VDC/:10Amp + / - 1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp |
|
|||||||
|
|
||||||||
Overcharge Protection |
500VA/300W: 15V +/- 0.3V charger stops and fault |
|
|||||||
1000VA/600W:15V +/- 0.6V charger stops and fault |
|
|
|
|
|||||
2000VA/1200W: 30V +/- 0.6V charger stops and fault |
|
|
|
|
|||||
EFFICIENCY |
|
|
|
||||||
AC to AC |
>95% |
|
|
|
|
||||
DC to AC |
>80% |
|
|
|
|
||||
INDICATOR |
|
|
|
||||||
AC Mode |
Green LED lighting |
|
|
|
|
||||
Battery Mode |
Yellow LED lighting |
|
|
|
|
||||
Battery Charging Mode |
Green LED flashing every 2 seconds |
|
|
|
|
||||
Overload |
Red LED flashing every 0.5 second |
|
|
|
|
||||
Fault |
Red LED lighting |
|
|
|
|
||||
AUDIBLE ALARM |
|
|
|
||||||
Low Battery at Battery Mode |
Sounding every 2 seconds |
|
|
|
|
||||
Overload |
Sounding every 0.5 second |
|
|
|
|
||||
Fault |
Continously sounding |
|
|
|
|
||||
Protection |
|
|
|
||||||
Full Rrotection |
Deep Discharge, Overcharge, and Overload protection |
|
|
|
|
||||
ENVIRONMENTAL AND SAFETY |
|
|
|
||||||
Operating Temperature |
Up to 1500 meters:0 °C to 40°C (32°F to 104°F) |
|
|
|
|
||||
Transit/storage Temp. |
15°C below zero to 50°C (5°F to 131°F) |
|
|
|
|
||||
Relative Humidity |
0 - 90% non condensing |
|
|
|
|
||||
Quality control system |
ISO 9001:2000, ISO 14002-2004 |
|
|
|
|
||||
PHYSICAL |
|
|
|
||||||
Appearance |
Size(mm)L x W x H |
224 x 255 x 80 |
|
|
|
|
|||
Weight(Kg) |
500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg; 2550VA/2000W: 10kg; 4000VA/3000W: 10kg; |
|
|
|
|
||||
Carton BOX(mm)L x W x H |
414*311*560(3pcs) |
|
|
|
|
||||
Gross Weight Weight(Kg) |
500VA / 300W:7.4kg ; |
|
|
|
|
||||
|
|||||||||
Product features:
1. Price: EXW, FOB, CIF Any Port of China, nearest city Guangzhou city.
2. Payment: typically 30% by T/T, balance by T/T before shipment. Negotiable for big order.
3. Package: Export standard package suitable for tough handling and sea transport.
4. Delivery: Goods to be ready within 3-5 days depending on order quantity.
5. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
6. Certification: CE,ROHS,ISO9001
The lastest solar power system, portable for home & outdoor. It's with LCD Screen, USB, DC lighting output.
Q:when i order,when u can send them to me?
A:after confirm the payment,we can send u the sample in 5 days. in big quantity order,it take 8-15 work days that we can send the goods to u.
Q:will u lie to me?get the money and do not send the goods?
A:We are the factory,company,we do the business more than 10 years,and if over the delivery time have no any reason from us for delay,then u can complaint us on alibaba,and we will get the punishment from alibaba,then u can get your money back,and we will loss more than u had paid for do not worry about we do not send the goods.
Q: How many warranty years?
A: 3 years
