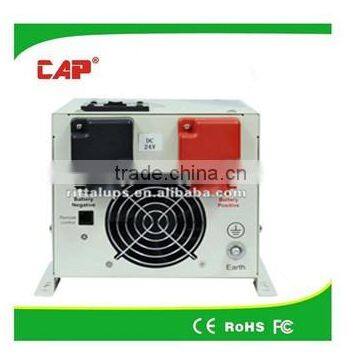

Pure sine wave inverter/Solar inverter/Power inverter/Home inverter 1KW to 12KW, CE approved, 10 years manufacturer
Power inverter--Pure sine wave off grid inverter
Features:
- Pure sine wave output, available for sensitive load
- 4-step progressive charging, 7 battery type selector
- Fast and powerful charger with 30A and 70A
- Accept generator’s energy output
- High power factor
- Automatically transfer between battery and line modes
- Microprocessor control guarantees high reliability
- Bypass without battery connected
- Remote control function
Protection against:
- Over load, over temperature, over charging, low battery
- Reverse connection(optional by hard connector)
- blackouts
| Model No. | 1001(2) |
2001(2,4) |
3001(2,4) |
4002(4) |
5002(4) |
6002(4) |
7002(4) |
8002(4) |
10kw |
| Nominal Power | 1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
7000w |
8000w |
10000w |
| AC Input | |||||||||
| Phase & waveform | Single phase & sinewave | ||||||||
| Voltage | 120VAC/230VAC | ||||||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | ||||||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | ||||||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | ||||||||
| Line high Transfer | 135V±4%/253±4% | ||||||||
| Line high Return | 127V±4%/243±4% | ||||||||
| Frequency | 50Hz or 60Hz (auto sensing) | ||||||||
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | ||||||||
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | ||||||||
| Output | |||||||||
| Phase & waveform | Single phase & sinewave(bypass mode sync to input) | ||||||||
| Voltage | 230VAC(bypass mode sync to input) | ||||||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | ||||||||
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | ||||||||
| Crest Power | 3 times of ratings | ||||||||
| Short Circuit Protection | Yes,shutdown after 10 minutes | ||||||||
| Power Factor | 0.9-1.0 | ||||||||
| DC Input | |||||||||
| Battery Voltage | 12V/24V |
12V/24V/48V |
24V/48V |
48v/96v |
|||||
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V, 90v for 96v | ||||||||
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V, 90v for 96v | ||||||||
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V, 90v for 96v | ||||||||
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V, 128v for 96v | ||||||||
| Max Charging Current | 70A35A100A | ||||||||
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V, 126.8 for 96v | ||||||||
| Transfer Efficiency | |||||||||
| line Mode | >95% | ||||||||
| Battery Mode | >88% | ||||||||
| power saver | Available when the load is less than 25 Watts | ||||||||
| Indicators | |||||||||

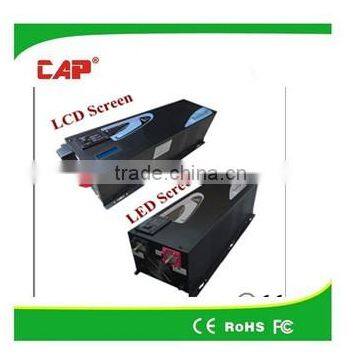

| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded shutdown(red lighting),LED7 Saving Mode(green lighting) |
||||||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | ||||||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is |
||||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105C and shutdown after 30 seconds. | ||||||||
| Protections | low battery,over charging,over temp,over load | ||||||||
| Communications | RS-232/USB(custom-made) | ||||||||
| Enviromental | |||||||||
| Operating Environment | 0-40C,0-90%RH(non-condensing) | ||||||||
| Audible Noise | <60dB | ||||||||
| Physical | |||||||||
| Net Weight(KG) | 18 |
20 |
22 |
35 |
38 |
40 |
58 |
65 |
72 |
| Dimension,D X W X H(mm) | 218X179X442 |
218X179X598 |
|||||||
| *Specifications are subject to change without prior notice. | |||||||||
The solar inverter has been made to 12kw, 15kw, 20kw pls contact for the detail information.
Off grid Pure sine wave Inverter
1,Pure sine wave output
2,Available for sensitive load
3,14-step progressive charging
4, 7 battery type selector
5, OEM & ODM Servicer from Manufacturer
10kw Inverter, 12kw, 15kw off grid inverter design:
1,It widely applied in wind generator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.
Pure sine wave Inverters has no repellency for the load,
2,which can work well with fluorescent lamp, electromotor, microwave ovens, Induction cooker, refrigerator, air conditions and transformer.
With protection function like, DC input protect When pole wrong, AC input protection against over and low voltage, Output protection against over load, short circuit Protection, DC input and AC output completely electric insulation.
Please contact with us for more specification and details on it.
If you can cooperate with us, we will be honored and you will benefit from:
l - The good construction warranty-2 years
l - Your client satisfied on the right schedule and quality
l - Your can get good reputation from your market and obtain more orders
l - Our professional service before and after sale
l - The free samples after your first 3 orders
l - The reasonable price
l - Any questions from you are welcome and will be replied in 24 hours
Pls feel free to contact me for favorable price!!
Miss Fu
Skype: rittalups5
QQ: 2355552470
Tel: +86-13580432763 (whatsapp/Wechat)
www.rittalups.en.china.cn
Email Me!!
Company Product:
Power inverter 1kw-20kw
Solar inverter: 1kw-12kw
High frequency solar inverter: 200w-3000w
On Grid /grid tie inverter: 1kw-6kw
Solar controller: 10A-100A (MPPT function)
Portable solar energy system: 100w-3kw
Pls contact us freely!
