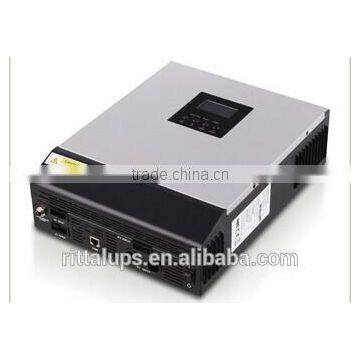

2kva off Grid Solar Inverter With Charger

2kva off Grid Solar Inverter With Charger thumbnail-1
2kva off Grid Solar Inverter With Charger thumbnail-2
2kva off Grid Solar Inverter With Charger photo-1
2kva off Grid Solar Inverter With Charger photo-2
US$ 159 - 689 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CAP
Model Number:
2kva
Contact Supplier Request Quote Chat Now
Guangzhou Helizhanchuang Electric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guagngzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CAP
Model Number 2kva
Output Power 1 - 200KW
Output Type Single
Size 442x218x179 CM
Weight 8KG
Input Voltage 48V
Output Voltage 220V or 230v
Type DC/AC Inverters
Output Frequency 50/60HZ
Output Current Load

Name:2kva off grid solar  inverter with charger

Features:

  • Pure sine wave output, available for sensitive load
  • 4-step progressive charging, 7 battery type selector
  • Fast and powerful charger with 30A and 70A
  • Accept generator’s energy output
  • High power factor
  • Automatically transfer between battery and line modes
  • Microprocessor control guarantees high reliability
  • Bypass without battery connected
  • Remote control function
MODEL 1Kva 2Kva 3Kva 4Kva 5Kva
Default Battery System Voltage 12VDC 24VDC 24VDC 48VDC 48VDC
INVERTER
OUTPUT		 Reted Power 1000VA/
800W		 2000VA/
1600W		 3000VA/
2400W		 4000VA/
3200W		 5000VA/
4000W
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 230VAC±5%
Inverter Efficiency (Peak) 90% 93%
Transfer Time 10ms(For Personal Computers)
20ms(For Home Appliances)
AC
INPUT		 Voltage 230VAC
Selectable Voltage Range 170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY Nominal voltage 12VDC 24VDC 48VDC
Floating Charge Voltage 13.5VDC 27VDC 54VDC
Overcharge Protection 15VDC 30VDC 60VDC
SOLAR
CHARGER
&
AC CHARGER		 Max PV Array Power 400W 800W/1600W 3200W
Maximum PV Array Open Circuit Voltage 30VDC 60VDC 145VDC
Standby Power Consumption 1W 2W 2W
Maximum Solar Charge Current 25A 25A/60A 60A
Maximum AC Charge Current 10A or 20A 20A or 30A 60A
Maximum Charge Current 45A 55A/90A 120A
MECHANICAL
SPECIFICATIONS		 Dimension,WxHxD(mm) 240×316×95 272×355×100 297.5×468×125
Net Weight(kg) 5 6.4 6.9 9.8
OTHER Humidity 5% to 95% Relativ Humidity (Non-condensing)
Operating Temperature 0℃-55℃
Storage Temperature -15℃-60℃
Loading (20GP/40GP/40HQ) 380PCS/760PCS/920PCS



2kva off grid solar inverter with charger2kva off grid solar inverter with charger

 2kva off grid solar inverter with charger

2kva off grid solar inverter with charger

2kva off grid solar inverter with charger

2kva off grid solar inverter with charger
