5kw Grid Tie Solar System on the Grid

5kw Grid Tie Solar System on the Grid thumbnail-1
5kw Grid Tie Solar System on the Grid photo-1
US$ 1,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
rittalups
Model Number:
2kw-6kw
Contact Supplier Request Quote Chat Now
Guangzhou Helizhanchuang Electric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name rittalups
Model Number 2kw-6kw
Output Power 1 - 200KW
Output Type Single
Weight 25kgs
Input Voltage 110v/120v
Output Voltage 220v/230v
Type DC/AC Inverters
Output Frequency 47-55hz
Output Current 12A

Name: 5kw grid tie solar system on the grid

Detailed Product Description



1.  protections: protection against  high voltage and low voltage protections, overload protection, battery reverse polarity ,ect.



2. Strong ability of resisting concussion, can load all kinds of electric apparatus and industry equipments, such as air-conditioner , refrigerator , TV sets, fans, washing machine, fill water electric motor , Rolling gate , ect

Data:

Model

T-1500

T-2000

T-3000

T-5000

Nominal input voltage

MPPT1

380V DC

380V DC

380V DC

380V DC

MPPT2

380V DC

380V DC

Max input voltage

MPPT1

600V DC

600V DC

600V DC

600V DC

MPPT2

600V DC

600V DC

MPPT operating Voltage range

From 60 V dc to 580 V dc

MPPT efficiency

>99%

Array configuration

1

1

2

2

Max. operating current

MPPT1

12A

15A

18A

20A

MPPT2

18A

20A

Max. short circuit current

MPPT1

14A

18A

21A

24A

MPPT2

21A

24A

input power range

MPPT1

30W-1600W

30W-2300W

30W-3000W

30W-4300W

MPPT2

30W-3000W

30W-4300W

Max. input power

1700W

2300W

MPPT1+MPPT2≤4KW

MPPT1+MPPT2≤5.6KW

Max. output power

1600W

2100W

3600W

5200W

Grid voltage maximum range

From 205 to 264Vac

Nominal grid voltage

230Vac

Nominal grid frequency

50 Hz

Nominal output current

7A

9A

16A

23A

Maximum efficiency

>97%

Internal consumption during stand-by

<3W

Operating ambient temperature

From-25°C to +60°C (from-13°F to 122°F)

Enclosure protection level

IP22

Audible Noise

<10dB

Dimensions (H x W x D):

 388*145*210mm

 473*280*386mm

 473*280*431mm

Weight

 15

15

15

 15

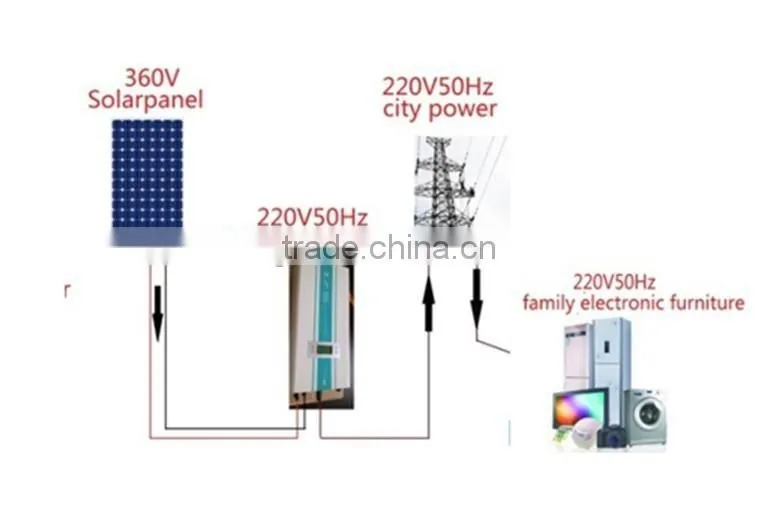

 5kw grid tie solar system on the grid5kw grid tie solar system on the grid5kw grid tie solar system on the grid

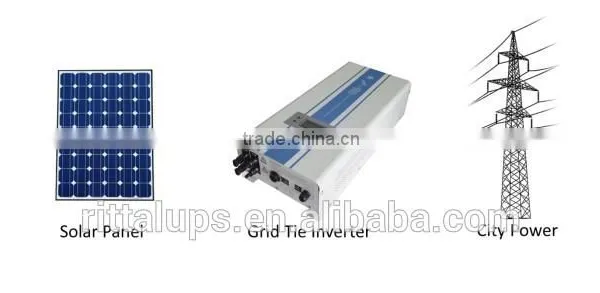

5kw grid tie solar system on the grid

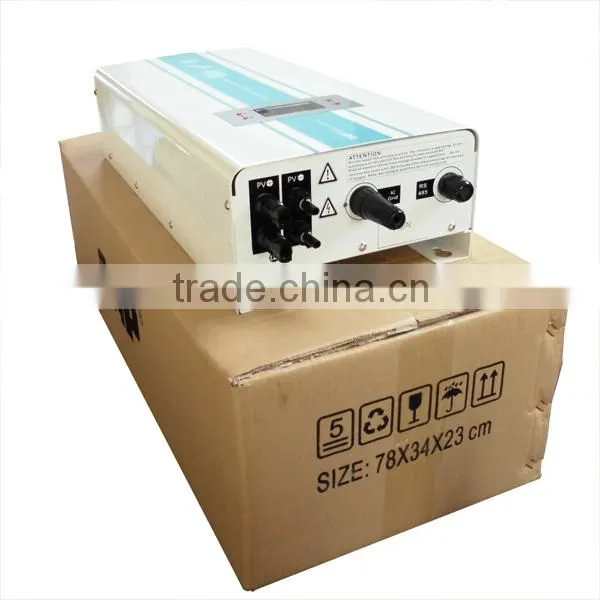

   5kw grid tie solar system on the grid
