Specifications
Barbed wire making machinemotor power: 2.2kw
unit wire dia.: 2.2-3.0mm
thron wire dia.: 1.8-2.2mm
barbed space: 4''/5kgs/h

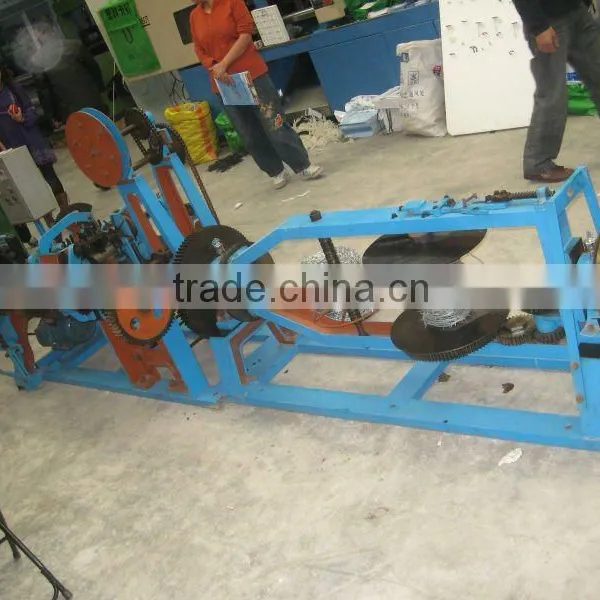

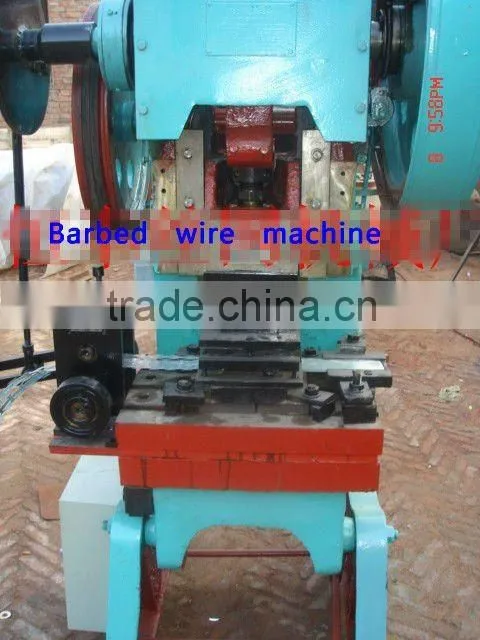

Barbed wire making machine
CS-A barbed wire machine is to used to produce double twisted barbe wire ,
so it is also called double twisted barbed wire mchine CS-A Model double twisted barbed wire machine
Action smoothly, low noise, the production high safety, energy consumption province, high production efficiency,
Barbed wire machine is divided into: a single strand of barbed wire machine, double barbed wire machine, positive and negative twist barbed wire machine, the blade gill machine
1, single strands of barbed wire machine
A single strand of barbed wire nets machine around the silk and silk two parts of the connection, and supporting three put silk plate, this machine action smoothly, low noise, the production high safety, energy consumption province, high production efficiency, and the use of advanced electronic counting control.
2, double strands of barbed wire machine
Double strands of barbed wire nets machine around the silk and silk by the twisting two parts to form, and supporting four put silk plate, the machine parts work coordination, action flat this machine mainly applicable to the production of more strands of barbed wire netting machine, its use materials should comply with the firm, flexible operation and reliable
3, positive and negative twist barbed wire machine
Positive and negative twist barbed wire machine is mainly used in the production of positive and negative double twist barbed wire netting machine, its use materials should comply with the GB/T343-94 standard requirement "general purpose of low carbon steel wire", this machine is widely used in the production of products for defense, railway, highway, agriculture and animal husbandry and do with protection, fence.
Item |
CS-A |
Motor |
3kw |
Rated output |
70kg/h |
Weight |
1500kg |
Overall Dimension |
1900mm×1300mm×980mm |
Wire collection part size |
1800×750mm×750mm |
Barb pitch spacing |
76mm --- 102mm |
Twist |
4 |
Strand Diameter |
2.2-2.8mm |
Wire Diameter |
1.8-2.2mm |
Rotating Speed of Drive shaft |
432r/min |
