Hexagonal Wire Netting Machine

Hexagonal Wire Netting Machine thumbnail-1
Hexagonal Wire Netting Machine photo-1
US$ 4,500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
TUO HUA
Model Number:
THJQ 037
Contact Supplier Request Quote Chat Now
Hebei Tuohua Metal Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name TUO HUA
Model Number THJQ 037

Specifications

Hexagonal wire Netting machine
1.Raw material :galvanizing wire
2.wire diameter:2.0-4.0mm
3.Output capacity:Max.225m/hour

Hexagonal wire Netting machine

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes.

The possible coatings are heavily galvanized and zinc.

For high corrosion resistance, zinc and PVC, galfan coated wire is available
Specifications:
1) Mesh sizes:
  a) 60 x 80mm , 60 x 80mm and 120 x 150mm
  c) 80 x 100mm, 80 x 100 and 80 x 120mm
  e) 80 x 100mm and 160 x 180mm
  f) 100 x 120mm, 100 x 120mm and 100 x 140mm
  h) 50 x 70mm, 50 x 70mm and 100 x 140mm
  j) 120 x 150mm, 180 x 200mm and more
2) Max. netting width: 4300mm
3) Max. galvanized wire diameter: 3-4mm
4) Max PVC wire diameter: 4.1-5.1mm
5) Power: 22kW
6) Size: 7200 x 1400 x 2400mm
7) Weight: 15MT
8) Theoretic output: 165 - 500 m/hr
9) Automatic stop system (option): when the coiling finished or wire broken, the
machine will stop automatically
10) Infrared ray safety protection system (option)
11) Automatic oil system

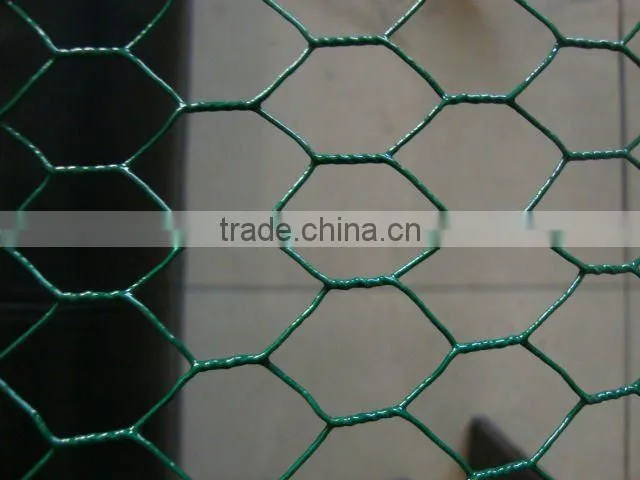

Hexagonal wire Netting machine

 Specifications tabel for hexagonal wire netting
Mesh Opening
(mm)		 Maximun Width
(mm)		 Maximum Wire Diameter (mm) PVC wire Diameter
(mm)		 Theoretic output
(m/hr)		 Overall size L x W x H(mm) Total Weight
(T)		 Motor Power
(kw)
50 x 70 4300 3 4 150 7200 x 1400 x 2400 15 22
60 x 80 4300 3 4.1 165 15 22
80 x 100 4300 3.2 4.3 195 15 22
100 x 120 4300 4 5 225 15 22
50 x 70 and 100x 140 4300 3 and 4 4and 5 150 and 255 15 22
60 x 80and 120 x 150 4300 3 and 4 4.1 and 5.1 165 and 216 16 22
80 x 100 and 160 x 180 4300 3.2 and 4 4.3 and 5 195 and 390 16 22
80 x 100and 80 x 120 4300 3.2 4.3 195 and 220 16 22
100 x120and 100 x 140 4300 4 5 225 and 255 16 22
120 x 150 4300 4 5 216 15 22
180 x 200 4300 4 5 500 14 22
