Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 150W Dual Output Power Supply

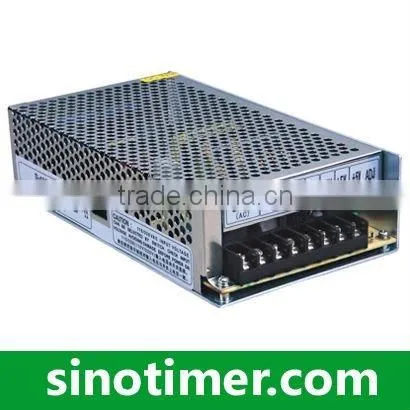

150W Dual Output Power Supply

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

X&Y

Model Number:

D-150W

Contact Supplier Request Quote Chat Now

Yueqing Xinyang Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name X&Y

Model Number D-150W

Output Power 101 - 200W

Output Type Dual

Input Voltage Other, Universal AC input: 90-264VAC

Output Voltage 12v

Specifications

150W Dual Output power supply
100%full load burn-in test
2 years warranty

150W Dual Output power supply

Universal AC input: 110/220VAC± 20%
Protections: Short circuit/Overload
Fixed switching frequency at 47-63Hz
Low cost, high reliability
Size: 199*110*50mm
1year warranty

Model	D-150C		D-150D
Specification	CH1	CH2	CH1	CH2
Specification	+15V 5A	-15V 5A	+12V 6A	-12V 6A
Wave and noise	70mVp-p	180mVp-p	75mVp-p	150mVp-p
Inlet stability	± 0.5%	± 1%	± 0.5%	± 0.5%
Load stability	± 0.5%	± 4%	± 0.5%	± 4%
Efficiency	78%		80%
Adjustable range for DC voltage	CH1: +10, -5%		CH1: +10, -5%
AC input voltage range	85-264VAC 47-63Hz 120-370VDC
AC input voltage range	Cold-start current 30 A/115V 60A/230V
OverLoad protection	105%-150% hiccup mode, auto-recovery
OverLoad protection	CH1.5.75V-6.75V
Setup, rise, hold up time	800ms50ms10ms/115VAC300ms, 50ms, 80ms/230VAC
Withstand voltage	I/P-O/P: 3KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5Kv 1minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
Working temperature	-10-+/-50
Safety standards	Design refer to GB4943, UL60950, EN60950
EMC standards	Design refer to GB9254, EN55022 class B
Weight	0.9kg
