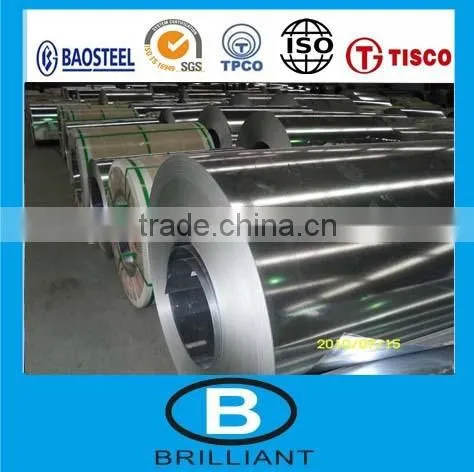

High Quality DC01 /SPCC Crc Cold Rolled Steel Coils Competitive Price

Name: High Quality DC01 /SPCC Crc Cold Rolled Steel Coils Competitive Price
Brand: brilliant steel
SKU: 134909491
Availability: InStock

High Quality DC01 /SPCC Crc Cold Rolled Steel Coils Competitive Price thumbnail-1

High Quality DC01 /SPCC Crc Cold Rolled Steel Coils Competitive Price photo-1

US$ 550 - 650 MOQ: 25 Tons

Key Specifications

Get Latest Price

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Grade:

SPCC-SD,SPCC 01

Thickness:

0.14-2mm

Contact Supplier Request Quote Chat Now

Tianjin Brilliant Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard AISI, ASTM, BS, DIN, GB, JIS

Grade SPCC-SD,SPCC 01

Thickness 0.14-2mm

Place of Origin Tianjin, China

Brand Name brilliant steel

Model Number various

Type Steel Coil

Technique Cold Rolled

Surface Treatment Other, as request

Application Ship Plate

Special Use Wear Resistant Steel

Width 600-1500,mm

Length in coil

Specifications

1.China manufacturer
2.Comepetitive price
3.Best service
4.Fast delivery

1.specification

Grade	Thickness	Width	Length	Remarks
DC01/SPCC-SD SAE1008	0.3-2.5mm	1000-1500mm	Coil/sheet	Commercial grade
SPCC-1B/D	0.12-2.0	600-1500	Coil	Full hard
SPCC/08AL	0.12-1.5mm	600-1000mm	Coil/sheet	Commercial grade
SPCD/DC03	0.4-2.5mm	1000-1500mm	Coil/sheet	DDS
SPCE/DC04	0.4-2.5mm	1000-1500mm	Coil/sheet	DDS
SPCF/DC05	0.4-2.5mm	1000-1500mm	Coil/sheet	EDDS

Tolerance of thickness:

Thickness, mm	<630	630~<1000	1000~<1250	1250~<1600	≥1600
<0.25	±0.03	±0.03	±0.03	-	-
0.25~<0.40	±0.04	±0.04	±0.04	-	-
0.40~<0.60	±0.05	±0.05	±0.05	±0.06	-
0.60~<0.80	±0.06	±0.06	±0.06	±0.06	±0.07
0.80~<1.00	±0.06	±0.06	±0.07	±0.08	±0.09
1.00~<1.25	±0.07	±0.07	±0.08	±0.09	±0.11
1.25~<1.60	±0.08	±0.09	±0.10	±0.11	±0.13
1.60~<2.00	±0.10	±0.11	±0.12	±0.13	±0.15
2.00~<2.50	±0.12	±0.13	±0.14	±0.15	±0.17
2.50~<3.15	±0.14	±0.15	±0.16	±0.17	±0.20
≥3.15	±0.16	±0.17	±0.19	±0.20	-

Tolerence of width

width, mm

<1250

≥1250

Hardness:

HRB	50	65	74	85
Thickness, mm	>2.40	>1.95	>1.68	>1.35

2.Chemical composition.

Purpose	Grades	Yield strength/R_e/MPa⁽¹⁾	Tensile strength/ R_m/MPa	Elongation/A₈₀/%⁽²⁾	r₉₀	n₉₀
Commercial	DC01	≤280	270-410	≥28	-	-
Drawing	DC03	≤240	270-370	≥34	≥1.3	-
If the yield point is not pronounced, the value applies to R_p0.2; if the yield point is pronounced, the value applies to R_el. When the thickness is less than or equal to 0.7 mm and greater than 0.5 mm, the minimum value for elongation is reduced by 2 units. For a thickness less than or equal to 0.5 mm, the minimum value is reduced by 4 units.

Purpose	Grades	Yield strength/R_e/MPa⁽¹⁾	Tensile strength/ R_m/MPa	Elongation/A₈₀/%⁽²⁾					180^o Bend test
Purpose	Grades	Yield strength/R_e/MPa⁽¹⁾	Tensile strength/ R_m/MPa	h < 0.4	≥0.4~<0.65	≥0.6~<1.0	≥1.0~<1.6	≥1.6~<2.0	b≥20mm
Commercial	SPCC	-	≥270	≥32	≥34	≥36	≥37	≥38	d=0a
Deep drawing	SPCD	≤240	≥270	≥36	≥36	≥38	≥39	≥4O	d=0a
If the yield point is not pronounced, the value applies to R_p0.2; if the yield point is pronounced, the value applies to R_el.
