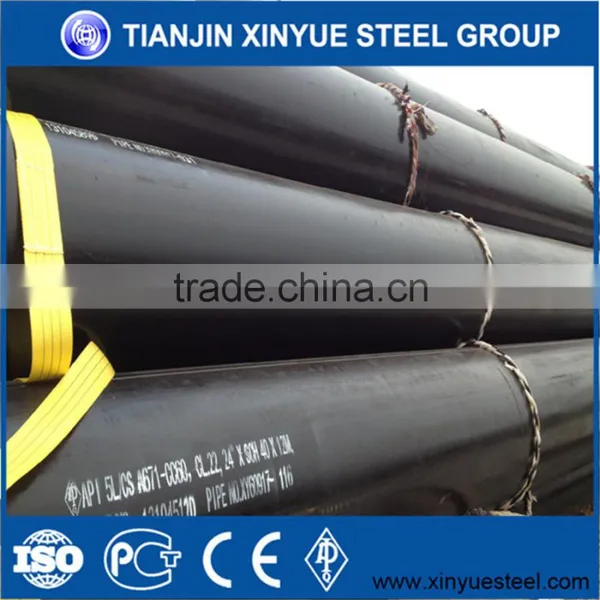

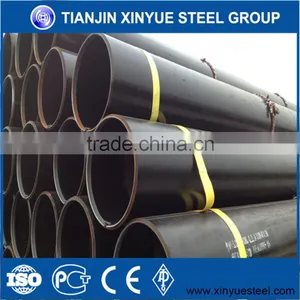

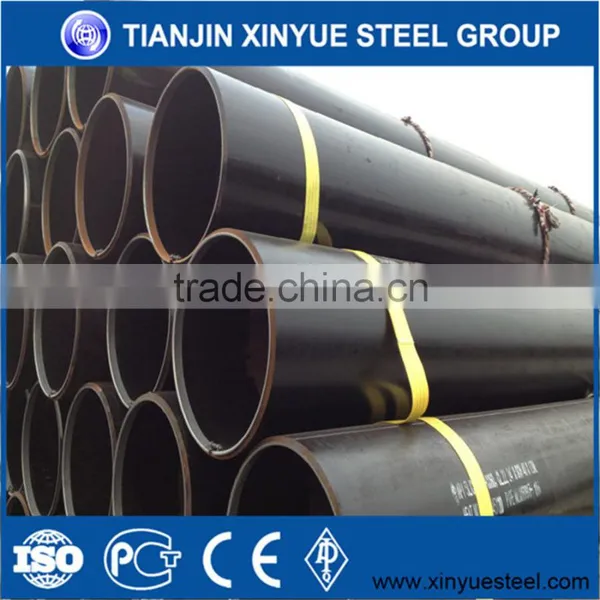

2016 ASTM A252 LSAW PIPE with good quality

2016 ASTM A252 LSAW PIPE with good quality

Introduction of Company

Introduction of Product

Process: LSAW - UO(UOE),RB(RBE),JCO(JCOE,COE)

DSAW -Double Submerged arc welded

Usage: Used for low pressure liquid delivery, such as water, gas, and oil.

Standard: API 5L, API 5CT, ASTM A53, ASTM A252, EN10217, DIN 2458, IS 3589, SY/T5037, GB/T3091, GB/T9711

Certificate: API 5L PSL1 / PSL2, API 5CT, ISO, CE

Outer Diameter: 219mm – 1820mm (8"-72")

Wall Thickness: 5.0 - 50mm

Length: 6 – 12m

Steel Grade: API 5L GR.B, X42, X46, X52, X56, X60, X65, X70

ASTM A53 GRADE A, GRADE B

EN10217: S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST5

GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555

Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Mill Test Certificate: EN 10204/3.1B

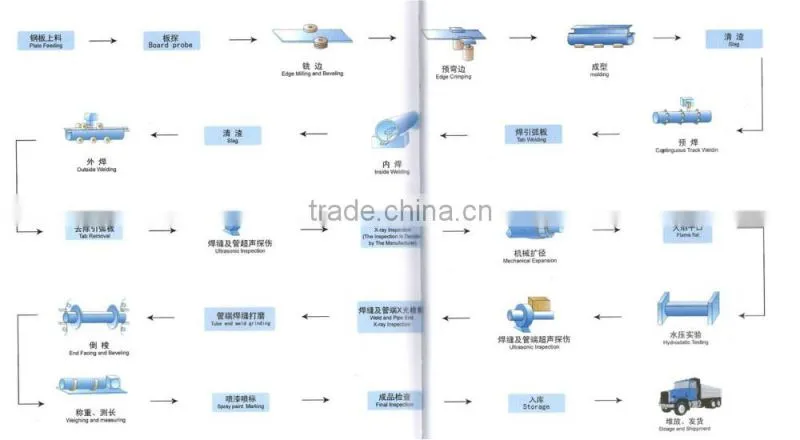

Producing Process

Project List
