2016 scaffolding pipe

2016 scaffolding  pipe

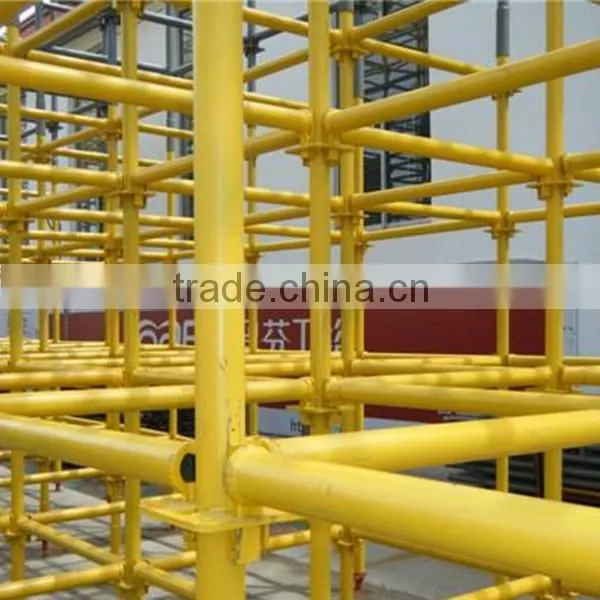

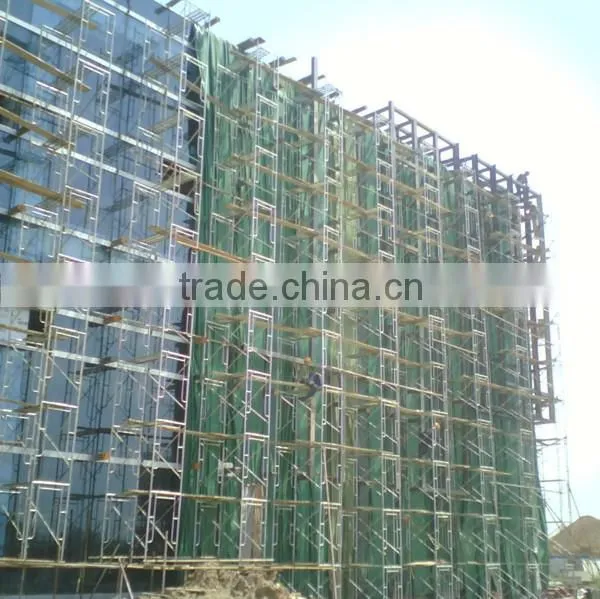

Usage: Scaffolding is a temporary structure used to support people and material in the construction or repair of buildings and other large structures. Material Storage Racks, Pallets, Hydraulic Platforms, Trusses, Columns, Purlins, Greenhouse, Stands Towers, Agricultural Equipment.

Standard: BS 1139, BS1387-1985, EN 39, EN10219, JIS G 3444

Certificate: EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT

Outer Diameter: 27mm, 38mm, 42mm, 48.3mm-48.6mm

Wall Thickness: 2.0mm, 2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.85mm, 4.0mm

Length: 5.8m, 6m, 6.4m, 6.5m, 0.3-18m

End: Square cut, Burr removed

Steel Grade: Q195, Q215, Q235, Q345, S235JR, S275JR, STK400, STK500

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black

Packing: Plastic plugs in both ends, Wrapped in waterproof paper or PVC sleeve, and sackcloth with several steel strips.

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc ), Exterior Size Inspection.

Mill Test Certificate: EN 10204/3.1B
