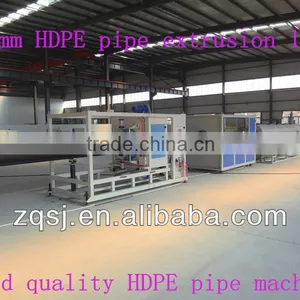

ZQSJ-500mm HDPE pipe machine manufacturing
HDPE,MDPE water supply pipe,gas pipe production line has good performance of flexibility,rigidity,creep properties resistence,environmental stress craze resistence and nice hot melting weldability.
This production line has the features of high automaticity and more convenient operation.It can produce steadily and reliably.This production line is composed of efficient extruder, handpiece,sizing cooling system,traction system,cutting system, reverse material frame and control system.It is used together with one marker line extruder.The efficient extruder adopts efficient screw,and it can transfer the bush better.The headpiece adopts screw type,it can make sure discharging uniformly and remove joint close line.The production line can realize the control of independent adjustment and consolidated adjustment.It is very convenient for operating.
Main technical parameters
Diameter range |
Extruder |
Main motor |
Capacity |
Max. speed |
16-63mm |
55/32 |
30kw |
60-100kg |
16m/min |
20-110mm |
65/32 |
45kw |
100-120kg |
6m/min |
110-250mm |
100/32 |
110kw |
250-300kg |
6 m/min |
250-450mm |
120/32 |
160kw |
350-400kg |
3 m/min |
450-800mm |
150/33 |
315kw |
850-900kg |
1m/min |
800-1200mm |
150/35 |
400kw |
900-1200kg |
1m/min |
