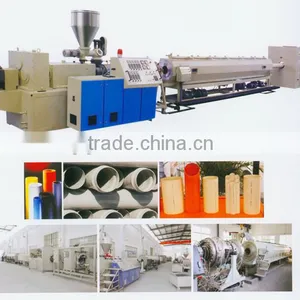

PVC multifunction pipe production line
This production line is mainly used to produce all kinds of PVC pipes,which are widely used in water supply and drainage of agriculture land and construct,and cable laying. This production line is composed of conical(parallel)twin-screw extruder, headpiece, vaccum sizing device, traction machine,cutting machine and roll-over stand.The extruder and traction machine adopts frequency control.The traction machine can be with two,three,four,six and eight claws.This production line is equipped with cutter(saw web or planetary).The production line has reliable performance and high efficacy.
Main technical parameters
|
Diameter range |
Extruder |
Main motor |
Capacity |
Max. speed |
16-50mm |
51/105 |
18.5kw |
60-100kg |
15m/min |
63-160mm |
65/132 |
37kw |
150-200kg |
6m/min |
160-250mm |
80/156 |
55kw |
350-400kg |
4 m/min |
200-315mm |
80/156 |
55kw |
350-400kg |
3 m/min |
315-630mm |
92/188 |
110kw |
700-800kg |
1m/min |
