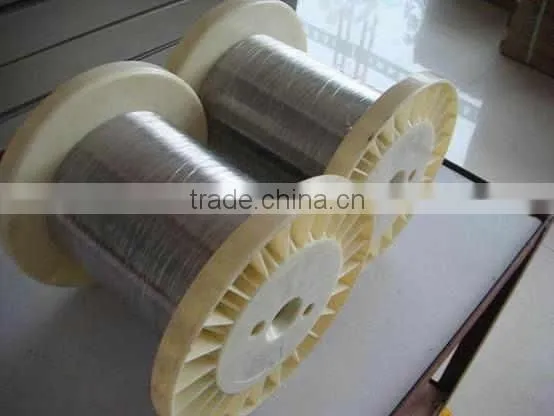

Name: ASTM B365 high purity 99.95% tantalum wire
Table 1:Chemical composition:
Chemistry % | |||||||||||||
Designation |
Chief component |
Impurities maxmium |
|||||||||||
Ta |
Nb |
Fe |
Si |
Ni |
W |
Mo |
Ti |
Nb |
O |
C |
H |
N |
|
Ta1 |
Remainder |
|
0.004 |
0.003 |
0.002 |
0.004 |
0.006 |
0.002 |
0.03 |
0.015 |
0.004 |
0.0015 |
0.002 |
Ta2 |
Remainder |
|
0.01 |
0.01 |
0.005 |
0.02 |
0.02 |
0.005 |
0.08 |
0.02 |
0.01 |
0.0015 |
0.01 |
Table2. Permissible variations in diameter for rods and wires
Diameter, inch (mm) |
Tolerance <, +/-inch (mm) |
0.010~0.020 excl (0.254~0.508) |
< 0.0005 (0.013) |
0.020~0.030 excl (0.508~0.762) |
< 0.00075 (0.019) |
0.030~0.060 excl (0.762~1.524) |
< 0.001 (0.025) |
0.060~0.090 excl (1.524~2.286) |
< 0.0015 ( 0.038) |
0.090~0.125 excl (2.286~3.175) |
< 0.002 (0.051) |
0.125~0.187 excl (3.175~4.750) |
< 0.003 (0.076) |
0.187~0.375 excl (4.750~9.525) |
< 0.004 (0.102) |
0.375~0.500 excl (9.525~12.70) |
< 0.005 (0.127) |
0.500~0.625 excl (12.70~15.88) |
< 0.007 (0.178) |
0.625~0.750 excl (15.88~19.05) |
< 0.008 (0.203) |
0.750~1.000 excl (19.05~25.40) |
< 0.010 (0.254) |
1.000~1.500 excl (25.40~38.10) |
< 0.015 (0.381) |
1.500~2.000 excl (38.10~50.80) |
< 0.020 (0.508) |
2.000~2.500 excl (50.80~63.50) |
< 0.030 (0.762) |
Table3. Mechanical requirements (annealed condition)
Rod, Diameter 0.125" (3.18mm)~2.5" (63.5mm) | |||||
Grade |
Tensile strength, psi (MPa), ≥ |
Yield strength, psi (MPa), ≥
|
Elongation in 1 inch gage length, %, ≥ |
||
RO5200/RO5400 |
25000 (172) |
15000 (103) |
25 |
||
RO5252 |
40000 (276) |
28000 (193) |
20 |
||
RO5255 |
70000 (482) |
55000 (379) |
20 |
||
RO5240 |
35000 (244) |
15000 (103) |
25 |
||
Wire, Diameter, inch (mm) | |||||
Grade |
Diameter,inch (mm) |
tensile strength,psi (MPa),≥ |
Elongation, %, ≥
|
||
RO5200/RO5400 |
0.010(0.254)~0.0149(0.379) |
35000 (241) |
10 |
||
0.015(0.381)~0.0249(0.633) |
35000 (241) |
15 |
|||
0.025(0.635)~0.124(3.14) |
30000 (207) |
20 |
|||
RO5252 |
0.010(0.254)~0.0149(0.379) |
40000 (276) |
5 |
||
0.015(0.381)~0.0249(0.633) |
40000 (276) |
10 |
|||
0.025(0.635)~0.124(3.14) |
40000 (276) |
15 |
|||
RO5255 |
0.010(0.254)~0.0149(0.379) |
70000 (482) |
5 |
||
0.015(0.381)~0.0249(0.633) |
70000 (482) |
10 |
|||
0.025(0.635)~0.124(3.14) |
70000 (482) |
15 |
|||
RO5240 |
0.010(0.254)~0.0149(0.379) |
35000 (244) |
10 |
||
0.015(0.381)~0.0249(0.633) |
35000 (244) |
15 |
|||
0.025(0.635)~0.124(3.14) |
35000 (244) |
20 |
|||
first-classs production equipment
