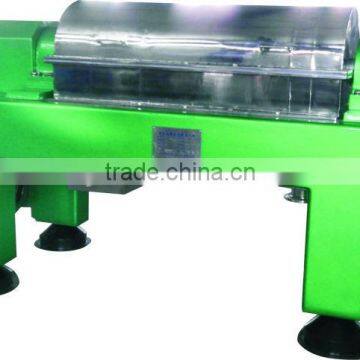

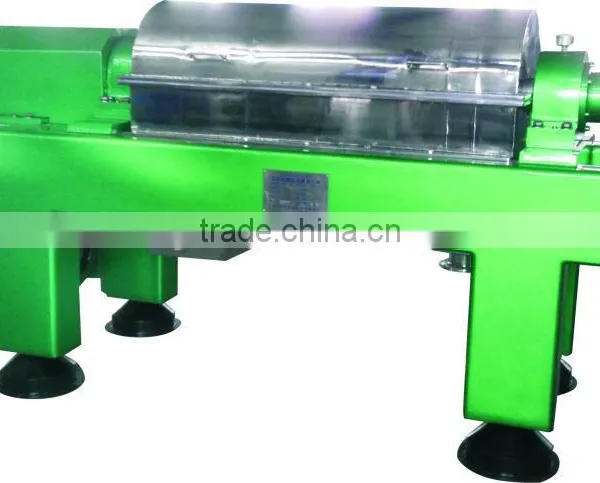

Horizontal Automaticall Discharging Decanter Centrifuge

Horizontal Automaticall Discharging Decanter Centrifuge thumbnail-1
Horizontal Automaticall Discharging Decanter Centrifuge thumbnail-2
Horizontal Automaticall Discharging Decanter Centrifuge photo-1
Horizontal Automaticall Discharging Decanter Centrifuge photo-2
US$ 15000 - 18000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Centrifuge
Product Type:
Other, Waste water and other liquid treatment
Contact Supplier Request Quote Chat Now
Liaoning Fuyi Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port or other Chinese port by Selection
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Centrifuge
Product Type Other, Waste water and other liquid treatment
Place of Origin Liaoning, China
Brand Name Fuyi Decanter Centrifuge
Model Number LW Decanter Centrifuge
Voltage 380V 50Hz or Customize by order
Power(W) 15Kw to 60Kw
Weight 1200Kg to 15000Kg
Dimension(L*W*H) 1780*1500*2030mm
Certification ISO9000:9001
Warranty 24 months
After-sales Service Provided Engineers available to service machinery overseas





The decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.

  • All parts coming into contact with the product are made of stainless steel.
  • 3-phase AC motor for controlled torque starting via frequency converter
  • Approximately 80 to 90 % of the oil is recovered.
  • Low personnel costs due to continuous and automatic operation.
  • Highest g-force for higher solids output
  • Adjustable bowl speed via VFD
  • Automatic adjustment of differential speed via VFD
  • Two motor drive
  • Belts for both primary motor and secondary motor







Model

LW300×1200

LW355×1600

LW400×1800

LW450×1800

LW530×2280

Bowl Diameter mm

300

355

400

450

530

Bowl Length mm

1200

1600

1800

1800

2280

Length to diameter ratio

1:4

1:4.5

1:4.5

1:4

1:4

Speed r/min

4200

3800

3400

3450

2700

Separation Factor

3000G

2868G

2587G

3000G

2150G

Screw differential r/min

5-30stepless adjustable

2-20stepless adjustable

2-25stepless adjustable

2-25Stepless adjustable

3-20Stepless adjustable

Motor kw

Main11,Vice 4

Main 15,Vice 5

Main 22vice7.5

Main 30 Vice 11

Main 45 vice 15

Driving

Dual motor ,frequency

Dual motor ,frequency

Dual motor ,frequency

Dual motor ,frequency

Dual motor ,frequency

Noise db(A)

≤85

≤85

≤85

≤85

≤85
