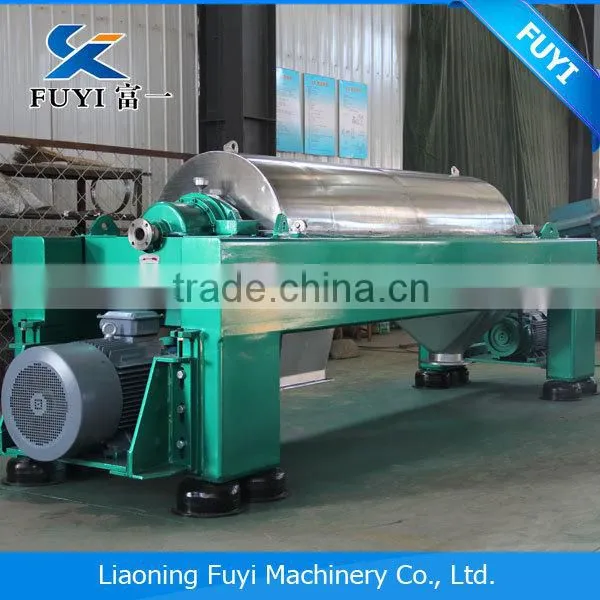

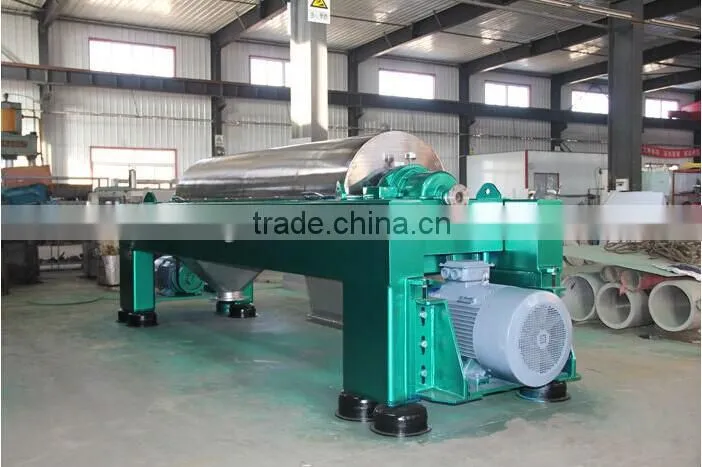

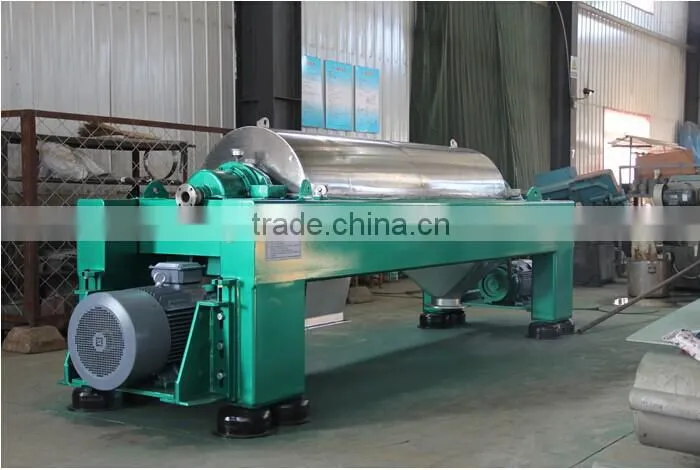

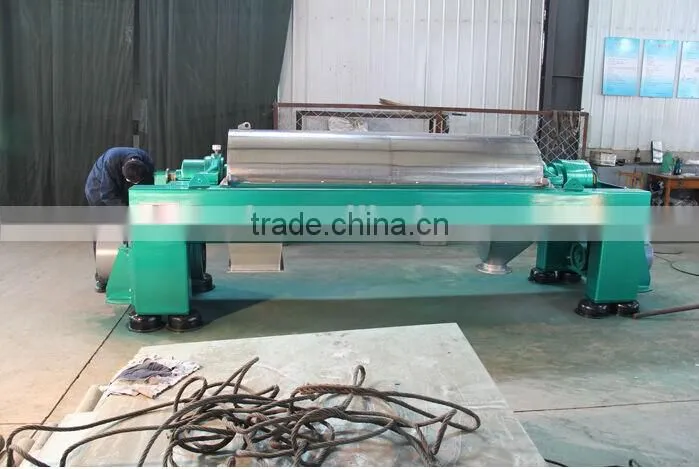

Decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size,particle shape,difference in density between solids and liquids as well as their viscosity.
l All parts coming into contact with the product are made of stainless steel
l 3-phase AC motor for controlled torque starting via frequency converter
l Approximately 80 to 90% of the oil is recovered.
l Low personnel costs due to continuous and automatic operation.
l Highest g-force for higher solids output
l Adjustable bowl speed via VFD
l Automatic adjustment of differential speed via VFD
l Two motor drive
l Belts for both primary motor and secondary
Application area
n Optimum dewatering of industrial and municipal sludge
n Optimized thickening of surplus sludge
n Partial dewatering of sludge for use in agriculture
n Treatment of industrial waste water
n Drinking water treatment
Model |
LW300×1200 |
LW300×1200 |
LW300×1350 |
Bowl Diameter mm |
300 |
300 |
300 |
Bowl Length mm |
1200 |
1200 |
1350 |
Length to diameter ratio |
1:4 |
1:4 |
1:4.5 |
Speed r/min |
4200 |
4200 |
4200 |
Separation Factor |
3000G |
3000G |
3000G |
Screw differential r/min |
1015202530 |
5-30,stepless adjustable |
5-30,stepless adjustable |
Motor kw |
7.5 |
Main11,Vice 4 |
Main 11,Vice4 |
Driving |
Single motor, frequency |
Dual motor ,frequency |
Dual motor ,frequency |
Noise db(A) |
≤85 |
≤85 |
≤85 |
Model |
LW355×1250 |
LW355×1600 |
LW355×1600 |
Bowl Diameter mm |
355 |
355 |
355 |
Bowl Length mm |
1250 |
1600 |
1600 |
Length to diameter ratio |
1:3.5 |
1:4.5 |
1:4.5 |
Speed r/min |
4000 |
3800 |
3800 |
Separation Factor |
3200G |
2868G |
2868G |
Screw differential r/min |
3-25,stepless adjustable |
10,15,20,25,30 |
2-20,stepless adjustable |
Motor kw |
Main 15,Vice 5.5 |
15 |
Main 15,Vice 5 |
Driving |
Dual motor ,frequency |
Single motor, frequency |
Dual motor ,frequency |
Noise db(A) |
≤85 |
≤85 |
≤85 |
Model |
LW400×1200 |
LW400×1800 |
Bowl Diameter mm |
400 |
400 |
Bowl Length mm |
1200 |
1800 |
Length to diameter ratio |
1:3 |
1:4.5 |
Speed r/min |
3400 |
3400 |
Separation Factor |
2587G |
2587G |
Screw differential r/min |
10,15,20,25,30 |
2-25,stepless adjustable |
Motor kw |
18.5 |
Main 22vice7.5 |
Driving |
Single motor, frequency |
Dual motor ,frequency |
Noise db(A) |
≤85 |
≤85 |
