extract biodiesel
Based on more than 30 years separation technical experience, Fuyi Machniery grew up to be one of the most famous centrifuge manufacture in China. Chinese " Tubular centrifuge separator National Standardization is drafted by our company. Nowadays Our coopertives from USA, Russia, Europe, Africa, Southeast Asia, Middle East etc.We promised supply customers the best made in China, and we committe to provide customers with cost-effective production solutions.
Biodiesel is used as a replacement for conventional diesel fuel, and thus reduces dependency on fossil fuels. Different processes are used for manufacturing biodiesel, depending on the type and quality of the raw material .An important advantage is that it can be used with no modification of the current diesel engine.
In the process of manufacturing biodiesel, Fuyi disc stack centrifuges are used as purifiers for separating glycerol water from fatty acid ester and biodiesel washing, and as Clarifiers for separating ultrafine substances from biodiesel
The disc centrifuges are also used for Biodiesel Glycerol Separation, Biodiesel Washing, Biodiesel Fine Clarification, Removal of Sterol Glucosides, Glycerol Processing and Salt Washing etc.
Maximizing centrifuge capacities and separation potential often requires processing the waste oil warm or heating the waste oil within a temperature range of 140°F to 180°F to achieve the best results.
Key features of Fuyi separator centrifuge are its ability to handle high flow rates, high solid content and high temperature process. It is a high-speed centrifuge (up to approximately 20,000 r/min) combines a high G-force from 6500 to 15800, and the separation factor is approximately 16000. It is designed to separate low percentages (
For model selection please send us the inquiry first , than we will check your fish oil data then send you the correctly centrifuge selection and quotation.

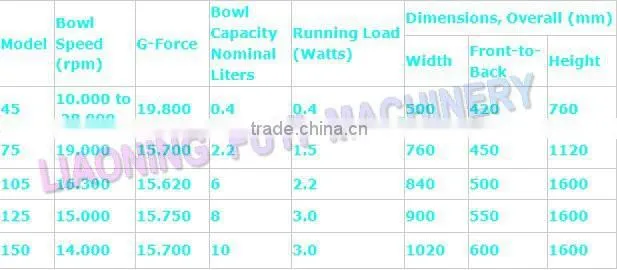

Technical Parameters
Features & Benefits
•Rapid separations
•Consistent performance
•Range of models facilitate scale-up
•Simple to set up, use and clean for minimal down-time between separations
•No replacement membranes or costly disposables
•Small footprint saves space
•Enclosed models available for ambient gas control
•For mixtures with very high solid concentration, drum centrifuge can be supplied
•Power 3-phase electric motors provide rapid acceleration and quieter operation.
•Control panel attached with drum centrifuge can be applied to online fault check: Temp. Vibration, speed, current and also can achieve remoting control and monitoring.
•Permanently-lubricated oversized head bearings maintain long service life
Tubular separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats.
The raw material is fed through the bottom, the bowl of the centrifuge rotates around its axis and forms a strong centrifugal forceand the centrifugal force separates the suspension into liquids and solid. Heavy solid is deposited on the inner wall of the bowl, and forms the sludge, then it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl.
The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.
