380v 500w high efficiency low noise blower fan 2350rpm

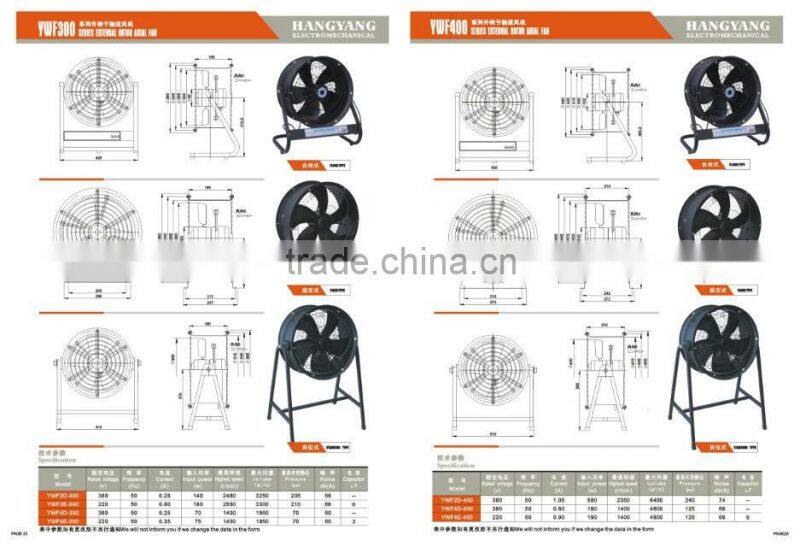

Drawing( blower fan )

Specification( blower fan  )

About the blower fan

1.blower fan Voltage: 380V

2.blower fan Material of wind wheel: cast iron or palstic

3.blower fan Flow direction:suction and blowing

4.blower fan Main parts: Case, Impeller, Motor, Protective screening.

5.blower fan Size :200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm

630mm 710mm 750mm 800mm

Model Description(blower fan)

1.YWF-External Rotor Axial Fan

2.Motor pole number:2-2poles,4-4poles.6-6poles,8-8poles

3.D:3-phases motor,E-single-phase motor

4.Blade diameter:400-blade diameter is 400mm

5.Wind code:S-induced draft,B-blow

6.Blade number:5-5blades

7.Wind leaf shape:L--falciform,F--aquare type,LT--continuum

8.Fan type:G-pipeline gaotong,A-short barrel,Fa-terms of frame short barrel,Fg-aspects box

                Gaotong,W-meshenclosure type.

Product picture( blower fan )

Overview

YWF External Rotor Axial blower Fan is a new product developed by our company by combining technology and talent advantages of many domestic colleges through repeated research and trail production. The impeller is directly fixed on the excircle to make axial size smaller. Its successful development is a key breakthrough of axial flow fan and achieves internationally advanced level.

This blower fan is featured by high efficiency, whole sealing, low noise and vibration, short axial size and maintenance prevention, so it has wider applicable fields, can replace the conventional axial flow fan, and also can be used for kitchens, industrial and mining factories and other places with serious oil, soot and dust.

Features( blower fan )

 1.29 years production experience

2. high efficiency,low noise,low vibration,short axial length and maintenance-free

3.100% copper wire

4.1 year warranty

5.CCC,CE

Competitive Advantage of external rotor

Structure of blower fan : The new outer rotor fan’s impeller is mounted directly on a rotating outer rotor’s excircle , impeller rotates together with the external rotor motor, motor’s main shaft is stationary.

Stability of blower fan : impeller and external rotor are fasten to the outer rotor’s excircle by soldering or press fitting to form a whole. No secondary assembly errors, greater reliability and stability, less vibration.

Performance of blower fan : more energy efficient, the national energy efficient products.

Noise of blower fan : impellers after aerodynamic design again to ensure that the premise of wind capacity, lower noise, high efficiency, energy saving effect is more obvious.

Cooling of blower fan : The motor is mounted in the middle of the fan impeller, better thermal performance, The motor itself has reached the maximum cooling effect and longer life.

Shape and weight of blower fan : whole elegant appearance, elaborate design, the fan’s axial length is much shorter, compact structure, saving installation space, the installation more convenient and flexible. Due to optimize the product structure design, small size, lighter weight.

About our company

The product has passed the European CE authentication and the Chinese CCC authentication.The good quality of our products has won the customer’s trusting all over the world.

Wholeheartedly provides the high quality product and the good service for the customer.

Main Marks:

Product Pertification: CCC,CE
