220V 550mm low noise attractive appearance tifosi
Drawing

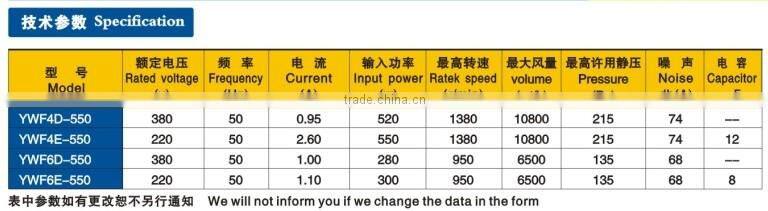

Specification
Model Description
| YWF | 6 | E | - | 550 |
1 | 2 | 3 | 4 |
1.YWF-External Rotor Axial Fan
2.Motor pole number:6--Six poles
3.E--Single--phase motor
4.Blade diameter:550--Blade diameter is 550mm
Detailed description
YWF External Rotor Axial Fan is a new product developed by our company by combining technology and talent advantages of many domestic colleges through repeated research and trail production. The impeller is directly fixed on the excircle to make axial size smaller. Its successful development is a key breakthrough of axial flow fan and achieves internationally advanced level.
These fans are featured by high efficiency, whole sealing, low noise and vibration, short axial size and maintenance prevention, so it has wider applicable fields, can replace the conventional axial flow fan, and also can be used for kitchens, industrial and mining factories and other places with serious oil, soot and dust.
Operating Environment: Elevation: below 4,000m, air humidity: less than 90ºC and ambient temperature: -25ºC~+60ºC for general products, products used in unconventional environment also can be customized.
Advantage of the external rotor
Structure: The new outer rotor fan’s impeller is mounted directly on a rotating outer rotor’s excircle , impeller rotates together with the external rotor motor, motor’s main shaft is stationary.
Stability: impeller and external rotor are fasten to the outer rotor’s excircle by soldering or press fitting to form a whole. No secondary assembly errors, greater reliability and stability, less vibration.
Performance: more energy efficient, the national energy efficient products.
Noise: impellers after aerodynamic design again to ensure that the premise of wind capacity, lower noise, high efficiency, energy saving effect is more obvious.
Cooling: The motor is mounted in the middle of the fan impeller, better thermal performance, The motor itself has reached the maximum cooling effect and longer life.
Shape and weight: whole elegant appearance, elaborate design, the fan’s axial length is much shorter, compact structure, saving installation space, the installation more convenient and flexible. Due to optimize the product structure design, small size, lighter weight.
About our company
Overview
Taizhou Hangda Electromechanical Co.,Ltd is located in a beautiful and rich coastal town Wenling Town in Zhejiang Province.Founded in 1985, and experenced 20-plus years ups and downs, the company has been developed as a high-tech enterprise integrating the R&D,manufacturing and sales of motors and fans
The company attaches great importance to scientific management and technological innovation, and has a team of highly qualified technical staff,meanwhile, it also carry out technical cooperation with University of Shanghai for Technology and Dalian University Of technology, and some other institutions of higher education.
The products of our company have passed the European CE authentication and the Chinese CCC authentication.The good quality of our products has won the customer's trusting all over the word. We will make geat efforts ceaselessly, take the customer as the guidance, regard quality as life, innovates strives for the development, wholeheartedly provides the high quality product and the good service for the customer.
Main Marks:
product certification: CCC,CE
