YWF4D-400 Best Price High Static Pressure Fans

YWF4D-400 Best Price High Static Pressure Fans thumbnail-1
YWF4D-400 Best Price High Static Pressure Fans photo-1
US$ 15 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Taizhou Hangda Electromechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Zhejiang, China
Brand Name hangyan
Model Number YWF4E-400
Voltage 380V
Power 180w
Air Volume 4800m³/h
Speed 1400r/min
Certification CCC, CE
After-sales Service Provided No overseas service provided



Product Description

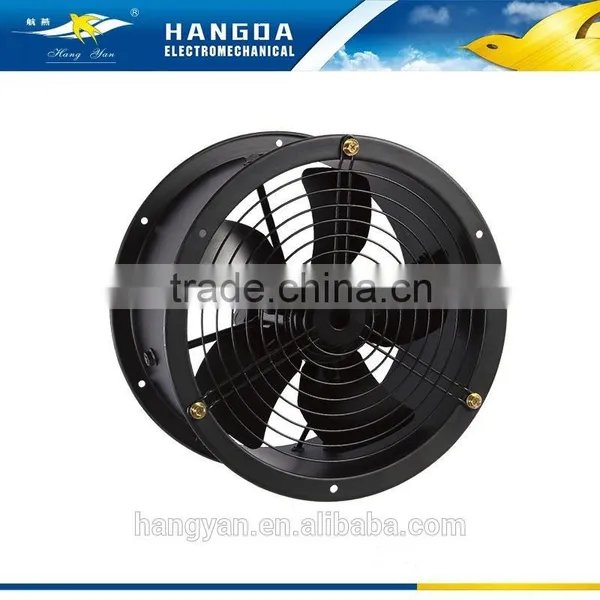

EXTERNAL ROTOR AXIAL FAN

1.Overview

YWF external rotor axial fan is a new product developed by our company by combining technology and talent advantages of many domestic colleges through repeated research and trail production.Compared with the conventional axial flow fan ,the fan has high efficiency,low noise and vibration,

compact structure and attractive appearance.the impeller is directly fixed on the excircle to make axial size smaller.Its successful development is

a key breakthrough of axial flow fan and achieves internationally advanced level.



The series of fan is featured by high efficiency,whole sealing,low noise and vibration,short axial size and maintenance prevention,so it has

 wider applicable fields,can replace the conventional axial foe fan,and also can be used for kitchens,industrial and mining factories and other places

with serious oil,soot and dust.



Operating Environment:Elevation:below 4000m,air humidity:less than 90℃ and ambient temperature:-25℃~+60℃ for general products,products used in unconventional environment also can be customized



2.Model Description

YWF 4 D(E) - 400 - S -5 L-G

    1         2        3            4            5    6    7    8



1.YWF- external rotor axial fan

2.Motor pole number:4--four poles

3.D-three-phase motor,E-single-phase motor

4.Fan blade diameter:300-blade diameter is 300mm

5.Wind code:S-induced draft,B-blow.

6.Blade blade number:5-5blades

7.Wind leaf shape:L- falciform ,F-square type,LT-comtinuum

8.Fan type:G-pipeline gaotong.A-short barrel ,FA-terms of frame short barrel,FG-aspects box gaotong,W-meshenclosure type,D-fixed type,H-standing type.

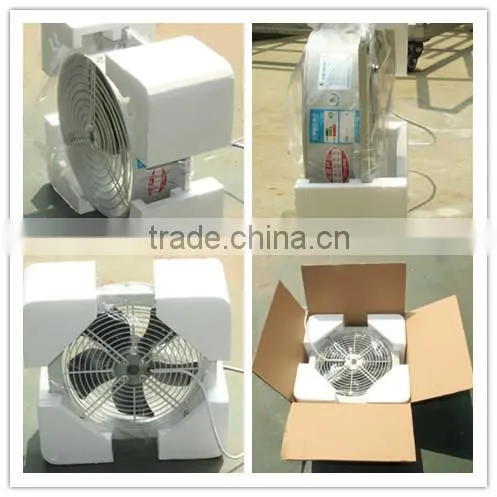

Packaging & Delivery

  1piece/carton 52*52*23.5cm

The dilivery date depend on order quantity .





Company Information

  YWF4D-400 Best price high static pressure fans

 YWF4D-400 Best price high static pressure fans

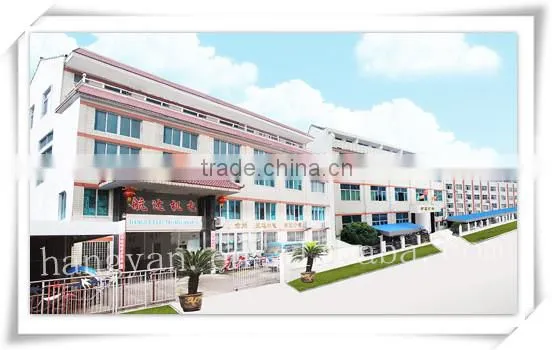

Taizhou Hangda Electromechanical Co.,Ltd

1.Founded in 1985, and experienced 29 years ups and downs.

2.The company has a team of highly qualified technical staff.

3.The company also carry out technical cooperation with University of Shanghai for Technology and Dalian University Of technology.

4.The products have passed the European CE authentication and the Chinese CCC authentication.

5.The good quality of our products  has won the customer's trusting all over the word.

6.We will make great efforts to provide the high quality product and the good service for the customer.







Factory Size (ters):

10,000-15000square meters



Factory Location:

Linao induster zone,chengnan town, wenling city,zhejiang

province,China



Number of R&D Staff:

5 - 10 People



Number of QC Staff:

3- 5 People



Contract Manufacturing:

OEM Service Offered   Buyer Label   Offered





Why Choose Us?

GIVE YOU FIVE REASONS!

1.we are a factory foused on DC motor for more than 29 years .



2.All wires are copper, seamless steel body material, before and after the cover material is aluminum



3.Every year more than 20000pcs of  fans&DC motor were exported to the other country.

4.Best production capabllity high qulity

5.Gold supplier in alibaba for 4 years
