Specifications
PF Series impactor crusher(DSMAC)1.High crush count with cubical product
2.Interchangeable wear parts
ISO9001:2008 & SGS

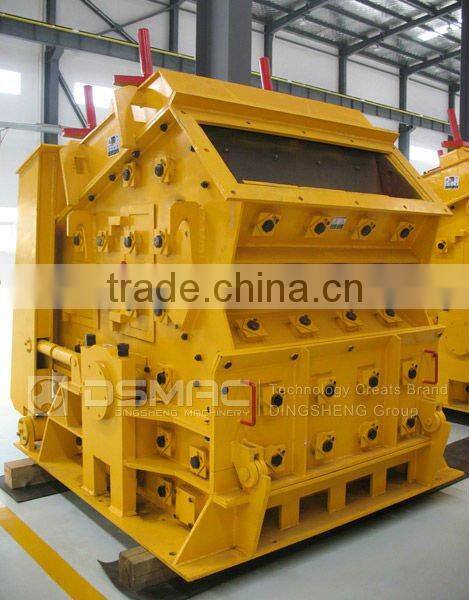

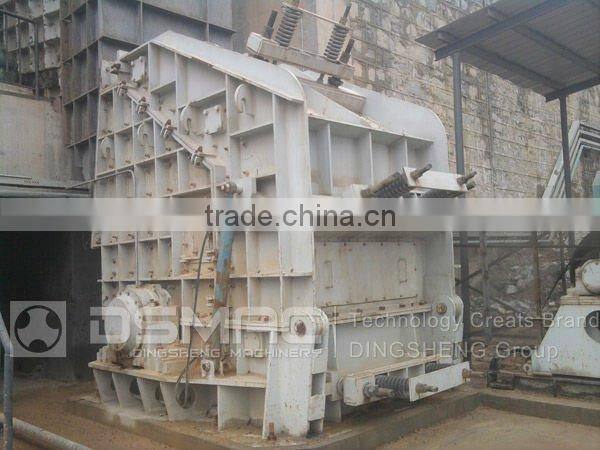

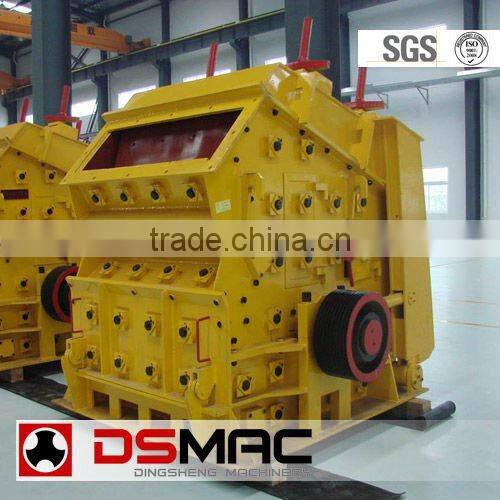

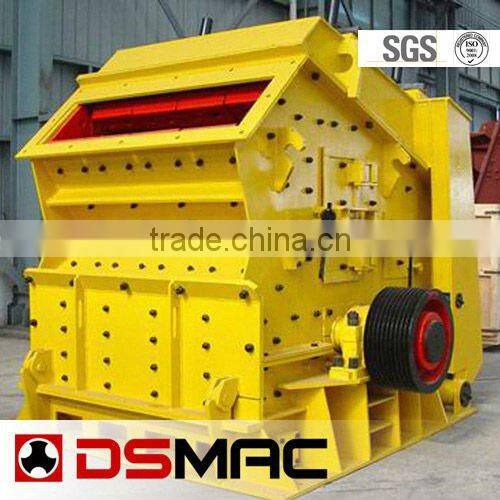

DSMAC PF Series impactor crusher
PF Series impactor crusher are ideal for:
•primary and secondary for crushing of low abrasion materials.
•both stationary and mobile processes.
•Versatile machine - suitable for quarrying and gravel pit industries, cement industry, concrete and asphalt recycling, and slag recycling
Main working benefits of PF series impactor crusher
•Quick and easy installation
•Very simple design with high mechanical reliability
•Simple to use
•Fixed or mobile applications To get Main maintenance benefits
•Easy blow bars locking device
•Wide choice of blow bars and liners
•Friendly design to easy maintenance
•Many options to improve crusher efficiency
•Safe environment working conditions
impactor crusher Features
1. Impact crusher is featured with high crushing ratio, large feed hole, adjustable discharge hole and little powdery finished product.
2. Crushing is conducted with multiple crushing cavities. The impact crusher is particularly suitable for hard rock crushing.
3. The rotor is designed with the most advanced finite-element analysis technology for local reinforcement.
4. The high-chromium plate hammer is manufactured with crystal alloy which results in its sound impact resistance and wear resistance.
5. The space between impact plate and plate hammer is convenient to adjust. The finished product is cubic-shaped.
6. Impact crusher is small in size, occupying very little space. 7. Designed with a hydraulic opening device, easy and convenient to operate, install and maintain.
8. The new wear resistant materials enable the plate hammer, impact plate and lining plate to have a longer service life.
Impactor Crusher Application

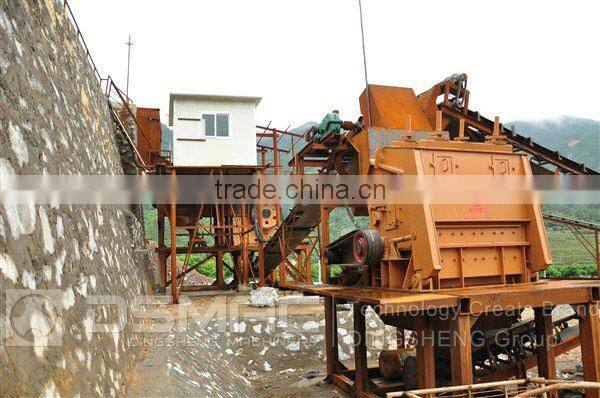

1.The impact crusher is used for crushing various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc.
2.It is used to crush coarse, medium and fine stones whose compressive strength is no more than 300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite, concrete, slag, cement block, etc.
Technical Specifications
Type | Feeding size(mm) | MaxFeeding Granularity(mm) | Rotor size(mm*mm) | Production capacity | Power(kw) | Overall Dimension | Equipment Weight(t) |
PF-1007V | 400*730 | 250 | 1000*700 | 20~40 | 55 | 2400*1560*2660 | 9.8 |
PF-1010V | 400*1080 | 300 | 1000*1050 | 60~90 | 75 | 2440*2250*2630 | 12.5 |
PF-1210V | 400*1080 | 350 | 1250*1050 | 70~120 | 132 | 2700*2340*2900 | 14.6 |
PF-1214V | 400*1430 | 350 | 1250*1400 | 80~140 | 132/160 | 2700*2690*2890 | 17 |
PF-1315V | 860*1520 | 350 | 1320*1500 | 150~200 | 220 | 3100*3280*2670 | 23 |
PF-1320V | 860*2030 | 500 | 1320*1200 | 200~280 | 315 | 3329*3205*3279 | 26 |
PF-1416V | 1052*1652 | 500 | 1420*1600 | 280~350 | 315/280 | 4905*3154*2613 | 29 |
PF-1520V | 2040*1315 | 700 | 1512*2000 | 350~450 | 400/450 | 3849*3422*3649 | 44 |
PF-1620V | 2040*1315 | 700 | 1612*2000 | 450~550 | 500 | 3949*2520*3426 | 48 |
PF-1820V | 1620*2040 | 700 | 1800*2000 | 550~700 | 630/710 | 4471*3250*4008 | 66 |
PF-2024V | 1800*2430 | 1200 | 2000*2400 | 800~1100 | 1120 | 4800*4740*4180 | 115 |
PF-2325V | 2210*2540 | 1500 | 2300*2500 | 1000-1400 | 1250/1400 |
| 158 |
