Electromagnetic Vibrating Feeder, Feeding Machine With ISO9001 From OEM Manufacture

Specifications

DSMAC Electromagnetic Vibrating Feeder
1.Capacity:100-1200t/h
2.Max feeding size:1500mm
3.Little electricity consumption

Electromagnetic Vibrating Feeder, Feeding Machine With ISO9001





Electromagnetic Vibrating Feeder Introduction



The Electric Vibrator Feeder  is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, and thus enhances crusher capacity. When operated, the Electric Vibrator Feeder can send massive and granular materials to the receiving device evenly, regularly and continuously. In the sand making production line, its even and continuous feeding crusher helps avoid feeding-hole blocking. It can also roughly screen the materials.



Electromagnetic Vibrating Feeder Application



1.The Electric Vibrator Feeder is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, and thus enhances crusher capacity.

2.It can also roughly screen the materials.

3.The vibrating feeder has been widely used for crushing and screening in the industries of mine, metallurgy, building materials, chemical engineering, beneficiation, coal mine, etc.



ZSW Electromagnetic Vibrating Feeder Features



1.The vibrating feeder features double screening and embodies the functions of dirt removing, screening and feeding. It is characterized by even feeding, excellent continuity and adjustable vibrating force.

2.Smooth operation, great feeding capacity and high efficiency.

3.Eccentric block is the vibration source which features smooth operation, low noise, little electricity consumption, excellent adjustability and causes no material clashing.



Electromagnetic Vibrating Feeder model



Zsw-100, Zsw-150, Zsw-200, Zsw-250, Zsw-300, Zsw-500, Zsw-630



Electromagnetic Vibrating Feeder Payment & shipping terms



1.Price:FOB USD 5000-99999/Set(negotiation)

2.Minimum Order Quanlit(MOQ):1 Set

3.Port:Shanghai;tianjin;qingdao

4.Packaging Details:Standard Container, Nude Packs or in Bulk.

5.Delivery Time:15-30 days

6.Payment Terms:L/C,T/T

7.Supply Ability:100 Set/Sets per Month



Electromagnetic Vibrating Feeder Specification



type	Max feeding granularity (mm)	Production capacity (t/h)	Rotate speed of spindle(r/min)	Power (kw)	Setting Obliguity (°)	Weight (kg)	Dimension (mm*mm)
Zsw-100	280	100	475~690	7.5	0	2231	3260x1620
Zsw-150	500	150	500~714	11	0	3521	3880x1690
Zsw-200	500	200	500~800	11	0	4300	4960x1680
Zsw-250	600	250	500~800	15	0	4854	4960x1800
Zsw-300	650	300	500~800	22	0	5807	4960x1850
Zsw-500	1000	500	500~800	37	0	10500	4960x1900
Zsw-630	1000	630	500~800	45	0	10679	6820x2300

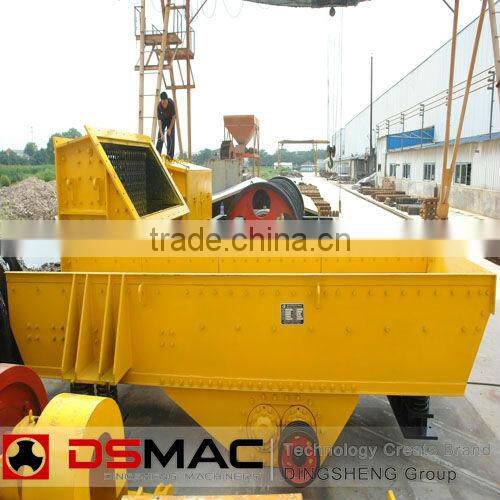

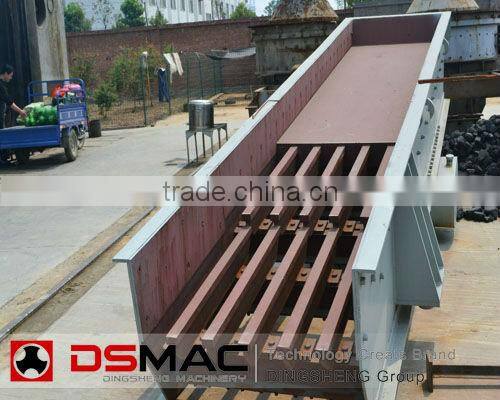

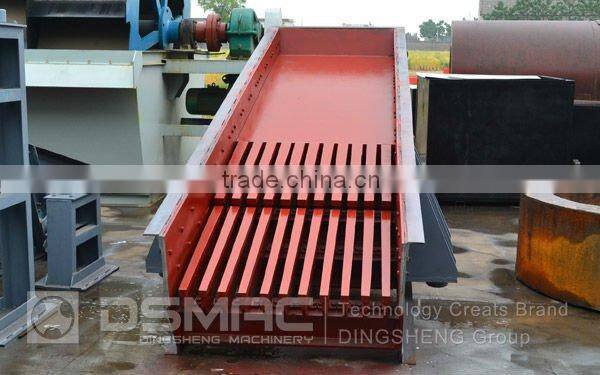

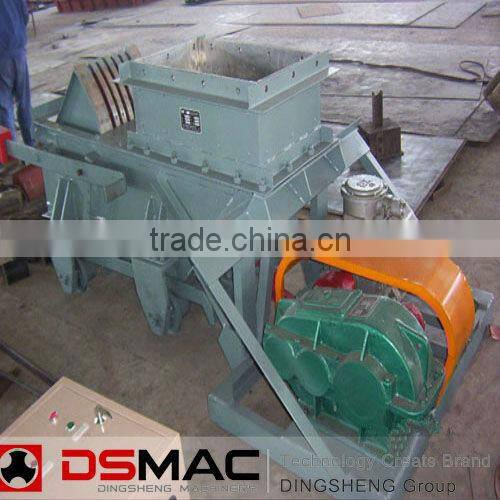

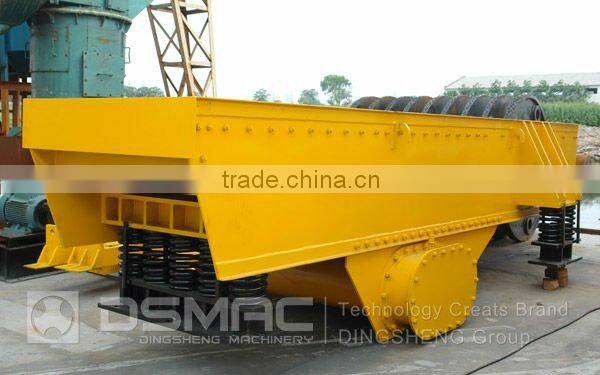

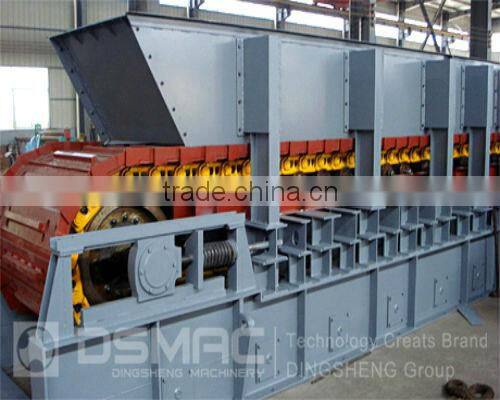

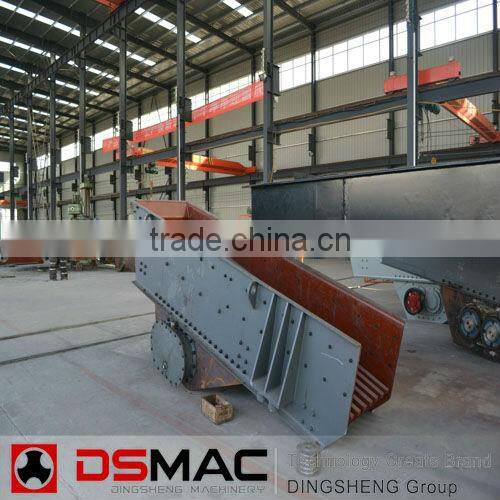

Electromagnetic Vibrating Feeder pictures
